Custom Large Industrial Copper Casting Design Guide

Custom big industrial copper castings are important parts in many types of manufacturing because they are good at conducting heat, resisting corrosion, and lasting a long time. In places where normal off-the-shelf parts can't meet strict operational requirements, these specialized metal parts play important roles in marine systems, industrial machinery, electrical infrastructure, and automotive systems. Copper castings are essential for engineering teams looking for customized solutions that improve performance while staying cost-effective over long service lives due to their ability to be made in a variety of sizes, metal compositions, and surface treatments.

Understanding Custom Large Industrial Copper Castings

Custom large copper castings use complex metalworking methods to turn raw copper and copper alloys into exactly engineered parts that can work in harsh industrial settings. Usually, these parts are bigger than the standard dimensions. They weigh several hundred pounds and have complicated shapes that need advanced making skills.

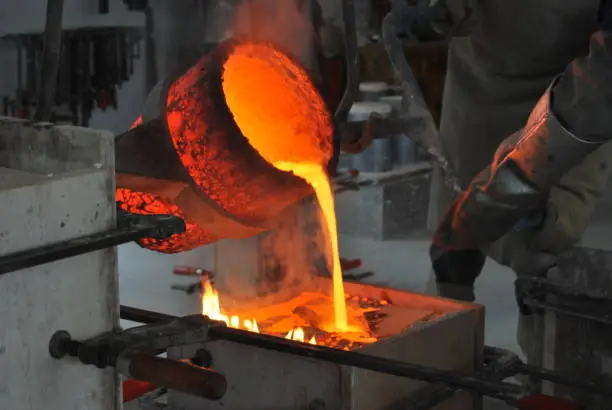

Fundamental Casting Processes

Several tried-and-true casting methods are used to make big copper parts. Sand casting is still the most common way to make large parts. It uses reusable sand molds that can handle complicated shapes while keeping the dimensions accurate. This method is great for making parts with walls that are between 3 mm and 50 mm thick, which makes it perfect for pump housings, valve bodies, and heat exchanger shells.

Investment casting, which is also called "lost-wax casting," makes parts with tighter tolerances and better surface finishes that need to be machined precisely. This method works especially well for electrical links and motor housings, where consistent dimensions have a direct effect on how well they work.

Material Properties and Alloy Selection

With an electrical conductivity of 59.6 million siemens per meter, pure copper is the best material for electrical uses. But copper alloys that mix good conductivity with better mechanical properties are often needed in industrial settings. Bronze alloys with tin and phosphorus added to them are stronger and less likely to wear down. They are good for use in bearings and marine gear. Adding zinc to brass alloys makes them easier to work with while still providing enough corrosion protection for building and plumbing parts.

Aluminum bronze alloys are the best choices for marine and offshore uses because they are resistant to seawater and have strengths that are similar to mild steel. These metals keep their shape at temperatures from -200°C to 400°C, which means they can be used in a wide range of industrial settings where temperatures are low or high.

Design Principles for Custom Large Copper Castings

To make copper castings that work well, you need to know a lot about how materials behave, how heat moves, and the limits of making. To make sure that components work well and can be made, engineering teams have to think about a lot of different things at the same time.

Structural Integrity and Wall Thickness Considerations

To avoid casting flaws and make sure the mechanical properties are right, it's important to pay close attention to how the wall thickness is distributed in large copper parts. Wall pieces that are all the same size, between 6 mm and 25 mm, usually give the best strength-to-weight ratios and the lowest risk of porosity. Stress concentrations that could cause early failure under cyclic loading conditions are avoided by gradually switching between thick and thin parts.

When engineers build parts that will be exposed to changes in temperature, they need to take into account copper's thermal expansion coefficient, which is 16.5 × 10⁻⁶ per degree Celsius. This rate of expansion is much higher than that of steel or aluminum, so mounting surfaces and clearance requirements need to be carefully thought out to avoid binding or too much stress building up.

Thermal Management and Heat Dissipation

Copper is a great material for managing heat because it conducts heat very well (401 watts per meter-kelvin). However, this feature can be a problem during the casting process because fast cooling can cause residual stresses or changes in the shape of the part. To get the desired mechanical properties across the whole casting cross-section, design teams must use the right section modulus estimates and cooling rate controls.

Quality Control and Defect Prevention

Porosity, shrinkage holes, and inclusion formation are all common flaws in casting. Porosity usually happens when gas gets trapped during filling or when molten metal isn't degassed enough. Shrinkage flaws happen when there isn't enough feed metal to fill all the holes in the casting as it hardens. Inclusion flaws happen when slag or oxide gets into the metal while it is melting or pouring.

Ultrasonic testing to find flaws inside the material, coordinate measuring machines for checking measurements, and metallographic analysis to check the structure of the grains and the alloy's make-up are some of the more advanced quality control methods used. Before parts are sent to customers, these testing methods make sure they meet certain mechanical properties and dimensional tolerances.

Comparing Copper Castings with Other Materials for Industrial Use

Choosing the right material has a big effect on how well an industrial component works, how much it costs over its lifetime, and how much upkeep it needs. When procurement teams know about comparative benefits, they can make smart choices based on the needs of their operations.

Mechanical Properties Comparison

If you compare copper alloys to steel options, they usually have average strength. Aluminum bronze alloys have tensile strengths close to 700 MPa, which is about the same as medium-carbon steels, but they are much more resistant to rust. The tensile strength of pure copper is usually around 220 MPa, which is good enough for electrical uses but not good enough for high-stress mechanical parts.

Another important thing to think about when using rotating gear is its fatigue resistance. It has been shown that copper metals work very well in corrosive environments where steel parts might crack more quickly because of environmental stress corrosion.

Corrosion Resistance and Environmental Performance

Copper naturally forms layers of protective oxides that stop it from rusting further in air. When used in marine settings, where chloride quickly breaks down carbon steel parts, this passivation property is very helpful. Copper-nickel alloys with 10–30% nickel are very good at resisting seawater and keeping biofouling from growing, which are very important for marine heat exchangers and pipe systems.

Copper is resistant to many organic compounds and acids that don't oxidize, which is useful for chemical processes. But copper doesn't work well in places with ammonia or strong acidic acids, so the application needs to be carefully looked at before the material is chosen.

Economic Considerations and Lifecycle Analysis

Copper alloys usually cost more than steel and aluminum options when it comes to the cost of the raw materials. Comprehensive lifecycle analysis, on the other hand, often shows that the total ownership costs are lower because the product lasts longer and needs less upkeep. Copper lasts a long time, which is especially helpful in marine uses where replacing parts can cost a lot and can be hard to get to, which raises the direct material costs.

Copper is also better for electrical uses because it reduces resistance losses. This is because the higher initial investment costs are recouped through operational savings over longer service periods.

Procurement Guide for Custom Large Copper Castings

To successfully buy custom copper castings, you need to carefully evaluate suppliers, come up with clear specifications, and set up strong quality control procedures. Knowing the standards for your business and what your suppliers can do is the best way to make sure that complex industrial projects go smoothly.

Supplier Selection Criteria

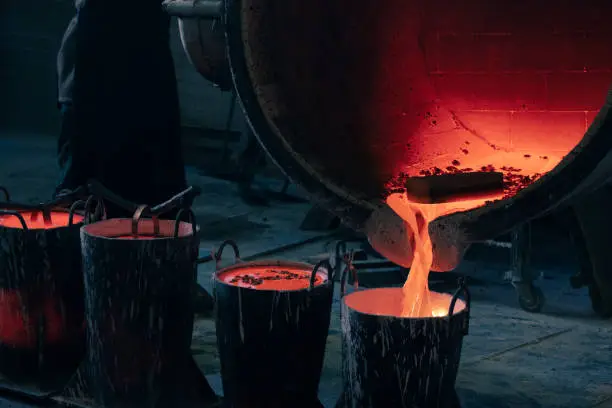

Copper casting companies that are qualified must show that they can do a few key things. Production capacity is the most important thing that needs to be met. For big component needs, established foundries usually keep melting capacities above 10,000 pounds per heat. Modern induction melting systems do a great job of keeping the temperature and alloy makeup stable, which is important for making sure that the properties of the parts are always the same.

Standards for certification are very important in the process of qualifying suppliers. ISO 9001 quality management systems make sure that production methods are always the same, and industry-specific certifications like ABS (American Bureau of Shipping) or Lloyd's Register approval make it possible to supply marine parts. For aerospace uses, you need to be certified with AS9100, which shows that you have advanced quality systems and traceability procedures.

Geographic factors affect both how much things cost and how reliable they are to bring. When it comes to communication, quality resolution, and lower shipping costs, domestic suppliers are often better than international sources. However, international sources may offer competitive pricing for big volume needs. When planning for supply chain resilience, you have to look at how available different sources are and how to handle your inventory.

When purchasing teams choose copper casting sources, these are the most important things they should look at:

• Amount of production and the ability of the equipment: Make sure that the melting capacity, machining tools, and finishing options meet the needs of the project.
• Quality certifications and industry approvals: Make sure that the company meets ISO standards and has the right certifications for the industry.
• Technical knowledge and engineering support: Look at how well they can help with design, how much they know about metals, and how much experience they have fixing problems.
• Logistics coordination and delivery performance: Look over measures for on-time delivery, packaging standards, and transportation options.
• Cost transparency and pricing structure: Look at full cost breakdowns that include materials, finishing processes, and tools.

These evaluation factors give thorough evaluation frameworks that help procurement teams find suppliers who can complete difficult copper casting projects successfully while meeting quality standards and delivery obligations.

Ordering Process and Lead Time Management

Depending on the complexity of the part and the level of finishing needed, custom copper casting projects usually take between 8 and 16 weeks from the time the order is placed until they are delivered. The first step of reviewing the plan and making the tools takes two to four weeks. The next step is making the pattern or mold, which can take another two to six weeks for more complicated shapes. The actual casting and finishing work takes an extra three to four weeks. The timeline ends with final review and packaging.

Strategies for managing large orders can have a big effect on both costs and arrival times. When foundries combine orders, they can make the most of their melting campaigns and lower the cost of each unit by making better use of their materials. To get the best total procurement costs, you need to find a mix between the costs of storage and carrying inventory and volume discounts.

Having good communication methods in place during the whole procurement process stops delays and makes sure that specifications are followed. Regular updates on progress, reviews of important milestones, and quality checkpoint checks give you a chance to deal with problems before they affect delivery dates or the quality of the parts.

Conclusion

Custom large industrial copper castings are very useful in fields like aerospace, automobile, industrial machinery, and electrical engineering where standard parts can't meet specific performance needs. Copper alloys are essential for many important uses, from marine heat exchangers to parts of the electrical grid because they have the right mix of thermal conductivity, corrosion resistance, and mechanical properties. To get the best performance and lifecycle value, procurement must carefully consider design principles, material choice, supplier capabilities, and quality assurance procedures. Knowing the pros and cons of different materials helps engineering teams make choices that balance the costs of the original project with the benefits it will bring in the long run.

FAQ

What copper alloy should I choose for large industrial castings?

Alloy selection depends on specific application requirements. Aluminum bronze provides excellent strength and corrosion resistance for marine applications. Phosphor bronze offers superior wear resistance for bearing applications. Brass alloys deliver improved machinability for components requiring extensive finishing operations. Pure copper maximizes electrical conductivity for power transmission applications.

How long does custom copper casting production typically take?

Standard lead times range from 8-16 weeks depending on component complexity. Simple geometries with minimal machining may complete within 8-10 weeks, while complex multi-cavity parts requiring extensive finishing operations can extend to 16 weeks or more. Rush orders may be accommodated with expedited scheduling but typically incur premium pricing.

How do copper castings perform in marine environments compared to steel?

Copper alloys significantly outperform steel in marine applications due to superior corrosion resistance and natural biofouling prevention properties. Copper-nickel alloys maintain structural integrity in seawater for decades while steel components may require replacement within 5-10 years. The initial higher material cost is typically offset by extended service life and reduced maintenance requirements.

What quality standards should I specify for industrial copper castings?

Specify relevant industry standards such as ASTM B584 for copper alloy castings, ASME B16.34 for valve components, or ABS certification for marine applications. Dimensional tolerances should reference ISO 8062 casting tolerance standards. Material properties should comply with applicable ASTM specifications for mechanical properties and chemical composition.

Can large copper castings be machined to tight tolerances?

Large copper castings can achieve machined tolerances of ±0.05mm or better when proper casting design and machining protocols are followed. Aluminum bronze and brass alloys generally provide superior machinability compared to pure copper. Heat treatment may be required to optimize machinability and dimensional stability for precision applications.
