Understanding the Fundamentals of Casting and CNC Machining
The Casting Process: Principles and Applications
Casting is one of the oldest manufacturing techniques, dating back thousands of years. It involves pouring molten metal into a mold and allowing it to solidify into the desired shape. This process is particularly useful for creating complex geometries that would be difficult or impossible to achieve through other methods. There are several types of casting processes, including sand casting, die casting, and investment casting, each with its own set of advantages.
Sand casting, for instance, is versatile and cost-effective for low to medium production runs. Die casting, on the other hand, is ideal for high-volume production of smaller, more detailed parts. Investment casting, also known as lost-wax casting, is perfect for producing parts with intricate details and smooth surfaces.
Casting is widely used in industries such as automotive, aerospace, and construction. It's particularly suitable for producing large parts like engine blocks, as well as complex components with internal cavities or channels.
CNC Machining: Technology and Capabilities

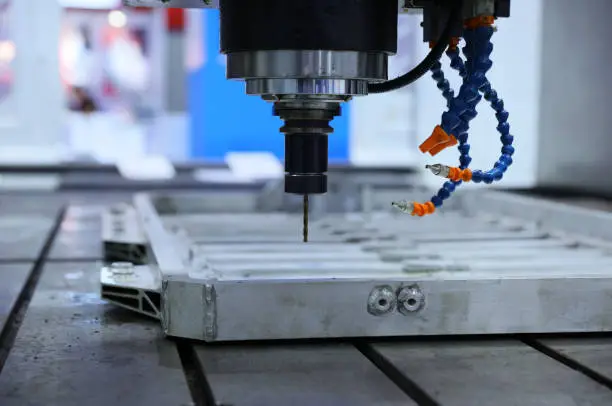

CNC (Computer Numerical Control) machining is a more modern manufacturing process that uses computer-controlled machines to remove material from a solid block, creating the desired part. This subtractive manufacturing method offers high precision and repeatability, making it ideal for producing parts with tight tolerances.
CNC machines can perform a variety of operations, including milling, turning, drilling, and grinding. These versatile machines can work with a wide range of materials, from metals to plastics and even composites. The computer control ensures consistency across production runs, making it excellent for both prototyping and small to medium-scale production.
One of the key advantages of CNC machining is its flexibility. The same machine can be quickly reprogrammed to produce different parts, allowing for rapid design iterations and customization. This makes CNC machining particularly valuable in industries like aerospace, medical device manufacturing, and custom engineering solutions.
Comparing Material Compatibility and Limitations
Both casting and CNC machining can work with a variety of metals, but they have different strengths when it comes to material compatibility. Casting is particularly well-suited for materials with lower melting points, such as aluminum, zinc, and certain copper alloys. It's also the go-to process for cast iron parts.
CNC machining, on the other hand, can work with a broader range of materials, including harder metals like steel and titanium. It's also capable of machining plastics and composites, which aren't typically suitable for casting. However, CNC machining can be less efficient for softer materials that tend to deform during cutting.
When it comes to material waste, casting generally has the upper hand. Since it's an additive process, it uses only the material needed to fill the mold. CNC machining, being subtractive, can produce significant waste material, although much of this can be recycled.
Key Factors in Choosing Between Casting and CNC Machining
Production Volume and Cost Considerations
One of the primary factors in choosing between casting and CNC machining is the production volume. Casting typically requires significant upfront costs for mold creation, but once the molds are made, it becomes highly cost-effective for large production runs. The per-unit cost decreases significantly as volume increases.
CNC machining, conversely, has lower initial setup costs but higher per-unit costs. It's more economical for low to medium production volumes or for producing prototypes. The flexibility of CNC machining also makes it cost-effective for producing parts that may require frequent design changes.
When considering costs, it's important to factor in not just the production costs, but also tooling costs, material costs, and potential post-processing expenses. For instance, cast parts often require additional finishing operations, which can add to the overall cost.
Part Complexity and Design Flexibility
The complexity of the part is another crucial factor in the decision-making process. Casting excels at producing parts with complex internal geometries, undercuts, and intricate details. It's particularly advantageous for parts that would be difficult or impossible to machine, such as those with internal cooling channels or honeycomb structures.
CNC machining, while capable of producing complex external features, is limited when it comes to internal geometries. However, it offers superior precision and surface finish compared to most casting processes. CNC machining also provides greater flexibility for design changes, as modifications can be made to the CAD file and implemented quickly without the need for new molds.
For parts with simple geometries, CNC machining often provides a faster turnaround time. However, as part complexity increases, casting may become the more efficient option, especially for high-volume production.
Precision, Tolerances, and Surface Finish Requirements
When it comes to precision and dimensional accuracy, CNC machining generally has the edge over casting. CNC machines can achieve tolerances as tight as ±0.0005 inches (0.013 mm), making them ideal for parts that require high precision, such as components for aerospace or medical devices.
Casting processes vary in their precision capabilities. While some high-end casting methods like investment casting can achieve good accuracy, they typically can't match the precision of CNC machining. Sand casting, for instance, generally has looser tolerances in the range of ±0.030 inches (0.76 mm) or more.
Surface finish is another important consideration. CNC machining can produce excellent surface finishes, often requiring minimal post-processing. Cast parts, on the other hand, may require additional finishing operations to achieve the desired surface quality. However, some casting methods, like die casting, can produce parts with good surface finishes straight out of the mold.
Practical Considerations and Future Trends
Lead Times and Production Efficiency
Lead time is a critical factor in many manufacturing decisions. CNC machining typically offers shorter lead times for small to medium production runs or for prototyping. Once a CAD file is prepared, parts can be produced quickly without the need for mold creation.
Casting, while potentially slower to set up initially due to mold creation, can be more efficient for large production runs. Once the molds are ready, parts can be produced rapidly and in large quantities. This makes casting particularly suitable for high-volume production scenarios.
It's worth noting that advances in rapid tooling technologies are reducing the lead times for casting processes. For instance, 3D printed molds can significantly speed up the prototyping process for cast parts.
Environmental Impact and Sustainability
As sustainability becomes increasingly important in manufacturing, it's crucial to consider the environmental impact of different processes. Casting generally has lower energy requirements per part for large production runs, as the energy-intensive part of the process (melting the metal) is amortized over many parts.
CNC machining, being a subtractive process, can generate significant material waste. However, much of this waste can be recycled, reducing the overall environmental impact. CNC machines also consume energy during operation, which can be a consideration for long production runs.
Both processes have areas where they can be optimized for sustainability. For casting, using recycled metals and improving mold design to reduce waste can make a significant difference. In CNC machining, optimizing tool paths to reduce machining time and implementing efficient coolant recycling systems can improve sustainability.
Emerging Technologies and Hybrid Solutions
The manufacturing landscape is constantly evolving, with new technologies blurring the lines between traditional processes. Additive manufacturing (3D printing) is increasingly being used alongside both casting and CNC machining, offering new possibilities for complex geometries and material combinations.
Hybrid manufacturing solutions, combining additive and subtractive processes, are gaining traction. For instance, a part might be 3D printed and then finished with CNC machining for improved accuracy. Similarly, 3D printed patterns are being used in investment casting, reducing lead times and costs for complex parts.
Looking ahead, advancements in simulation software are improving the predictability of both casting and CNC machining processes. This allows for better optimization of part designs and process parameters, potentially reducing waste and improving quality across both methods.
Conclusion
Choosing between casting and CNC machining requires careful consideration of various factors including production volume, part complexity, material requirements, precision needs, and cost considerations. While casting excels in high-volume production of complex parts, CNC machining offers unparalleled precision and flexibility for lower quantities. As manufacturing technologies continue to evolve, hybrid solutions and emerging technologies are expanding the possibilities, blurring the lines between traditional processes. Ultimately, the best choice depends on your specific project requirements, and in many cases, a combination of processes may yield the most efficient and cost-effective solution.
FAQs
What are the main differences between casting and CNC machining?
Casting involves pouring molten metal into molds, while CNC machining uses computer-controlled tools to cut material. Casting is ideal for complex shapes and high volumes, while CNC machining offers higher precision and flexibility.
Which process is more cost-effective?
For high volumes, casting is generally more cost-effective. For low to medium volumes or parts requiring frequent design changes, CNC machining may be more economical.
Can both processes work with the same materials?
While there's some overlap, casting is better for lower melting point metals, while CNC machining can work with a wider range of materials, including harder metals and plastics.
