The Fundamentals of Aluminum Die Casting
Understanding the Aluminum Die Casting Process

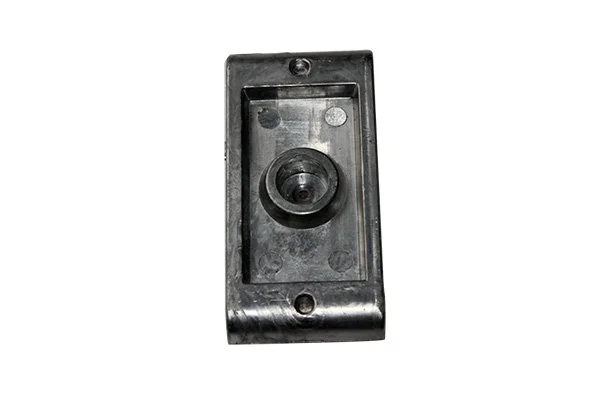

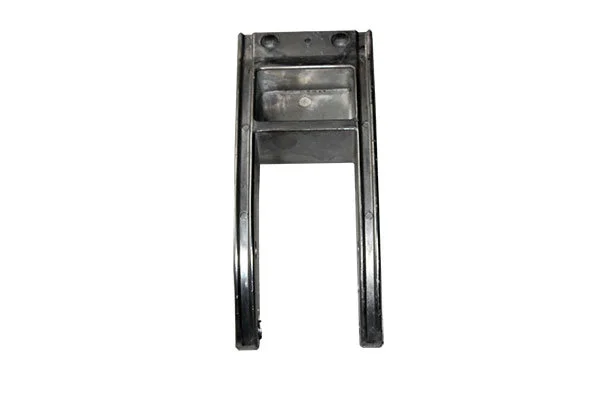

Aluminum die casting is a metal fabrication method that involves forcing molten aluminum into a mold cavity under high pressure. This process allows for the production of complex shapes with excellent dimensional accuracy and surface finish. The die casting process begins with the creation of a die, typically made from tool steel, which is designed to withstand the high temperatures and pressures involved in the casting process.
The molten aluminum is injected into the die at speeds of up to 120 mph, filling even the tiniest crevices of the mold. As the metal cools and solidifies, it takes on the exact shape of the die cavity. This rapid process allows for the production of multiple identical parts in quick succession, making it ideal for high-volume manufacturing.
Advantages of Aluminum Die Casting

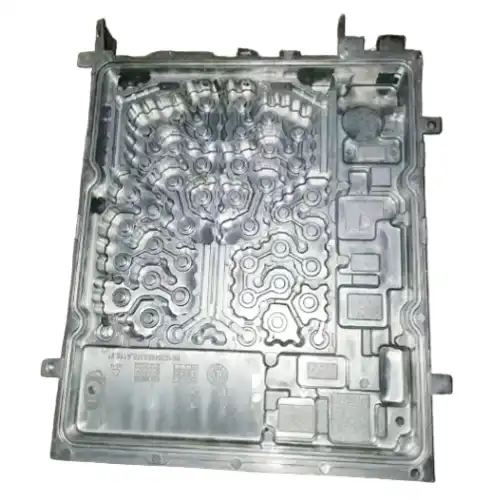

Aluminum die casting offers numerous benefits that make it a preferred choice in many industries. Firstly, it allows for the creation of complex geometries that would be difficult or impossible to achieve with other manufacturing methods. The process also provides excellent dimensional accuracy, with tolerances as tight as ±0.05mm achievable.
Additionally, aluminum die casting results in parts with smooth surface finishes, reducing or eliminating the need for secondary machining operations. The process is highly efficient, capable of producing large quantities of parts quickly and cost-effectively. Aluminum's lightweight nature, combined with its strength and corrosion resistance, makes it an excellent material for a wide range of applications.
Types of Aluminum Die Casting Machines
There are two main types of die casting machines used in aluminum casting: hot chamber and cold chamber. Hot chamber machines are typically used for lower melting point alloys and are not suitable for aluminum casting due to the high melting point of aluminum alloys.
Cold chamber machines are the preferred choice for aluminum die casting. In these machines, the molten aluminum is poured into a "shot sleeve" from an external furnace. A hydraulic plunger then forces the molten metal into the die cavity. Cold chamber machines can handle the higher temperatures required for aluminum casting and are capable of producing larger parts compared to hot chamber machines.
Preparing for Aluminum Die Casting
Design Considerations for Die Casting
The design phase is crucial in aluminum die casting. Engineers must consider various factors to ensure the part can be successfully cast. Wall thickness is a critical consideration; too thick, and the part may have internal defects, too thin, and it may not fill properly. Draft angles must be incorporated to allow for easy removal of the part from the die.
Designers must also consider the placement of parting lines, where the two halves of the die meet, and the location of ejector pins, which help remove the part from the die. The design should minimize the need for secondary operations and incorporate features that facilitate assembly if required.
Material Selection for Aluminum Die Casting
Choosing the right aluminum alloy is essential for achieving the desired properties in the final product. Common alloys used in aluminum die casting include A380, A383, and A413. Each alloy has its own set of characteristics, such as fluidity, strength, and corrosion resistance.
A380, for example, offers excellent fluidity and good corrosion resistance, making it suitable for thin-walled castings. A383 provides improved pressure tightness, making it ideal for applications requiring leak-proof components. The selection of the appropriate alloy depends on the specific requirements of the part being produced.
Die Design and Manufacturing
The die is the heart of the die casting process. It must be precisely engineered to produce parts that meet exacting specifications. Die design involves creating 3D models of the part and the die itself, considering factors such as gating systems, venting, and cooling channels.
Once designed, the die is typically manufactured using computer numerical control (CNC) machining. The die is made from high-grade tool steel to withstand the high temperatures and pressures of the casting process. Proper heat treatment of the die is essential to ensure its longevity and consistent performance over thousands of casting cycles.
The Aluminum Die Casting Process
Melting and Preparing the Aluminum
The die casting process begins with melting the aluminum alloy in a furnace. The temperature of the molten aluminum is carefully controlled to ensure optimal fluidity. Degassing is often performed to remove dissolved hydrogen from the melt, which can cause porosity in the finished casting.
Once melted and prepared, the aluminum is transferred to a holding furnace near the die casting machine. This holding furnace maintains the metal at the correct temperature until it's needed for casting.
Injecting the Molten Aluminum
When ready for casting, a precise amount of molten aluminum is transferred to the shot sleeve of the aluminum die casting machine. The injection process is rapid, typically taking less than a second. The high speed and pressure of the injection ensure that the molten metal fills every part of the die cavity before it begins to solidify.
The die is typically preheated to a specific temperature to control the solidification rate of the casting. This preheating helps prevent defects and ensures consistent part quality.
Cooling and Ejection
After injection, the die remains closed while the aluminum solidifies. Cooling channels within the die help control the rate of solidification. Once sufficiently cooled, the die opens, and the part is ejected using pins built into the die.
The ejected part is then typically quenched in a water bath to complete the cooling process. This quenching can also help improve the mechanical properties of certain aluminum alloys.
Post-Casting Operations
Trimming and Finishing
After casting and cooling, the part undergoes several finishing operations. The first step is typically trimming, where excess material, such as the gating system and any flash (thin excess material at the parting line), is removed. This trimming can be done manually or with automated equipment, depending on the complexity of the part and production volume.
Additional finishing operations may include deburring to remove any sharp edges, and in some cases, machining to achieve tighter tolerances or add features that can't be cast. Surface treatments such as polishing or texturing may also be applied to achieve the desired aesthetic or functional properties.
Heat Treatment and Surface Treatments
Depending on the specific requirements of the part, heat treatment may be performed to enhance mechanical properties. Heat treatment can improve strength, hardness, and ductility. Common heat treatment processes for aluminum die castings include solution heat treatment followed by quenching and aging.
Surface treatments may also be applied to improve corrosion resistance or prepare the surface for painting or other coatings. These treatments can include anodizing, which creates a hard, durable oxide layer on the surface of the aluminum, or chromate conversion coating, which provides excellent corrosion resistance and paint adhesion.
Quality Control and Inspection
Quality control is a critical aspect of the die casting process. Each part undergoes inspection to ensure it meets all specified requirements. Visual inspection is typically the first step, looking for surface defects or obvious dimensional issues.
More advanced inspection techniques may include dimensional measurement using coordinate measuring machines (CMMs), X-ray inspection to check for internal defects, and destructive testing of sample parts to verify mechanical properties. For critical components, 100% inspection may be required, while statistical process control (SPC) methods are often used for high-volume production.
Conclusion
Precision aluminum die casting is a complex yet highly efficient manufacturing process that produces high-quality, dimensionally accurate parts. From initial design considerations to final quality control measures, each step in the process plays a crucial role in ensuring the production of superior aluminum components. As technology continues to advance, we can expect further improvements in die casting techniques, leading to even greater precision, efficiency, and material properties. Whether you're in the automotive, industrial, or medical device sector, understanding the intricacies of aluminum die casting can help you make informed decisions about your manufacturing needs.
FAQs
What are the key advantages of aluminum die casting?
Aluminum die casting offers high dimensional accuracy, complex geometries, smooth surface finishes, and cost-effective high-volume production.
How does the choice of aluminum alloy affect the final product?
Different alloys offer varying properties such as strength, corrosion resistance, and fluidity, impacting the final product's characteristics.
What post-casting operations are typically performed?
Common post-casting operations include trimming, finishing, heat treatment, and surface treatments to enhance the part's properties and appearance.
