Custom Aluminum Die Casting Services with Finishing Options

Custom aluminum die casting services with finishing options represent a transformative manufacturing solution where molten aluminum alloy gets injected into precision-engineered steel molds under pressures exceeding 10,000 psi. This process delivers complex, near-net-shape components ideal for automotive powertrains, industrial machinery housings, electrical enclosures, and aerospace structural elements. Combined with advanced finishing techniques like anodizing, powder coating, and CNC machining, these services provide clients across North America with dimensionally accurate parts that meet PPAP documentation standards while offering superior strength-to-weight ratios and corrosion resistance essential for demanding operational environments.

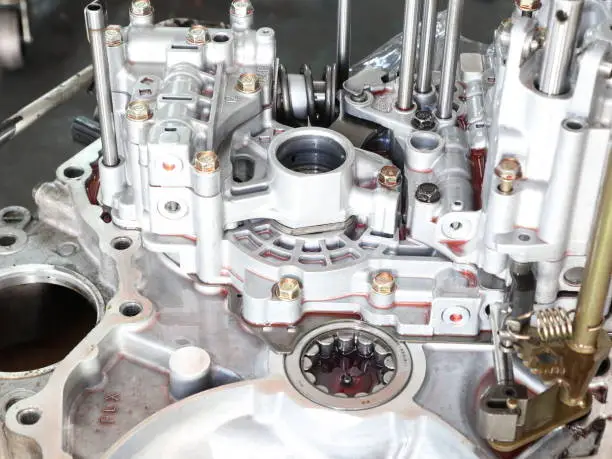

Understanding Aluminum Die Casting and Its Advantages

This new way of making accurate metal parts, called aluminum die casting, has changed how many businesses do their work. At Fudebao Technology, we've witnessed how this technology addresses critical challenges faced by engineering managers and procurement directors who want their supply chain partners to be both effective and cost-effective.

What Makes High-Pressure Die Casting Different?

Traditional sand casting or investment casting are very different from high-pressure aluminum die casting in how they work. At speeds of up to 100 feet per second, we inject molten aluminum alloys (usually A380, ADC12, or AlSi9Cu3) into steel tools that have been sharpened. When this fast injection is paired with pressures between 1,500 and 30,000 psi, it pushes the liquid metal into every tiny hole before it hardens. As a result? Parts that have wall widths as low as 1.5 mm, surface finishes that measure 1.6 μm, and measurement errors of less than 0.05 mm can be made without any extra work being done.

This feature fixes a persistent issue for tier-1 car suppliers: they need to make lightweight brackets and housings that keep their structural integrity when heated and cooled many times. When you machine a solid billet the old way, you waste more than 70% of the material as chips. But our aluminum die casting method gets you almost net-shape geometry while using more than 85% of the material.

Core Material Properties Driving Industry Adoption

Aluminum alloys have amazing physical properties that are used in building. With a density of about 2.7 g/cm³, which is about a third of that of steel or zinc, these materials have great strength-to-weight ratios that are important for battery housings in electric vehicles and structural parts in spacecraft. Because they can transfer heat from 96 to 120 W/m·K, aluminum molds are perfect for power electronics heat sinks used in 5G phone networks.

The oxide layer that forms naturally on metal surfaces makes them resistant to corrosion. We improve this resistance through controlled finishing methods. When put in marine settings or industrial chemicals, aluminum die casting parts that have been properly handled last decades longer than steel parts that have not been protected. Our tests show that anodized aluminum housings keep their IP66 rating even after being exposed to salt spray for 5,000 hours. This is an important requirement for companies that make outdoor electrical equipment.

You should also pay attention to the mechanical qualities. The tensile strength of A380 aluminum alloy, which is used a lot in our building, is about 317 MPa when it is made. By using heat treatment methods like T6 temper, we can raise this to 414 MPa while still keeping enough flexibility for parts that will be hit. The qualities listed here are exactly what industrial machinery OEMs need when they make gearbox housings and pump parts that are constantly put under stress.

Cost-Effectiveness Through Process Efficiency

Aside from its technical performance, aluminum die casting has strong economic benefits for large-scale production. Our production cycles for small connectors take 30 seconds and for big transmission housings they take 120 seconds. This is a huge improvement over sand casting processes, which take more than 10 minutes per piece. When more than 2,000 pieces are made each year, this speed directly leads to lower costs per unit.

The biggest up-front cost is the investment in the tools. Precision steel molds range from a modest amount of money for simple geometries to a lot of money for complicated multi-slide tooling. But for production runs of 100,000 rounds or more, the cost of the amortized tools is almost nothing compared to other options like cutting. When electrical equipment makers switched from CNC-machined metal plates to aluminum die casting housings with built-in fixing features and cooling fins, we helped them cut the cost of parts by 40%.

The low number of extra processes needed also helps keep costs down. For aluminum die casting parts, light deburring is usually all that's needed before finishing, while for sand castings, a lot of grinding and surface preparation is needed. Cutting down on touch work and processing time shortens wait times and improves regularity, two benefits that sourcing directors who run just-in-time supply chains really value.

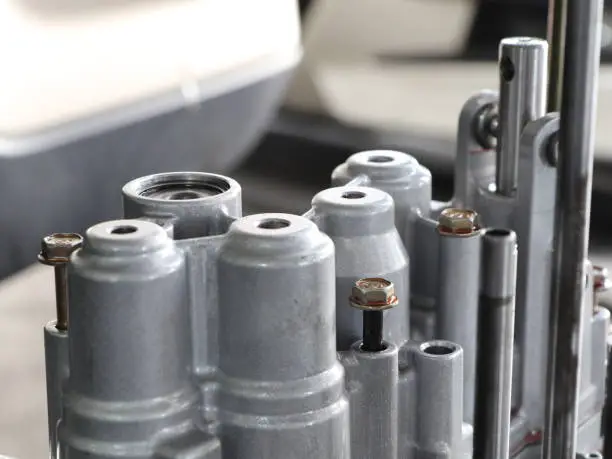

Custom Aluminum Die Casting Process and Finishing Options

To make precision metal parts well, you need to be good at both advanced process control and smart finishing choice. We've been making parts for automobile and industrial clients around the world for decades, and over that time we've gotten better at making parts that meet or exceed dimensional standards while also looking good and lasting in harsh environments.

From Mold Design Through Casting Execution

Our unique aluminum die casting method starts with mold design engineering that is done together. We work directly with your technical teams to turn 3D CAD models into production-ready tooling designs that take into account metal flow rates, draft angles, and gate locations that are best for shrinking. We use modeling software to guess where possible porosity zones might be and change where the cooling channels are placed before any steel is machined. This preventative step saves weeks of development iterations.

Once the approval of the tools is given, we move on to melting, where reverberatory ovens heat aluminum chunks to temperatures around 700°C. Accurately controlling the temperature within ±5°C is very important because not enough heat leads to incomplete cavity filling and too much temperature encourages the formation of oxides and the trapping of gases. Our furnace workers use spectrometers to keep an eye on the melt chemistry and change the levels of silicon, copper, and magnesium to keep the alloy's specs in line with your accepted material standards.

The injection process only lasts milliseconds but decides the quality of the end part. With clamping forces ranging from 280 to 1,250 tons, our aluminum die casting machines close tools halves with pressures that make sure there is no parting line flash. Machine drivers with preset shot profiles control the plunger's speed through three stages: slow movement at the start to reduce turbulence, fast acceleration to fill thin sections before they solidify too quickly, and continuous pressure during cooling to make up for volumetric shrinkage. This multi-phase injection method gets rid of common flaws that happen in less complex processes, such as cold shuts and sink marks.

Once the cooling times have been determined based on the width of the piece and the thermal properties of the alloy, ejector pins are used to remove the final castings. Parts are sent right away to stations for cutting, where single-stroke hydraulic tools cut away gates, runners, and flash. At this point, the parts are finished in terms of their dimensions, but they need to be finished to get the right surface properties and defense against rust.

Comprehensive Finishing Techniques for Enhanced Performance

Surface finishing turns useful casts into parts that are ready to be used. Your operational surroundings and aesthetic needs will determine which of the available methods you choose.

Vibratory rolling is a mechanical finishing method that uses ceramic media to round off sharp edges and smooth out surfaces. This method works great for parts that need to look clean but don't need to be coated, like frames inside machinery that don't need paint to stick to them. Shot blasting with fine aluminum oxide or glass bead media makes flat, matte surfaces that are perfect for finishing later on. It also gets rid of any oxide scale that was left over from aluminum die casting.

Chemical cleaning makes things more resistant to wear and rust. Anodizing uses electricity to create a controlled layer of aluminum oxide. The layer can be as thin as 5µm for Type II anodizing, which is used for decoration, or as thick as 25µm for Type III hard-coat standards. We've given anodized motor housings to companies that make electric cars. The ceramic-like surface keeps electricity from flowing while releasing heat and keeping battery liquid from touching the surface.

Powder coating uses polymer particles that are charged with static electricity to make protection films that melt and harden over time. Powder coating can be used for both looks and protection. It comes in almost infinite colors and textures, from high gloss to fine wrinkles. Our customers in the car industry ask us to make powder-coated engine covers that can stand up to 300 hours of salt spray testing and keep their color when the temperature inside the hood goes above 120°C.

Wet painting methods with two-part epoxy or polyurethane mixtures give industrial pump housings that are subject to aggressive fluids the best chemical resistance. These coats harden through a chemical reaction instead of the liquid evaporating. This creates cross-linked polymer networks that can't be damaged by acids, alkalis, or petroleum products.

Quality Assurance Throughout Production

Instead of depending only on final review, defect prevention starts with keeping an eye on the whole process. We use shot tracking devices that record the injection pressure, speed, and time it takes for the cavity to fill for each turn. Before parts that don't meet specifications are made, statistical process control programs look for trends that show tool wear or parameter shift.

Coordinate measuring tools with an accuracy of 0.005mm are used for dimension checking. These machines make sure that important features like mounting hole locations and mating surfaces meet print tolerances. For aerospace clients who need full traceability, we keep full production records that connect each serial number to the melt batch, machine cycle settings, and inspection results. This is proof that meets the standards for AS9100 certification.

X-ray radiography or computed tomography scanning are used for metallurgical tests to prove that the inside is sound. These non-destructive ways show subsurface pores that can't be seen with the naked eye. This makes sure that structure parts meet strength standards without having to test each one destructively. Helium mass spectrometry can find leaks as small as 1×10⁻⁹ standard cubic centimeters per second, which is very important for hydraulic lines and pneumatic valve bodies.

Design Guidelines and Technical Specifications for Optimal Die Cast Parts

The shape of a component has a big impact on how easy it is to make, how much it costs, and how well it works. When your engineering teams and our process specialists work together early in the planning process, production problems and expensive changes to tools are avoided.

Geometric Design Principles for Castability

The most important building rule is that walls should all be the same width. Different variations lead to different cooling rates, which cause shrinking, porosity, and bending. We suggest keeping the difference in wall thickness within 15% across the whole component. For most uses, this means keeping it between 2.0 mm and 4.0 mm. It takes longer for thicker parts to cool, which slows down production processes. Walls thinner than 1.5 mm are more likely to have cold shuts and incomplete fill.

When section changes are unavoidable, gradual tapers instead of sharp steps keep stress from building up and help the material solidify over time. When ribs and bosses join to main walls, the fillet radii should be at least 0.5 mm. This is because sharp internal corners cause turbulence during fill and become places where fatigue cracks start when the structure is loaded and unloaded over and over again.

Draft curves make it easier to remove parts without damaging them. For external surfaces, a draft of at least 1° is needed. For curves or deep holes, a draft of 2° to 3° is better. Because cores shrink when they cool, internal features need at least 2°. Too little draft leads to high release pressures that warp thin features and speed up tool wear, which breaks down the uniformity of the dimensions.

Dimensional Tolerance and Surface Finish Specifications

It is natural for aluminum die casting to have tighter limits than sand casting, but it can't match the precision of cutting in every way. We usually keep ±0.13mm on sizes up to 100mm and ±0.25mm on sizes up to 300mm without doing any extra work. Important parts that need to be within 0.05 mm of tolerance should be set aside for CNC post-machining, which we do in-house with HAAS high-speed machining centers.

Setting up machining datums helps keep the positions of fixing holes and matching surfaces within acceptable ranges. We don't use cast surfaces as references because they can vary slightly. Instead, we make main datums that all important features are found from. This plan makes sure that everything fits together perfectly, even if there are small differences in non-critical cast areas.

Expectations for the surface finish must match what the process can do. Depending on how well the tools are maintained, as-cast surfaces usually have a Ra value between 1.6µm and 3.2µm. After being machined, surfaces can reach Ra 0.8µm, and if you want a mirror shine, you can polish them to Ra 0.2µm. Finer surface finishes are more expensive and don't improve functionality—a useful bracket that is hidden from view doesn't need to be polished.

Material Selection and Mechanical Property Requirements

When choosing an alloy, the needs of cost, castability, and mechanical qualities must all be taken into account. Because A380 aluminum (which is the same as ADC10) is good at flowing through complicated thin-wall shapes and resisting corrosion, it is the material we suggest for most uses. A higher copper level makes something stronger but less resistant to rust, which is fine for internal parts but not so good for parts that will be outside.

The magnesium and silicon in A356 aluminum react to the T6 heat treatment, which greatly improves its tensile strength and flexibility. This metal works well for structural parts in aircraft where weight is important and maximum specific strength is needed. The heat treatment takes longer and costs more, so it's only necessary when technical research shows that the performance needs are higher than what the as-cast A380 can handle.

Specifications for tensile strength should include test standards like ASTM B85 to make sure that they are always interpreted the same way. When A380 is cast in F-temper, its minimum yield strength is about 159 MPa and its maximum tensile strength is 317 MPa, with a 3.5% extension. When designing parts that will be under a lot of tension, it's better to increase the cross-sectional area instead of selecting exotic metals, which is often a cheaper way to get the same safety levels.

Conclusion

Custom aluminum die casting services with comprehensive finishing options provide strategic advantages for procurement professionals managing complex component requirements across automotive, industrial equipment, electrical systems, and aerospace applications. The process combines material properties like exceptional strength-to-weight ratios and thermal conductivity with manufacturing efficiencies enabling cost-effective volume production. Selecting qualified suppliers requires evaluating technical capabilities, quality systems, and commercial flexibility beyond simple price comparison. Design collaboration during early development phases prevents costly tooling modifications while optimizing manufacturability and functional performance. With proper alloy selection, finishing specification, and supplier partnership, aluminum die casting components deliver decades of reliable service while reducing total ownership costs.

FAQ

What lead times should we expect for tooling and production?

This depends on how complicated the job is and how much work is already being done. From acceptance of the design to first tests, simple single-cavity molds for small parts usually take 6 to 8 weeks. Twelve to fourteen weeks may be needed for complex multi-cavity tools with complex slide motions. During the quotation process, we give you full tooling plans that include long-lead items like special steels or slide mechanisms that affect the total timeline.

How do finishing options affect corrosion resistance in harsh environments?

Powder coating protects against damage by using polymer films that are usually 60 to 100 εm thick. According to ASTM B117, high-quality powder coats can stand up to 1,000 hours of salt spray and still stick and stay the same color. For the best corrosion protection in naval and chemical industry settings, we suggest powder coating over chromate conversion primer.

Electrodeposition coating, or "e-coating," is better at covering complicated shapes, like internal passages and deep areas that are hard to reach with powder. This method works well for protecting hydraulic lines and valve bodies from rust on the inside, which is important for their functionality.

Can you accommodate small prototype quantities before committing to production tooling?

We maintain several strategies for prototype development depending on time and money limits. Soft prototype tools made of metal or steel that has already been hardened can make 50 to 500 sample parts for less money than production molds. Before investing in hardened production tools, these trial tools let you test the idea and make sure it works.

Partner with Fudebao Technology for Precision Aluminum Die Casting Solutions

To achieve success in manufacturing, you need a provider with advanced technical skills, quick response times, and a track record of dependability. We bring 30 years of specialized knowledge in aluminum die casting alloys and making precise parts to every relationship. Our fully integrated facility handles the complete process from melt preparation through surface finishing, eliminating coordination complexity while maintaining rigorous quality control. Equipment investments including high-speed machining centers, CNC lathes, and low-pressure casting machines position us to meet diverse requirements from automotive powertrains to aerospace structural components. Engineering managers seeking a dependable aluminum die casting supplier will find our combination of IATF 16949 certification, ±0.05mm machining tolerance, and dedicated customer support delivers measurable value. Contact us at hank.shen@fdbcasting.com to discuss your specific component requirements and discover how our proven capabilities can strengthen your supply chain.
