Common Defects in Copper Castings and Solutions

Copper castings are important parts for many industries, including automotive, electrical, and aircraft. However, they often have quality problems that make them less durable and less effective. Porosity, shrinkage cavities, surface irregularities, and dimensional errors are common flaws in copper castings that are caused by bad temperature control, bad gating design, or materials that are contaminated. Manufacturers can get better casting quality while cutting costs and meeting strict industry standards for precision parts by figuring out these flaws and putting focused solutions into action.

Understanding Common Defects in Copper Castings

Copper alloy parts are very important in electrical systems, heat exchangers, and mechanical units that can't be trusted to work poorly. During the casting process, however, different flaws can appear, each of which causes its own problems for both makers and end users.

Porosity and Gas-Related Defects

One of the most common problems in copper casting is porosity, which shows up as small holes or gaps in the metal structure. These flaws usually happen when gases that are dissolved, mostly hydrogen and oxygen, get stuck during solidification. The development of pores is greatly affected by things like molds that are wet, degassing methods that aren't good enough, or too much turbulent flow during pouring.

Gas porosity makes copper parts less strong mechanically and causes possible failure points in important applications. Porosity in automotive electrical housings can make them less conductive and cause them to fail early when exposed to heat cycling conditions. Parts of industrial pumps that have this flaw usually have worse pressure resistance and last less long.

Shrinkage Cavities and Hot Tears

Shrinkage flaws happen when the material isn't fed enough during the solidification process. This leaves holes or depressions on the surface. Copper metals lose a lot of volume when they cool from liquid to solid. To avoid these problems, risers need to be carefully designed and cooling rates need to be carefully controlled.

When thermal pressures are higher than the material's strength during solidification, hot tears form. These tears look like cracks and spread through the casting structure. These flaws usually show up in areas that are different thicknesses or have complicated shapes, where different cooling rates cause stress to build up inside the material.

Surface Defects and Dimensional Issues

Uneven surfaces with things like cold shuts, misruns, and sand particles make the surface look bad and make it less useful. Cold shuts happen when two streams of molten metal don't join together properly, leaving lines or weak ties that can be seen. Misruns happen when there isn't enough flexibility or when the material solidifies too quickly, stopping the mold from filling completely.

Dimensional errors affect how well parts fit together and how they need to be put together. This is especially important in precision applications where tolerances must be kept within ±0.05mm. These physical problems are made worse by pattern wear, mold distortion, and changes in thermal expansion.

Analyzing Root Causes and Mechanisms of Copper Casting Defects

By figuring out how casting flaws happen in the first place, we can make better quality control and prevention plans. During the casting process, many things come together and affect each other, making the connections between the properties of the material, the process parameters, and the quality of the end part very complicated.

Thermal and Metallurgical Factors

The way copper metals solidify has a big effect on the patterns of defects that form. Copper's high thermal conductivity makes heat move quickly, which can cause solidification to happen too soon if it's not handled properly. Temperature differences within the casting help the metal solidify in certain directions, but too many differences can lead to stress clusters and cracks.

The makeup of an alloy affects its fluidity, its ability to shrink, and its ability to dissolve in gas. Different solidification patterns are seen for bronze alloys with more tin compared to brass compositions. This means that process parameters need to be changed to reduce defects. Adding phosphorus makes the material more flexible, but it may also make it more porous if the degassing steps aren't done right.

Process Parameter Optimization

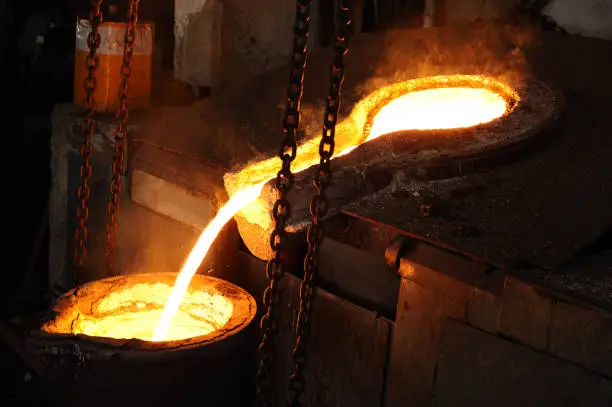

The pouring temperature has a direct effect on how the mold fills and how defects tend to form. When temperatures are too high, gases dissolve more easily and oxidation potential goes up. When temperatures are too low, flexibility goes down and cold shut risks go up. For most copper castings, the best pouring temperatures are between 1100°C and 1200°C, but this depends on the alloy's makeup and the thickness of the section.

Conditions in mold, like temperature, wetness level, and permeability, change how fast heat moves and gases escape. Molds that have been fired up ahead of time reduce thermal shock and improve the finish on the surface. Controlling the moisture properly stops steam from forming, which can cause porosity. The design of the gates affects the speed of filling and the amount of turbulence, so they need to be carefully optimized to get metal to flow smoothly and safely.

Material Quality and Contamination Control

The cleanliness of the raw material has a big effect on the quality of the casting and the number of defects that happen. Charge materials that are contaminated add foreign particles, raise the gas level, and change the properties of the alloy. Using the right flux, controlling the temperature, and degassing steps during the melting process are all important for getting rid of dangerous elements and lowering the chance of defects.

The surface quality and accuracy of the dimensions are affected by the mold materials and finishes. High-quality silica sand mixed with the right binding systems gives the concrete stable dimensions and a smooth surface. Specialized coats lower the reactions between metal and mold, improve the quality of the surface, and keep the accuracy of the dimensions.

Practical Solutions and Best Practices to Eliminate Defects

Using thorough quality control measures and the right process factors can greatly lower the number of defects and raise the quality of the casting as a whole. These solutions get to the root of the problem by using methodical methods that improve both process control and the performance of the end part.

Advanced Process Control Techniques

Controlling the temperature during the casting process is the key to avoiding defects. Using automated temperature tracking systems keeps pouring temperatures stable and reduces the amount of variation caused by human error. Controlled cooling rates, achieved by using the best mold design and heat treatment methods, lower internal pressures and stop cracks from forming.

Modern methods for degassing remove dissolved gases that help pores form effectively. Some of these tried-and-true ways are vacuum degassing, inert gas purging, and using special degassing agents that remove harmful gases before casting:

• Vacuum degassing devices lower the amount of gas by up to 80% by lowering the pressure and stirring the mixture. This makes the casting quality better for important uses.

• Techniques for purging with argon move gases out of the atmosphere while creating a safe environment for melting and filling.

• Chemical degassing agents mix with dissolved gases to make chemicals that float to the top and can be thrown away.

These methods for degassing work together to get gas levels below 0.1ml per 100g of metal, which meets quality standards for aircraft and automotive. To get consistent results across production batches, the right way to apply needs trained operators and equipment that has been calibrated.

Optimized Gating and Riser Design

Strategic construction of the gating system controls the speed of the metal flow and reduces turbulence while the mold is being filled. When compared to top filling methods, bottom gating systems keep gases and oxidation from building up. The right size of runner keeps the flow smooth, and good cleaning gets rid of oxide inclusions and other particles.

Riser systems need to feed enough to make up for the shrinking that happens during solidification. The best riser size and placement are found by using calculations based on modulus values and solidification rates. Adding insulating or exothermic covers to the risers increases the time they can be fed and makes the solidification patterns better.

Quality Assurance and Inspection Protocols

Methods of non-destructive testing find problems inside a part without damaging it. Radiographic analysis shows holes and gaps caused by shrinkage, while ultrasonic testing finds flaws that look like cracks and changes in the material's properties. Using coordinate measuring machines for dimensional inspection makes sure that engineering standards are followed.

Statistical process control keeps an eye on important factors and finds patterns before they become problems. To keep the process stable, control charts keep track of the pouring temperature, cycle times, and failure rates. Calibration of measuring tools on a regular basis and training for operators make sure that accurate data collection.

Case Studies: Successful Resolution of Common Copper Casting Defects

Real-life examples show how systematic defect analysis and targeted solutions can lead to quality gains that can be seen and measured. These examples show useful methods that engineering teams can use to solve their own manufacturing problems.

Automotive Electrical Housing Porosity Resolution

A big car supplier had problems with porosity in copper castings electrical housings that made them less conductive and caused them to fail early during thermal cycling tests. The first investigation showed that there was too much hydrogen in the molten metal. This was caused by charge materials that were contaminated with moisture and poor degassing processes.

Implementing vacuum degassing equipment and setting up strict rules for handling materials were part of the resolution plan. Charge materials were dried at 200°C for at least four hours before they were used. The amount of hydrogen in the sample dropped from 0.8ml/100g to 0.05ml/100g through vacuum degassing. During transfer operations, nitrogen cleaning stopped contamination from happening again.

Within three months of application, the results showed that porosity had gone down by 95%. The electrical conductivity went up by 12%, and the performance during temperature cycling was better than what the customer had expected. Manufacturing costs went down and customer happiness went up as the production yield went from 78% to 96%.

Industrial Pump Component Shrinkage Elimination

A company that makes industrial tools had trouble with bronze pump housings that shrank, which made pressure testing less accurate. The analysis showed that thick parts were not fed enough and that the risers were not working well because heat was lost during solidification.

Changes to the process included redesigning the risers using modulus estimates and adding exothermic sleeves to keep the feeding temperature steady. Preheating the mold to 250°C lowered temperature gradients and helped the material solidify in a way that pushed it toward the risers. Optimizing the gates got rid of hot spots and made the spread of metal better.

These changes got rid of shrinkage flaws in 98% of casts and cut material use by 15% by making the risers work better. Pass rates for pressure testing went from 65% to 99%, always meeting customer requirements. Because there was less need for rework and checking, the production cycle time went down by 20%.

Why Choose Quality Copper Castings for Your Manufacturing Needs?

Copper alloys have special qualities that make them necessary for specific uses that need better conductivity, resistance to rust, and control of temperature. Knowing about these benefits helps procurement workers make smart choices that improve the performance of parts and the efficiency of production.

Superior Material Properties and Performance

Copper casts are very good at conducting electricity; in high-quality alloys, they can reach up to 95% of the values of pure copper. Because of this, they work great in electrical parts, motor housings, and power transfer equipment that needs to be energy efficient. Values of thermal conductivity higher than 200 W/mK allow heat to be removed effectively in tough situations.

Corrosion resistance in marine and industrial settings makes the service life much longer than with steel options. Natural antimicrobial traits make them useful in medical and food processing settings as well. Mechanical properties, such as resistance to fatigue and impact toughness, help ensure reliable performance under cyclic loading situations.

Versatile Applications Across Industries

Copper is lightweight and good at moving heat around in engine parts and electrical systems, which makes it useful in automotive uses. When corrosion protection and dimensional stability are essential, copper castings are used in industrial machinery for pump housings, valve bodies, and bearing parts.

For transformer parts, motor housings, and renewable energy tools, the electrical and energy industries depend on copper castings. Copper's ability to block electromagnetic waves and its ability to be precisely shaped are used in aerospace uses to make avionic parts and structural elements.

Manufacturing Flexibility and Customization

Modern methods for making copper can handle both small-scale prototypes and large-scale production. For precise applications, investment casting gets a better surface finish and tight tolerances, while sand casting can make complex geometries and large parts.

Rapid prototyping lets you try and confirm your design before you commit to making production tools. Advanced machining centers can do extra work like drilling, cutting, and precise finishing to make sure that all of your needs are met. Different types of surface treatment, such as plating, sealing, and heat treatment, improve performance for certain uses.

Quality licenses like ISO 9001, AS9100, and IATF 16949 make sure that standards are met. Tracking systems keep track of materials from the time they are received as raw materials until they are inspected for quality control. This gives important applications the paperwork they need.

Conclusion

Successful copper casting operations require comprehensive understanding of defect mechanisms combined with systematic implementation of prevention strategies. Porosity, shrinkage, and surface defects can be effectively eliminated through proper temperature control, optimized gating design, and rigorous quality assurance protocols. The case studies demonstrate that targeted solutions addressing root causes achieve significant quality improvements while reducing manufacturing costs. Investing in advanced process control, employee training, and quality systems provides long-term benefits through improved yield rates and customer satisfaction. Copper castings continue to offer unique advantages for specialized applications, making defect prevention strategies essential for maintaining competitive advantage in demanding markets.

FAQ

What are the most effective methods to prevent porosity in copper castings?

Vacuum degassing represents the most reliable method for porosity prevention, reducing gas content by up to 80% through controlled pressure reduction. Proper material drying at 200°C for minimum four hours eliminates moisture contamination, while inert gas purging during melting operations prevents atmospheric gas absorption. Controlled pouring techniques and optimized gating systems minimize turbulence that can entrap gases during mold filling.

How do sand casting and investment casting compare for copper components?

Sand casting provides cost advantages for larger components and shorter lead times, typically requiring 2-3 weeks for prototype production. Investment casting achieves superior surface finish with Ra values below 3.2μm and tighter dimensional tolerances within ±0.1mm. Investment casting costs approximately 20-40% more but eliminates secondary machining operations for many applications, making it economical for complex geometries requiring precision.

What techniques prevent corrosion in marine copper casting applications?

Nickel-aluminum bronze alloys provide superior corrosion resistance in seawater environments, with corrosion rates below 0.025mm/year under normal conditions. Proper alloy selection based on chloride exposure levels ensures long-term performance. Cathodic protection systems and specialized coatings provide additional protection for critical components. Regular inspection and maintenance schedules help identify potential issues before significant damage occurs.

What are typical lead times for small batch copper casting orders?

Small batch orders typically require 3-4 weeks for sand casting processes, including pattern preparation and quality inspection. Investment casting lead times range from 4-6 weeks due to additional tooling requirements and longer processing cycles. Rush orders can be accommodated with expedited scheduling, reducing lead times by 30-40% with appropriate planning. Material availability and complexity factors may extend timelines for specialized alloys or intricate geometries.

Partner with Fudebao Technology for Premium Copper Casting Solutions

Zhejiang Fudebao Technology combines decades of metallurgical expertise with cutting-edge manufacturing capabilities to deliver superior copper castings that exceed industry standards. Our comprehensive facilities include advanced melting systems, precision CNC machining centers, and rigorous quality control laboratories that ensure dimensional accuracy within ±0.05mm tolerances. We serve as a trusted copper castings supplier for automotive OEMs, industrial equipment manufacturers, and aerospace companies requiring certified components with complete traceability documentation. Contact our engineering team at hank.shen@fdbcasting.com to discuss your specific requirements and experience the reliability that has made us a benchmark enterprise in precision metal casting.

References

Campbell, J. "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design." Butterworth-Heinemann, 2015.

American Foundry Society. "Copper Alloy Casting Design Guidelines and Quality Control Standards." AFS Technical Publication, 2019.

Beeley, P.R. "Foundry Technology: A Source Book of Information on the Theory and Practice of Copper and Bronze Casting." Newnes-Butterworths, 2017.

International Copper Association. "Copper Casting Defects: Identification, Causes and Prevention Methods." ICA Technical Report, 2020.

Brown, J.R. "Foseco Non-Ferrous Foundryman's Handbook: Copper Alloys and Casting Processes." Butterworth-Heinemann, 2018.

Society of Manufacturing Engineers. "Advanced Copper Casting Technologies and Quality Control Systems." SME Manufacturing Engineering Handbook, 2021.
