What are the Common Defects in Aluminum Die Casting and How to Prevent Them?

Defects in aluminum die casting can make parts less useful and output less efficient. Porosity, cold shuts, misruns, shrinkage holes, hot tears, and surface flaws like blisters and flash are all common problems. These flaws are caused by not filling the cast enough, using the wrong metal chemistry, having inconsistent temperatures, and tooling wear. It is important to understand these types of defects because they have a direct effect on the accuracy of measurements, the strength of the structure, and the way something looks. This is especially true in demanding areas like automobile powertrains, industrial equipment, and telecommunications infrastructure where dependability cannot be compromised.

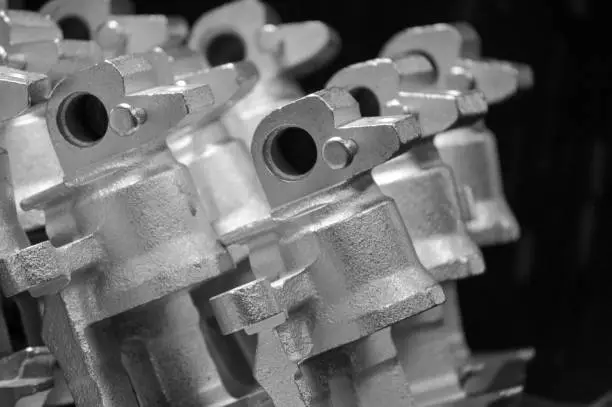

Understanding Common Defects in Aluminum Die Casting

As someone who works closely with engineering teams in both the automobile and industrial sectors, I've seen how even small flaws in the casting can lead to expensive production delays and guarantee claims. By understanding the unique traits of each defect type, procurement managers and quality teams can set reasonable limits and important quality standards with suppliers.

Porosity and Gas Entrapment

Porosity shows up as tiny holes or bubbles stuck inside the cast part. It makes the mechanical qualities weaker and makes it harder to use in pressure-tight situations. This flaw usually happens because hydrogen gas is dissolved in liquid aluminum or air gets trapped during high-speed injection. Engine blocks and gearbox housings are especially at risk because internal porosity may not show up until machining processes reveal gaps below the surface, which requires expensive repair. X-ray checking and pressure testing are two ways to find things, but they add time and money to the production process.

Cold Shuts and Misruns

Cold shuts happen when two metal streams don't join together properly, leaving behind obvious seam lines that concentrate stress. Misruns happen when metal hardens before it reaches the edges of a hole that hasn't been fully filled. Both flaws are caused by either not enough input pressure, cooling too quickly, or bad gate design. In structural parts like electrical housings and automobile frames, these breaks make it much harder for the part to hold weight, and they can even cause the part to fail completely in use.

Shrinkage Cavities and Hot Tears

During solidification, shrinkage holes appear when areas of dense mass don't get enough molten metal, leaving empty spaces inside. Hot tears are flaws that look like cracks and are caused by heat stress during solidification. They usually show up where two pieces meet or where ribs meet. Heat sinks for 5G infrastructure and EV battery housings, which have complex shapes and walls with different thicknesses, are especially likely to be damaged. These flaws make the structure less reliable and make it harder to control temperature, both of which are very important for parts that work in harsh environments.

Surface Irregularities: Blisters and Flash

Blisters show up as raised areas on the surface of aluminum die casting that are caused by gas expanding under the casting skin. This usually happens when there is too much mold lube or too much moisture exposure. Flash is made up of thin metal fins that run along the splitting lines. This can happen when dies are worn out or there isn't enough pressing force. These surface flaws are not only unsightly for frames and architectural hardware used in consumer electronics, but they also make secondary cutting and assembly more difficult, which raises the overall cost of production.

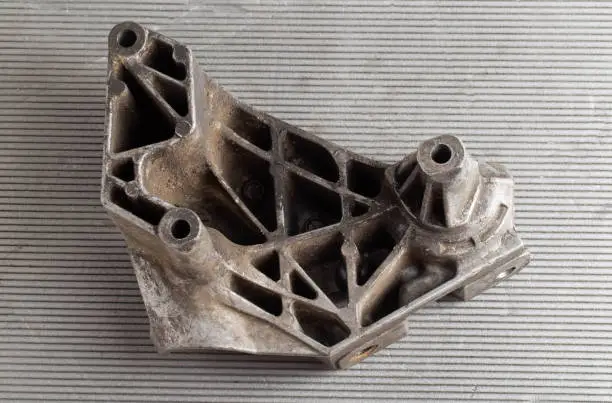

Root Cause Analysis of Aluminum Die Casting Defects

To fix problems, you need to look at all the variables in the process in a planned way. Fudebao Technology has worked with tier-1 car suppliers for decades, and our method is based on finding root reasons instead of just treating symptoms.

Mold Design and Tooling Considerations

The position of the gate has a big impact on how metal flows and the order of fills. When gates are not in the right place, they cause uneven flow, which traps air and causes cold shuts. Not enough releasing stops gas from escaping, which directly leads to cavities. Design of the cooling duct affects the regularity of solidification; uneven cooling rates cause hot tears and changes in the shape of the material. Even though modern modeling tools can help predict these problems, it still takes experienced tooling engineers to make designs that are both easy to make and don't have any defects.

Process Parameter Optimization

A fine balance is maintained between the injection speed, the metal temperature, and the die temperature. Too much speed causes turbulence and gas to get trapped, while not enough speed causes the mixture to solidify too quickly. When metal temperatures are below the ideal limits (usually between 650°C and 700°C for A380 alloy), viscosity rises, which causes misruns. On the other hand, warming makes gas absorb and shrink. Die temperatures need to be carefully managed—too cold makes the surface flaws, and too hot makes the cycle take longer and makes it easier for things to stick. Statistical process control helps keep these factors in a small range of values.

Material Selection and Handling

The nature of the alloy directly affects how likely it is to have defects. The ADC12 and A380 metals are very easy to make, but their porosity resistance changes depending on how much silicon and copper they contain. Adding magnesium makes the material stronger, but it also makes it more likely to tear when it gets hot. How the materials are handled is also important. For example, proper degassing lowers the amount of hydrogen that is released, and contamination from recovered metal adds oxide inclusions. Reliable providers have strict rules about the materials they accept and constantly check the quality of the melt.

Equipment Condition and Maintenance

Extreme mechanical and heat stress is put on die casting tools while they work. Worn plungers make the pressure uneven, and shot tubes that are damaged let air in. Die wear changes the size of the cavities and makes flash more likely. Regular repair plans, which include rounds for die inspection and refurbishment, stop quality from slowly going down. At Fudebao Technology, our plant uses high-precision die casting machines that are connected to real-time tracking systems. This allows for predictive maintenance that cuts down on unexpected downtime and defect spikes.

Proven Strategies to Prevent Common Defects

To stop defects from happening in aluminum die casting, you need to be strategic about design, process control, material management, and adopting new technologies. These methods make yield rates and dimensional accuracy better in ways that can be measured.

Advanced Mold Design Techniques

Using flow simulation software during the planning part of the tool finds possible defect areas before the steel is cut. Conformal cooling channels, which follow the shape of the part instead of cutting in a straight line, help remove heat evenly, which lowers the chance of hot tears and warping. Vacuum-assisted aluminum die casting systems remove air from holes before injection. This greatly reduces porosity in important uses like aircraft parts that need to be checked without damaging them.

Statistical Process Control Implementation

Setting up control models for important factors like metal temperature, injection pressure, and cycle time lets you find process drift early, before problems show up. IoT sensors in real-time tracking systems give constant input, automatically pointing out deviations that need user attention. With this data-driven method, quality management goes from reactive inspection to predictive control, and for high-capability processes, scrap rates drop from the average of 3–5% in the industry to below 1%.

Material Quality Assurance

When you specify primary aluminum alloys instead of secondary sources, the chances of chemical differences and contamination are lower. Dissolved hydrogen levels can be lowered to acceptable levels below 0.15 ml/100 g by using nitrogen or argon cleaning in degassing processes. Spectroscopic study of each melt batch makes sure that the chemistry of the metal meets the requirements. These strict controls on the materials are the basis for uniform mechanical features and castings that don't have any flaws.

Technology Integration and Automation

Robotic part extraction, automatic trim presses, and in-line dimensional checking tools are all parts of modern aluminum die casting cells. Machine learning systems look at patterns of defects in the past and suggest changes to the process that will solve new quality trends before they happen. At Fudebao Technology, our high-speed machining centers and CNC lathes move smoothly from casting to precision finishing, keeping tolerances of ±0.05mm and preventing damage from handling between processes. With this combined method, you can get everything you need in one place, from molten metal to finished parts that are ready to be put together.

Comparing Aluminum Die Casting Defects with Alternative Casting Methods

When buying teams know how defect profiles change between production processes, they can make better sourcing decisions that meet the needs of specific applications. Sand casting makes parts with naturally rough surfaces and wider size tolerances, but it can handle large, complicated shapes better and doesn't require as many expensive tools as die casting. There are risks of porosity, but they show up in different ways because solidification rates are slower. Investment casting produces a smoother surface with more detailed details, but each piece costs a lot more, so it can only be used for high-value, low-volume parts like turbine parts.

Zinc and magnesium die casting each have their own benefits compared to aluminum die casting. Zinc's lower melting point makes it easier on tools when it comes to heat, and magnesium's mass (1.8 g/cm³ compared to 2.7 g/cm³ for aluminum) makes it even lighter. But aluminum is the best choice because it has a higher strength-to-weight ratio, is a good thermal conductor (96–120 W/m·K), and doesn't rust. This makes it ideal for use in car engine parts, electrical housings, and telecommunications equipment to remove heat.

Plastic injection molding gets rid of worries about gas porosity and hot tears, but it can't match the mechanical qualities, thermal performance, or EMI blocking abilities of metal. Metal casting solutions are needed for parts that need to be strong at high temperatures, like compressor housings and engine parts in industrial machinery, even though they have more complicated requirements for managing defects.

Selecting Reliable Aluminum Die Casting Partners for Defect-Free Production

Choosing a supplier has a big effect on the quality of the product and the security of the supply chain in the long run. Certification standards like ISO 9001 and IATF 16949 provide basic quality system checks, but to really see how well a system works, you need to look at it more closely. Look over the supplier's methods for keeping track of defects, corrective action plans, and metrics for ongoing growth. Ask for detailed process flow models that show where to check and how to use statistical control. Check the repair plans for dies and the state of the equipment. Machines that are worn out can't produce consistent quality, no matter how skilled the operator is.

A study of the supplier's portfolio shows that they have worked on similar projects before. Automotive OEMs need suppliers who know how to do measurement system analysis, process capability studies, and control plan creation for parts that need PPAP paperwork. Traceability systems and advanced inspection tools, such as coordinate measuring machines and computed tomography cameras, are needed in aerospace uses. Suppliers of parts for the electrical industry should know how to do conductivity tests and corrosion resistance proof.

Custom casting services are much better than stock parts in many ways. Customized gate designs, alloy choices, and secondary processes all help solve flaw problems that are unique to each application. At Fudebao Technology, we work with engineering teams during the design process, using our knowledge of mold development to make parts that are easier to cast while still having important useful features. Time-to-market is sped up and costs are saved by using this consultative method.

Long-term relationships based on open communication lead to changes that keep happening. Sharing data on failure analysis and feedback on production lets providers improve processes to address your unique quality concerns. When companies work together to make new metals or surface processes, they gain a competitive edge. Our direct partnerships with global names like HAAS and ESS show that we are dedicated to long-term success rather than one-time deals.

Conclusion

In conclusion, to keep aluminum die casting mistakes from happening, you need to pay close attention to mold design, process efficiency, material quality, and equipment repair. If you know where porosity, cold shuts, shrinkage, and surface irregularities come from, you can use proactive prevention techniques instead of reactive sorting. Defect management has gone from being an art to a science thanks to tools like advanced simulations, statistical process control, and automatic inspection systems. Your parts will meet strict requirements for use in automotive, industrial, electrical, and aircraft settings if you choose providers who have a history of defect prevention, a modern technology infrastructure, and a commitment to continuous improvement. Your products will be reliable if you have good relationships that are based on openness and technical cooperation.

FAQ

What are the most frequent defects encountered in high-pressure die casting?

First on the list of defects are porosity, then cold shuts, and finally surface flash. Porosity is especially bad for thick parts and parts with lots of complicated internal pathways. In multi-gate systems, cold shuts tend to gather at places where flows come together. Flash gets worse as dies wear down and is a bigger problem during large production runs. These problems can be avoided by doing regular process checks and planning ahead for repair.

How quickly can modern inspection methods detect casting defects?

Real-time X-ray tools built into production lines find internal cracks in 15 to 30 seconds per part. This lets all parts be inspected without slowing down production. During part separation, automated recognition systems find surface flaws right away. Laser scanning for dimension checking is quick and gives a lot of quality information before the parts leave the casting cell. With these tools, quality control goes from sampling in batches to tracking all the time.

Does alloy chemistry significantly influence defect probability?

Alloy makeup has a big effect on how likely it is to have defects. A higher silicon percentage makes the fluid flow better, which lowers the risk of misrunning but raises the likelihood of pores. Copper additions make things stronger, but they also cause hot cracking in shapes that don't shrink much. Iron content changes how well dies bond and how smooth the surface is. These trade-offs are balanced by experienced suppliers who choose alloys that are best for both casting performance and the end mechanical qualities your application needs.

Partner with Fudebao Technology for Defect-Free Aluminum Die Casting Solutions

To make great products, you need sources who know that quality starts long before the metal goes into the die. Fudebao Technology uses high-tech tools like low-pressure casting machines, high-speed machining centers, and precision CNC lathes, along with full process control that covers everything from melting to finishing the surface. Our method for preventing defects includes simulating mold flow, keeping an eye on the statistical process, and carefully checking the materials. This way, we can regularly meet the ±0.05mm standards needed for precision parts in cars and medical equipment housings. Our engineering team is ready to talk about your unique quality needs, whether you need custom aluminum die casting parts for transportation, internet infrastructure, or industrial equipment. Get in touch with hank.shen@fdbcasting.com to find out how our casting and cutting services can help you avoid delays caused by defects and lower your total cost of ownership.

References

NADCA (North American Die Casting Association). "Product Specification Standards for Die Castings Produced by the Semi-Solid and Squeeze Casting Processes." 2019 Edition.

Kaufman, J. Gilbert, and Rooy, Elwin L. "Aluminum Alloy Castings: Properties, Processes, and Applications." ASM International, 2004.

Bonollo, F., Urban, J., Bonatto, B., and Botter, M. "Gravity and Low Pressure Die Casting of Aluminium Alloys: A Technical and Economical Benchmark." La Metallurgia Italiana, 2005.

Campbell, John. "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design." Butterworth-Heinemann, 2015.

Zhao, Haijun, and Wang, Furui. "Defect Formation Mechanism and Control Method of Aluminum Alloy Die Castings." Materials Science Forum, 2018.

Hu, X.G., Zhu, Q., Midson, S.P., Atkinson, H.V., Dong, H.B., Zhang, F., and Kang, Y.L. "Blistering in Semi-Solid Die Casting of Aluminum Alloys and Its Avoidance." Acta Materialia, 2017.
