Surface Finish Defects in Aluminum Die Casting Explained

Surface finish flaws in aluminum die casting are one of the biggest quality problems that sourcing and engineering teams have to deal with right now. There are flaws in cast parts that affect both how they look and how well they work. These flaws can be hardness, holes, or small cracks on the surface. In High-Pressure Die Casting (HPDC), liquid aluminum metal is poured into precise steel molds at pressures above 1,500 psi. This makes parts that are very close to net-shape and have very accurate measurements. But even small changes in process settings can cause expensive surface flaws that hurt the dependability of the assembly and the efficiency of processing further down the line.

Understanding Surface Finish Defects in Aluminum Die Casting

Common Types of Surface Defects

When we look at aluminum die casting parts, we see the same types of defects over and over again. Porosity shows up as tiny holes in the material, either below or on top of the surface. These holes are usually not noticeable until they are worked on again. Cold shuts show up as straight lines where two metal streams don't join together totally during hole filling. Flash—thin stretches of material along splitting lines—means that the injection pressure is too high or the tools are worn out. Die soldering lines, which happen when liquid metal sticks to the surface of the die, make raised flaws that need expensive repair. Each type of defect shows a different problem with the process, which smart buying teams can use to judge a seller.

Impact on Component Performance

Surface flaws are more than just a visual issue. In car engine housings, rough surfaces catch dirt and other contaminants that speed up corrosion when the temperature changes. Electrical covers with open surfaces are less good at blocking EMI and RFI, which puts sensitive electronics in 5G infrastructure at risk. Mirror-like finishes are needed on aerospace parts not only to save weight through thin-wall designs, but also to stop stress gathering places that could lead to fatigue cracks. When procurement pros understand these performance links, they can set realistic finish specs that are in line with the needs of the end use instead of making up standards on the spot.

Measurement and Classification Standards

A normal way to measure surface roughness in the industry is to use the factors Ra (arithmetic average) and Rz (maximum height), which are usually given in micrometers. The North American Die Casting Association (NADCA) sets guidelines for how to classify things, with Grade A meaning "superior cosmetic finish" and Grade D meaning "functional surfaces requiring secondary finishing." Optical comparators and handheld profilometers make it possible to quickly check what is being made, finding problems before they cause whole production runs to waste materials. Including these measurable criteria in RFQs helps procurement teams make sure that sellers provide objective proof of finish quality instead of subjective assessments.

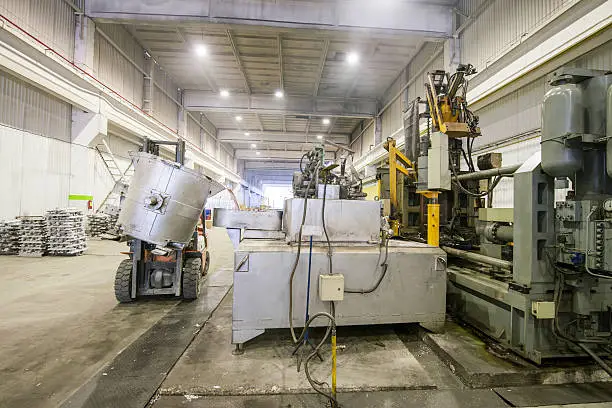

Root Causes of Surface Finish Defects in Aluminum Die Casting

Process Parameter Variations

Controlling temperature is the most important thing that determines the quality of the surface in aluminum die casting. When liquid aluminum alloy enters the die hole at temperatures below the ideal range (for A380 alloy, this is usually between 650°C and 720°C), it solidifies too quickly, causing cold shuts and surface laminations. Injection velocity mismatches cause turbulence that holds air and creates holes in the ground below. How densely the cavities are packed depends on how long the holding pressure is applied. If the pressure is too low, small holes are created, and if it's too high, flash happens. Working with tier-1 car providers, we've seen that changes in temperature of just 10°C can cause defect rates to rise from 2% to 8%, which has a huge effect on production costs and delivery times.

Material and Alloy Considerations

Choosing the right alloy has a big effect on how the casting works. ADC12, which has 11% silicon, is better at flexibility for thin-wall sections than A380, but it has more shrinking porosity. Contamination from reclaimed aluminum adds iron and manganese that make the surface less smooth. There is gas in liquid metal—mainly hydrogen taken from the air—that causes blowholes to appear when the metal hardens. Reliable providers use spectroscopic analysis and degassing rotors to keep the chemistry within tight limits. This makes sure that there is consistency from batch to batch, which is important for long-term supply deals.

Tooling Condition and Maintenance

Degradation of the die surface leads to a chain of finish issues. Heat checking is the name for the cracks that form on die faces after being heated over and over again, leaving their mark on the surfaces they cast. When you don't use enough release agent, aluminum will bond to the hole walls and build up layers that change the shape of the part. High-speed metal flow causes erosion at gate areas, which makes surfaces that touch those areas rougher. Coating systems like PVD (Physical Vapor Deposition) nitriding make dies last a lot longer, but during facility audits, procurement professionals should check with suppliers about die upkeep plans and replacement processes to make sure that output quality stays the same.

Step-by-Step Process to Diagnose and Address Surface Finish Defects

Systematic Defect Identification

Accurate recording is the first step to a good evaluation. Visual inspection with controlled lighting shows any changes in the surface texture, and checking the dimensions with a CMM (Coordinate Measuring Machine) shows if the flaws affect the working limits. Metallurgical cross-sectioning shows the depth and range of underlying pores. We suggest that procurement teams ask for first-article inspection reports that include measurements of the surface finish at important features. This way, they can set standard goals before production starts to ramp up. This method is based on data, which gets rid of subjective disagreements and sets clear standards for acceptance.

Root Cause Analysis Framework

By looking into process data, you can find trends that connect defects to certain situations. Shot tracking systems keep track of injection velocity patterns, which show when a machine isn't working right. Thermal imaging finds differences in die temperature that lead to different rates of solidification. Material tracking links groups of defects to specific amounts of alloy. One company that makes industrial equipment that we helped cut down on porosity flaws by 40% after connecting events with humidity levels in the melting area, which led to the installation of dehumidification systems. This level of analytical rigor tells the difference between willing and able providers.

Corrective Action Implementation

Strategies for fixing problems are very precise in going after the root reasons that have been found. To get rid of porosity caused by turbulence, adjusting the tool velocity curves makes the metal move more smoothly. Increasing the die warming temperatures stops metal from freezing too soon at the edges of the cavities. Better opening designs get rid of trapped gases before the metal hardens. In the case of making EV battery housings, changing the overflow wells cut surface blistering from 12% to less than 1%, which saved a lot of money on cutting after casting. Purchasing managers have more faith in sellers when they show organized problem-solving methods that are backed up by statistics.

Comparing Aluminum Die Casting Surface Finish with Other Manufacturing Methods

Aluminum Die Casting Versus Sand Casting

The biggest difference between these methods is how smooth the surface is. When aluminum die casting, Ra values are usually less than 3.2 μm right from the mold. Sand casting, on the other hand, usually gives Ra values between 12.5 and 25 μm and needs a lot of cutting. Permanent steel dies in HPDC make surfaces that are the same every time, even after millions of cycles. Sand molds, on the other hand, break down after just one use, causing differences in the grain pattern. When buying pump housings or gearbox parts, procurement teams should know this trade-off: die casting requires more money to buy tools, but the finish is more consistent for orders over 5,000 units per year, while sand casting is still cheaper for prototypes and low-volume production.

Material Comparisons: Magnesium and Zinc Die Castings

Surface finishes are different because of how the alloy is made. Because magnesium metals have lower melting points, they decrease thermal stress in dies, but they also oxidize more easily, which can cause surface films. Zinc die casts are very smooth because they use lower casting temperatures and have great mold filling properties, often hitting Ra 1.6 μm. Aluminum is a good compromise because it has good strength-to-weight ratios for use in cars and spacecraft while still having good surface finishes when the process is controlled properly. When engineers choose materials, they should think about how these finish options will work with the materials' practical needs and how they will be exposed to the environment.

Alternative Processes: Extrusion and Forging

Aluminum extrusion makes surfaces that are very consistent, but it can only make cross-sections that stay the same, which makes it unsuitable for complicated housings with features inside. Forging creates better grain flow for high-stress situations, but it takes a lot of work to make the surfaces smooth, which takes away from the near-net-shape benefit of die casting. Die casting is the only method that can combine complex geometry with a good surface finish. This makes it especially useful for structures with integrated mounting bosses and ribs. When purchasing professionals look at different ways to make something, they should think about how much the whole process costs. For example, die casting often cuts out a lot of extra steps that other methods need.

Best Practices and Design Tips to Minimize Surface Finish Defects

Optimizing Part Geometry

Different cooling rates that cause surface flaws in aluminum die casting can't happen if the thickness of the walls is constant. We suggest that thickness differences between neighboring parts stay within 20% and that changes happen gradually instead of all at once. For most aluminum alloys, a nominal wall thickness of 2.5 to 4 mm strikes a good balance between mechanical strength and the ability to fill molds. Sharp corners catch gases and create stress clusters. Requiring radii of at least 0.5 mm improves both the quality of the casting and the performance of the structure. When these design principles are used early on in the product development process, expensive changes to the tools that are used after sample tests show finish problems are avoided.

Effective Gating and Venting Design

Location of metal entry has a huge effect on surface quality. Putting gates in the largest parts makes sure that the cavities are packed correctly, and using more than one gate for big parts stops cold shuts at flow convergence points. Venting holes, which are usually 0.05-0.13 mm deep, let air out before the metal moves forward without letting aluminum leak. Overflow wells catch the first rough flow and oxide films, keeping them from becoming part of the finished surfaces. During the quotation phase, procurement teams should ask for mold flow simulation results to make sure that providers have looked at and improved these important features before cutting steel.

Selecting Qualified Die Casting Suppliers

Suppliers can do more than just show tools. Systematic quality control is shown by certification to IATF 16949 for suppliers to the car industry or AS9100 for aircraft uses. Statistical control is shown by process capability indices (Cpk values above 1.33) for surface finish factors. On-site inspections should look at how to maintain dies, how to handle materials in a way that keeps them from getting contaminated, and how to use real-time process tracking systems. Suppliers with a lot of experience keep finish standard files that are linked to alloy-process combinations. This speeds up the start of new projects. Partnering with such skilled makers lowers the risk of buying things and guarantees the stability of the supply chain in the long run.

Conclusion

The complex relationships between process factors, material properties, and tooling conditions lead to surface finish defects in aluminum die casting. When choosing a provider and making sure the quality is good, procurement workers and engineering teams that know how defects work, how to diagnose them, and how to fix them have a lot more options. These organized models, which cover everything from flaw classification to root cause analysis to design optimization, help you make smart choices that balance your need for a good finish with your budget. As more businesses need lightweight, high-performance parts, it's important for manufacturing companies to be able to control the surface finish.

FAQ

What Causes Porosity Defects in Aluminum Die Casting?

Porosity comes from three main places: gas getting trapped during rough hole filling, hydrogen absorbing from air moisture in molten metal, and shrinkage gaps from not giving enough during solidification. Gas porosity looks like a sphere, but shrinking porosity has forms that aren't round. Controlling the injection speed, following the right degassing steps, and finding the best holding pressure all greatly lower the chance of porosity. Suppliers should show that they can test for gas level and give porosity inspection results for important parts in aluminum die castings.

How Does Temperature Control Influence Surface Quality?

The temperature of the molten metal changes how it flows and how it solidifies, which has a direct effect on the finish. When temperatures are below the ideal range, things freeze too soon, which leads to cold stops and surface lines. Too high of temps makes die soldering harder and speeds up the wear on tools. Die temperature control is also very important. Not preheating enough causes thermal shock and surface flaws, while warming makes cycle times longer and lowers output. Advanced providers use multizone die temperature controls that keep the temperature stable within ±5°C.

Can Design Modifications Mitigate Defect Risks?

Of course. Using uniform wall thickness, the right draft angles (usually 1-3 degrees), and large curves gets rid of the flow patterns that cause surface flaws. Moving gates away from areas that are important for looks and adding smart venting keep air from getting trapped. Simulation-driven design validation finds possible flaw areas before making the tools, which cuts down on development costs and time to market.

Partner with Fudebao Technology for Superior Aluminum Die Casting Quality

Zhejiang Fudebao Technology gets rid of problems with surface finish by providing excellent aluminum die casting combined production services that include melting, casting, precision machining, and surface treatment. Our building has high-speed machining centers, CNC lathes, low-pressure casting tools, and advanced die casting equipment that can provide accuracy of ±0.05mm for uses in aircraft, industrial equipment, and cars. We are a reliable aluminum die casting company that works with well-known international names like ESS energy storage systems and HAAS automation. We offer one-stop delivery from blank to finished product, with full PPAP paperwork and traceability. Get in touch with hank.shen@fdbcasting.com to talk about your unique finish needs and find out how our tried-and-true quality systems make sure that all of our parts are uniform and free of defects.
