Sand Casting Steel Pump Body: Manufacturing Process Overview

For many years, sand casting has been one of the most popular and effective ways to make steel pump bodies for many different types of industries. Specialized sand mixtures are used in this foundry method to make exact molds that shape molten steel into complex pump body shapes. The sand casting method is very flexible and can be used to make strong pump parts that are used in many important ways in aerospace, industrial gear, power generation equipment, and vehicle cooling systems. Understanding this way of making things helps procurement professionals make smart choices about where to buy things, making sure that the parts work well and don't cost too much.

Understanding Sand Casting for Steel Pump Bodies

The main reason why sand casting is used to make steel pump bodies is that it can easily fit complicated internal passages and external shapes that traditional machining can't do. Modern foundries use different kinds of sand to get the best casting results. Each type of sand has its own benefits for different uses.

Green Sand Molding Systems

In order to make steel pump bodies, green sand shaping is the most common method used. This mix of silica sand, clay binders, water, and organic additives makes shaping material that can be used again and again. The clay content makes the material easy to shape while keeping its shape during steel pouring operations. Because they recycle materials, green sand systems are good for medium to high-volume pump body production runs because they save money.

Resin-Bonded Sand Applications

Chemical binders improve the qualities of sand for uses that need a smooth surface and accurate measurements. The furan resin and phenolic resin systems make models that are stronger and can handle the sudden change in temperature that comes from pouring molten steel. Tighter tolerances and less machining work are made possible by these advanced sand systems. This is especially helpful for precision pump bodies used in aerospace and automobile applications.

Sand Casting Advantages for Steel Components

Because sand modeling is naturally flexible, it can be used to make changes to designs without having to buy new tools. The geometric freedom that sand casting offers is useful for making steel pump bodies with complicated coolant channels, mounting bosses, and integration points. This process also keeps the mechanical properties of steel alloys while making it possible to make parts in large numbers at low cost, from small prototypes to large production runs.

Step-by-Step Manufacturing Process of Sand Cast Steel Pump Bodies

From engineering sketches to finished steel pump bodies, the process is organized in a way that makes sure the quality and accuracy of the measurements are always the same. At each step, you need to pay close attention to the process factors and material requirements.

Pattern Development and Mold Preparation

Making patterns is the first step in making sand casting processes work well. Skilled pattern makers make exact copies of the pump body shape that is needed, taking into account how much steel shrinks and how much machining stock there is. More and more, modern foundries use CNC-machined patterns and 3D-printed prototypes to speed up the creation process while keeping the accuracy of the dimensions.

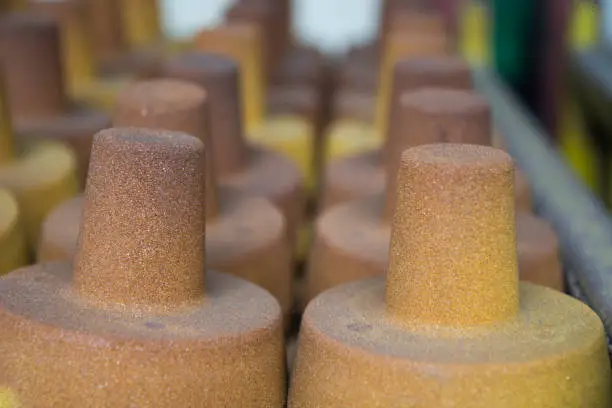

The first step in making a mold is putting the patterns inside special jars that hold the sand mixture. Core boxes make sand cores inside the pump body, which make complicated passages inside the body. During steel casting, these cores must keep the structure strong while also being easy to remove during shakeout operations.

Steel Melting and Pouring Operations

The makeup of the steel directly affects how well the pump body works. For general commercial uses, carbon steel grades have great strength-to-weight ratios. Stainless steel alloys, on the other hand, are better at resisting corrosion in harsh service environments. Workers in foundries keep a close eye on melting temperatures, which are usually between 1,500°C and 1,650°C based on the type of alloy.

Controlling the flow rate and the order of the pours stop flaws like cold shuts and inclusions. Modern foundries use automated pouring systems that keep the temperature and flow properties of the metal constant. These systems keep operators out of dangerous situations and make sure that all batches of casting are the same.

Cooling and Solidification Control

Controlled cooling keeps the inside of the pump from being stressed in ways that could damage its structure. Directional solidification methods direct the cooling of metal from thin sections to feeder risers, which gets rid of any shrinkage porosity. The time it takes to cool depends on how thick the part is, but most steel pump bodies need between 2 and 4 hours to fully solidify.

Shakeout and Cleaning Procedures

Getting rid of the sand makes the rough casting visible for the first look. Mechanical shakeout systems separate sand from hardened steel parts and save molding material for later use. Shot blasting gets rid of the sand and scales that are stuck on the surface, showing the true condition of the casting. During this cleaning step, quality workers can see any flaws on the surface that need to be fixed before the next step of processing.

Quality Control and Testing in Sand Cast Steel Pump Body Production

Comprehensive quality assurance programs make sure that the steel bodies of pumps meet the high performance standards needed in a wide range of industry settings. Modern foundries use multi-stage checking procedures that check both the accuracy of the dimensions and the properties of the material.

Dimensional Verification Protocols

Coordinate measuring tools check that the engineering drawings match the important sizes and shapes shown on them. The mounting surfaces, port locations, and wall thickness measures of the pump body get a lot of attention because they affect how it is put together and how well it works. Statistical process control methods keep an eye on changes in dimensions so that changes can be made before parts get too far out of tolerance.

Mechanical Property Testing

The tensile strength, yield strength, and elongation numbers show that the steel alloy performs as specified. Test pieces cast along with production parts give a true picture of the material's properties. Impact testing checks how tough a material is when it is loaded and unloaded quickly, while hardness testing checks how well a heat treatment works.

Non-Destructive Testing Methods

Ultrasonic testing shows that there are cracks inside the pump body that could affect how well it works when the pressure changes. Magnetic particle analysis can find cracks on the surface and problems below the surface of ferromagnetic steel parts. These testing methods give you faith in the integrity of the part without affecting how it works.

For important military and defense uses, advanced foundries use computed tomography scanning. This technology makes thorough three-dimensional pictures of the inside structure of the casting, which lets you find holes, inclusions, and other flaws that can't be seen with normal inspection methods.

Challenges and Solutions in Sand Casting of Steel Pump Bodies

Even though it has been shown to work, sand casting steel pump bodies has its own set of technical problems that can only be solved with the right knowledge and tools. Knowing about these problems and how to solve them helps buying teams judge the skills of suppliers.

Surface Finish Enhancement Techniques

Usually, surfaces made from raw sand casting need more work to get the finish that is needed. During traditional machining, casting scales are removed and exact sealing surfaces and mounting features are made. Modern foundries use better molding solutions that smooth out the surface, which means less machining is needed later.

Putting ceramic coats on the mold's sides keeps the molten steel and sand grains from touching each other. These coats keep sand from getting into the concrete and make the as-cast surfaces smoother. Investing in coating technology lowers the costs of processing that comes after and improves the regularity of the dimensions.

Porosity Prevention Strategies

The problem of internal porosity in steel casting processes is still there. The right design of the gates makes sure that the metal flows properly while it solidifies, and the placement of the risers creates containers for molten steel that make up for the shrinkage. Foundry workers can improve these features using simulation software before making the pattern. This cuts down on development time and the need for trial-and-error methods.

Vacuum-assisted casting methods keep gases from getting trapped, which helps pores form. These advanced methods make the inside of things much stronger, which is especially important for pump bodies that work under high pressure.

Inclusion Control Methods

How clean the steel is has a direct effect on how reliable the parts are and how long they last. Ceramic foam screens are used in modern foundries to clean molten metal streams of oxide inclusions and other impurities. Adding calcium to a ladle changes the shape of the inclusions, changing harmful angular oxides into spherical calcium aluminates that don't change the mechanical qualities much.

Company Introduction and Product Service Information

Zhejiang Fudebao Technology Co., Ltd. is a top company that makes precision metal casting and machining options for businesses around the world. We can make a wide range of parts out of aluminum alloy, copper alloy, and stainless steel for the aerospace, automotive, industrial equipment, and machinery making industries.

Our cutting-edge building has high-speed machining centers, CNC lathes, low-pressure casting machines, and die casting systems, among other high-tech tools. This unified method includes all stages of production, from "melting to casting to finishing to surface treatment," so raw materials can be delivered to final parts all in one place. We regularly achieve dimensional accuracy within ±0.05mm tolerances, which meets the strict needs of medical equipment and precision parts for cars.

We've moved from working with middlemen to working directly with suppliers thanks to strategic partnerships with foreign brands like American HAAS automation machine tools and ESS energy storage systems. This progress shows that we are dedicated to improving technology and quality, which makes Fudebao Technology a leading company in China's aluminum foundry business.

Our engineering team offers full technical consulting services and helps clients from the first idea for a design to putting it into production. We're proud of our quick contact and effective project management, which makes it possible for people in different time zones and industries to work together without any problems.

Conclusion

Sand casting keeps showing that it is a good way to make steel pump parts that can be used in many different industries. The process is both cost-effective and flexible in terms of shape, so it can make complicated parts that meet strict performance standards. Quality control measures make sure that results are always the same, and they use tried-and-true methods and cutting-edge technologies to solve common problems. When procurement professionals understand these manufacturing concepts, they can choose suppliers in a way that meets their needs for cost, quality, and delivery.

FAQ

What are typical lead times for sand cast steel pump bodies?

Standard lead times for sand cast steel pump bodies range from 4-8 weeks, depending on complexity and quantity requirements. New pattern development may extend timelines by 2-3 weeks. Rush orders can often be accommodated through priority scheduling, though this may impact pricing. Production volume significantly influences delivery schedules, with larger quantities requiring longer manufacturing windows.

How does sand casting compare to other manufacturing processes for pump bodies?

Sand casting offers superior cost-effectiveness for complex geometries compared to machining from solid stock. While investment casting provides better surface finish, sand casting accommodates larger components at lower tooling costs. Die casting delivers faster production rates but requires higher initial investment, making sand casting optimal for small to medium volume requirements.

What customization options are available for steel pump body specifications?

Material selection ranges from carbon steels to specialty stainless alloys, depending on service environment requirements. Dimensional modifications accommodate various port sizes, mounting configurations, and internal passage designs. Surface treatment options include protective coatings and specialized finishes. Custom heat treatment protocols optimize mechanical properties for specific applications.

What quality certifications do steel pump body manufacturers typically maintain?

Reputable manufacturers maintain ISO 9001 quality management systems with additional certifications like TS 16949 for automotive applications. Aerospace suppliers often hold AS9100 certification with material traceability documentation. Third-party testing laboratory partnerships provide independent verification of mechanical properties and chemical composition.

Partner with Fudebao Technology for Your Sand Casting Needs

Discover how Fudebao Technology's advanced sand casting capabilities can optimize your pump body sourcing strategy. Our experienced engineering team provides comprehensive technical support from design consultation through production delivery. Contact our specialist Hank Shen at hank.shen@fdbcasting.com to discuss your specific requirements and receive detailed quotations.
