Sand Casting Advantages for Large Parts Support Heavy Industrial Manufacturing Needs
2026-07-30
When sourcing components for heavy industrial applications, understanding sand casting advantages large parts becomes essential. This proven foundry method uniquely addresses manufacturing challenges that alternative processes cannot match—producing massive components weighing from several pounds to over 100 tons without prohibitive tooling costs. The process accommodates intricate geometries while maintaining material flexibility across ferrous and non-ferrous alloys, making it the backbone of over 60% of metal castings globally. Manufacturing professionals rely on sand casting to balance structural integrity, production economics, and design freedom when specifications demand robust, oversized components.
Understanding Sand Casting for Large Parts: Basics and Benefits
How Sand Casting Creates Massive Industrial Components
Moulds made of bonded sand mixtures are used over and over again in sand casting to shape molten metal into finished parts. The first step is to make a pattern, which is a copy of the end part. This copy is then pressed into carefully prepared sand to make the mould cavity. Green sand, which is made by mixing bentonite clay with water for cheap high-volume runs, and resin-bonded sand, which uses chemical bonds like furan or phenolic substances to get better dimensional control, are the two main types of sand used in industry.
The technical basis is based on the unique refractory properties of sand. Silica and synthetic sands can withstand temperatures above 1600°C without melting, which keeps the mould solid while metal is poured into it. Permeability is still very important—allowing controlled gas escape stops pores, and the sand's ability to collapse lets the mould come apart while it cools, which stops hot tearing in metals with high solidification shrinkage. This is the main thing that sets sand casting apart from fixed mould methods, which can put stress on big casts when they shrink during thermal contraction.
Core Economic and Technical Advantages
When a part's size is too big for die casting, the industrial scene changes in a big way. Die casting requires a lot of money to set up, but sand casting doesn't have that problem. Steel moulds for big parts can cost six figures. Pattern costs usually run from weeks of production time to months for hardened dies, which greatly shortens the time it takes to finish a job.
The flexibility of materials greatly increases the design options. Alloys with a high melting point, such as ductile iron, steel, and certain copper alloys, melt easily in sand moulds but have trouble melting in permanent moulds at these temperatures. Dimensional possibilities are very broad. Parts ranging from complicated valve bodies weighing ounces to mining equipment housings weighing over 50 tonnes come from the same basic process, with the size changed to fit the needs.
In particular, geometric complexity benefits highlight the sand casting advantages large parts can achieve. Sand core insertion makes internal passageways, undercuts, and hollow sections possible. This method enables the creation of cooling channels in engine blocks or fluid pathways in pump housings without requiring additional machining work. This design freedom supports strategies for consolidation, in which several machined parts are combined into a single casting. This reduces assembly time and minimizes potential failure points.
Addressing Common Manufacturing Challenges
Concerns about quality related to surface finish and dimensional tolerance need to be understood in the context of the product. Most sand castings meet ISO 8062 tolerance grades CT10 to CT13, and the surface roughness is between 6.3 and 12.5 Ra microns. These specifications aren't as precise as die casting, but they're fine for most industrial uses where CNC machining improves key mating surfaces after casting. When it comes to cost, it makes more sense to cast near-net shapes and machine only useful areas instead of taking material away from solid billets.
Managing shrinkage and porosity requires a number of control points. The right design of gates guides the flow of metal to get rid of cold shuts, and the placement of risers accounts for the volumetric shrinkage that happens when the metal solidifies. Today, foundries use modelling software to guess the temperature differences and patterns of solidification before filling the first piece. This makes the trial-and-error process a lot faster than it used to be, which was a big problem for developing large castings.
Comparing Sand Casting with Alternative Manufacturing Methods for Large Parts
Economic and Scale Considerations
Forging gives you great grain structure and mechanical properties, but it can't be used for sizes bigger than a certain point. The amount of press mass needed goes up significantly with part size, and the cost of dies is the same as or higher than the cost of casting tools. Welded fabrications are flexible, but they bring heat-affected zones and worries about residual stress that can be avoided with monolithic building.
Die casting gives you a better surface finish and tighter standards, but you can only use aluminium, zinc, and magnesium metals. The process works great for making a lot of smaller parts, but it gets too expensive when the parts get too big for heavy industrial use. When production rates are less than a few thousand pieces per year, the cost of the tools alone can make sand casting the better choice.
Structural Integrity and Performance Factors
The qualities of materials made by sand casting meet or go beyond the construction needs of many uses, and understanding sand casting advantages large parts helps explain why this process is widely selected for heavy-duty applications. Ductile iron castings can withstand tensile forces of more than 60,000 psi and are very resistant to impact, making them a good choice for building equipment that is often hit hard. Aluminium die castings can't match the mix of weldability and toughness that steel castings offer, especially in high-temperature work.
Controlled cooling rates in sand moulds are good for the as-cast microstructure. Unlike metal dies where solidification happens quickly, sand cools slowly, which lowers internal stress and encourages uniform grain development. Heat treatment methods improve mechanical qualities even more, and many foundries offer stress relieving, annealing, or normalising services all in one.
Another useful benefit is that it can accommodate changes in thickness, which is one of the key sand casting advantages large parts require during manufacturing. When you sandcast, you can use section thickness ratios that would make it hard to fill or make the casting very porous when you diecast. A gearbox body with 5mm ribbing that goes from 5mm to 40mm bosses can be cast successfully in places where die filling would freeze too soon or cause major shrinking problems.
Environmental and Lifecycle Assessment
Sustainability metrics are becoming more and more important in procurement decisions. Sand casting creates waste streams that can be recycled. Spent sand can be used as filler in concrete or to restore land after a restoration system has run its course. Metal yield rates are usually higher than 70%, with defective castings and gating systems going back to melt stock. This closed-loop flow of materials is better than subtractive methods, which turn expensive alloys into cheap chips.
How much energy a finished part uses per kilogram depends a lot on its shape. More energy is used for complex forms that need to be machined from solid stock than for casting and finishing. New studies show that the environmental benefits of sand casting grow as the complexity of the part grows, with payback points happening surprisingly early in production runs.
Optimizing Sand Casting for Large Parts: Best Practices and Design Tips
Critical Design Considerations for Casting Success
During the early stages of development, engineering teams work together on designs to get the best casting performance and understand the sand casting advantages large parts can offer in terms of design flexibility and manufacturing feasibility. Wall thickness uniformity stops different cooling rates that cause internal stress. A general rule of thumb is to keep the highest ratios between thick and thin parts at 3:1, but different alloys can handle different conditions. For full mould filling without cold shuts, the minimum wall thickness varies by alloy fluidity, but is usually between 5 mm and 9 mm for steel castings.
Draft angles make it easier to take patterns out of sand moulds without hurting the hollow. Because of pressure forces during extraction, internal features need 3-5 degrees of draft while external areas only need 1-3 degrees. Large arcs at section changes spread stress more evenly and make the metal flow better. Under cyclic loading, sharp corners become stress risers and possible crack-starting sites.
Coring methods figure out how feasible and expensive an internal trait is. Straight cores make it easy to make simple through-holes, but complex internal galleries need careful core print design and support. Sodium silicate binders make collapsible cores that dissolve when you wash them with water. This lets you make shapes that you couldn't make with rigid cores. Strategic coring removes material from solid parts, which greatly lowers the weight of the casting and the cost of the materials.
Quality Enhancement Protocols and Testing Standards
Professionals in procurement can benefit from learning about the methods used to check the quality of castings. Chemical analysis using optical emission spectrometry makes sure that the metal makeup meets the requirements before it is poured. This is a very important step that stops mistakes in material selection that could cost a lot of money. Tests for tensile strength, yield strength, and elongation values are done on witness bars that are made along with production pieces without damaging the final parts.
Non-destructive testing methods find internal breaks that can't be seen from the outside. Ultrasonic testing sends sound waves through cross-sections of castings, which is one of the sand casting advantages large parts because it helps verify the internal integrity of large and complex components. The reflection patterns show where there are shrinkage holes or gas holes. Radiographic analysis creates lasting film records of how sound the inside is, which is needed by aircraft and pressure tank codes. Magnetic particle inspection can find cracks that break the surface of ferromagnetic materials, and dye penetrant tests can do the same thing for metals that aren't magnetic.
Coordinate measuring tools are used for dimension verification. They compare as-cast surfaces to CAD models and make thorough reports of any deviations. This information helps with allocating machining stock and finds regular dimensional shifts that need pattern change. Statistical process control is used by progressive foundries to keep capability indices that meet car PPAP standards. These foundries track dimensional trends across production lots.
Real-World Applications Demonstrating Best Practices
For parts of crusher frames that weigh more than 8,000 pounds, mining equipment manufacturers use sand casting. These parts are always being hit by rock processing equipment, so they need high-strength steel alloys that are very hard to break. Integrated mounting ends and ribbing patterns spread stress while keeping the total weight as low as possible. This is a design technique that would need a lot of welding if it were made from plate steel.
Large aluminium sand castings are used for wind turbine nacelle housings in renewable energy projects. These weatherproof enclosures keep sensitive gearbox and generator parts safe while staying the same size even when the temperature changes. The sand casting advantages large parts include excellent design flexibility, cost efficiency, and the ability to produce complex components with reliable structural performance. Because aluminium is so easy to cast and has such high specific strength, thin-wall construction can lower the weight of the tower head without compromising its structural integrity.
Propeller hubs and rudder stocks are made from brass sand castings, which are used in marine power systems. These parts are always exposed to saltwater and cavitation damage, so they need copper-nickel metals that don't rust but can still be machined. When compared to manufactured options, sand casting makes it easier to put together because it can handle complex hydrodynamic profiles and built-in flanges that improve fluid flow.
Procurement Insights: Finding Reliable Sand Casting Suppliers for Large Parts
Evaluating Foundry Capabilities and Certifications
To be successful at sourcing, you must first carefully evaluate each seller in a number of different areas. A basic level of quality management certification, like ISO 9001 registration, shows that processes are being controlled in a planned way. Industry-specific certifications, like IATF 16949 for cars or AS9100 for aerospace, show that the company has a deeper understanding of that particular field. Accreditation by NADCAP for heat treating or non-destructive testing shows that the company has advanced professional skills that go beyond basic casting processes.
Metrics that measure production ability show if a foundry can meet the number and timeline needs of a project. The number of tonnes produced each year shows the general size, but the ability to make big parts depends on the pattern equipment and mould handling systems used. Pouring capacity is very important—ladle widths and metallurgical furnace capacities need to fit the weight and alloy needs of the parts without having to be mixed too much, which would cause consistency differences.
Lead time and quality control are affected by whether services are outsourced or done in-house. Having facilities that do pattern making, casting, heat treatment, machining, and surface finishing all in one place makes it easier to communicate and hold people accountable. Zhejiang Fudebao Technology is a good example of this all-around method because they do the whole production process, from melting the metal to treating the surface, and can machine it with a range of ±0.05mm.
Understanding Pricing Structures and Lead Times
Estimating the cost of sand castings is made up of different parts that change on their own. Pattern casting is the main one-time cost that goes up with complexity instead of production volume. Patterns with simple, symmetrical parts cost a lot less than complicated, multi-piece patterns that need sections that can be folded up. The prices of materials change with the commodity markets. The prices of steel and aluminium are especially changeable, so the length of time that prices are valid is an important part of contracts.
Casting costs go down with output, but not in a straight line like pressing or die casting does. Setting up and checking the quality of the product take about the same amount of time whether you're making 10 or 100 pieces. This creates economy-of-scale curves that become flat above modest quantities. One of the key sand casting advantages large parts can benefit from is cost efficiency, as this process remains economical for complex and oversized components produced in moderate volumes. Because of this, sand casting is a good way to save money when you need between 50 and 5,000 pieces a year. However, the exact break-even points depend on the shape of the part and other process options.
Expectations about lead times need to be realistically calibrated. Depending on how complicated the pattern is and how busy the supplier is, it usually takes 3 to 8 weeks to make. For the first sample casts, which include making the mould, filling, cooling, and cleaning, it takes an extra two to four weeks. Dimensional proof and possible pattern changes add more time to the schedule, but experienced suppliers can cut down on iterations by simulating and reviewing the design up front.
Building Strategic Supplier Relationships
Partnerships that work go beyond just buying things and include working together to make things. When suppliers are involved early in the design process, they can avoid having to make expensive changes when manufacturing problems show up late in the development cycle. Foundries help designers choose the right material, suggest the best draft angle, and come up with ways to cut costs that designers who aren't familiar with casting limits might miss.
Communication styles have a big effect on how well a job turns out. Misunderstandings can be avoided by making the technical requirements clear. These should include any required surface finishes, tolerances for sizes, and acceptance criteria. Three-dimensional CAD models go along with flat drawings because they can be used for simulations and make geometric definitions clear. Having agreed-upon inspection plans written down before production begins gets rid of disagreements about how to do acceptance testing.
Long-term contracts are good for both parties because they lock in volume promises that make process optimisation investments worthwhile, especially when buyers recognise sand casting advantages large parts for projects requiring scalable production and complex components. Suppliers can see what's being made, which helps them plan their capacity more efficiently, and buyers can get priority scheduling and possibly lower costs from efforts to keep improving. Once a year, business reviews give an organised way to evaluate performance and make sure that everyone is on the same page about how to adopt new technologies or grow existing ones.
Environmental and Future Trends in Sand Casting for Large Industrial Parts
Sustainability Initiatives Reshaping Foundry Operations
Sustainability efforts are changing how the foundry works. Environmental responsibility is becoming more and more important in choosing manufacturing processes and evaluating suppliers. Modern foundries use closed-loop sand recovery systems to remove binders physically or thermally. This returns conditioned sand to production and cuts the need for new materials by 95% or more. This circular method cuts the amount of trash that ends up in landfills by a huge amount while also lowering the cost of raw materials.

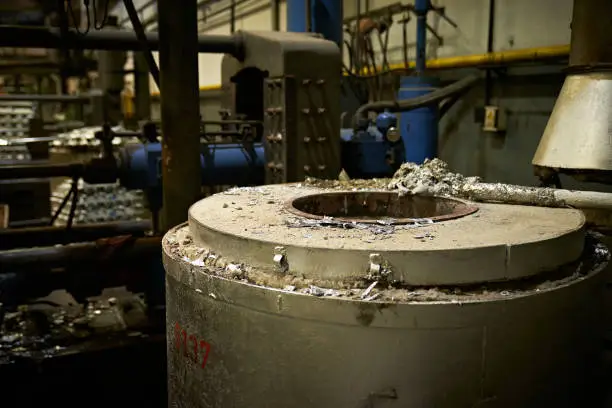

The melting processes that use the most power in a foundry are where energy-saving gains are focused. Regenerative systems in induction furnaces use waste heat to heat up charge materials before melting them. This lowers the amount of electricity needed per tonne of metal that is melted. Automated pouring systems keep the metal's temperature from dropping between the kiln and the mould as little as possible. This lowers the superheat with less energy input and improves the quality of the casting by reducing gas absorption.
Emission control methods help with air quality problems that have been linked to foundries in the past. Particulate matter from the shakeout and finishing processes is collected by baghouse filter systems. Volatile organic compounds from the curing of resin sand binder are removed by steam oxidisers. Water treatment systems allow closed-loop cooling, which stops thermal waste and lowers the amount of water used by cities in places where water supply is an issue.
Technological Innovations Transforming Production Capabilities
Digital integration changes the way foundries work by letting them control the process using data. Mould compaction sensors tell you in real time how regular the sand density is, and they automatically change the squeeze pressure to keep the mould hardness stable. Thermal imaging cameras keep an eye on pouring temperatures and patterns of cooling. When parameters move outside of acceptable ranges, they send out alerts. This network of sensors creates production intelligence that keeps the process stable.
Because simulation software is getting more accurate, virtual casting can be checked out before real trials are done. Computational fluid dynamics models can guess how metal will flow and find places where there might be turbulence that trap gas or wear away the mould. Solidification modelling shows where the shrinkage is happening, which helps with placing risers and designing gates so that sound casts happen. With these virtual tools, development times can be cut from months to weeks, and trial casting versions waste less material.
Printed sand moulds and cores are how additive manufacturing gets into industrial foundries. With this technology, design tools are not needed at all for low-volume production because digital files directly control the printing equipment. Complex internal shapes that aren't possible to get out of standard cores are now possible, which makes lightweighting and functional integration possible that weren't possible before. This approach also highlights the sand casting advantages large parts can achieve, as printed moulds enable the production of oversized components with complex geometries while reducing tooling limitations. At bigger numbers, the cost per piece is higher than with traditional moulding, but the point where the cost of materials is less than the cost of printing keeps moving up as printing speeds increase and material costs go down.
Adapting to Market Dynamics and Regulatory Changes
As an industry consolidates, casting capacity is concentrated among a smaller number of larger suppliers that have the money to adopt new technologies and follow the rules. This change makes things harder for buyers who used to depend on small, specialised foundries. They need to diversify their supply chains and may have to wait longer for orders because the remaining suppliers can't handle as many orders at once. Strategic relationships with medium-sized foundries that offer specialised skills can be very helpful in case of supply disruptions.
Compliance investments are always being made because of changes in regulations about carbon limits and worker safety. OSHA rules about respirable crystalline silica require foundries to take better steps to control dust, such as improving ventilation and personal protective equipment. These regulatory costs have an effect on how much suppliers charge, but they also push the industry to become more professional, which is good for product quality and shipping efficiency.
Reshoring programs backed by government policies make it possible for local foundries to grow. Manufacturers are more likely to source from different parts of the world when there are global disruptions because it exposes weak spots in their supply chains. They are even willing to pay a little more for shorter lead times and easier logistics. This trend is especially good for suppliers that offer a wide range of services, such as engineering support and integrated machining, which makes buying easier by putting the responsibility on a single source.
Conclusion
Sand casting is the basis of heavy industrial manufacturing because the sand casting advantages large parts include unmatched size capability, alloy freedom, and affordable tooling. When procurement experts understand the technical differences between green sand and resin systems, know when sand casting is better than other methods, and follow best practices for design, they can select parts that meet performance requirements while staying within budget. Supplier evaluation criteria, including certifications, integrated capabilities, and collaborative approaches, ensure that long-term partnerships consistently deliver reliable results. New digital technologies and sustainable initiatives are making sand casting more competitive while also addressing the environmental responsibilities that define modern manufacturing.
FAQ
What material options work best for large sand castings?
Which alloy to use varies depending on the working conditions and the mechanical needs. For machine bases, grey iron is great at reducing vibrations, and for structural parts, ductile iron is better at tensile strength and impact resistance. Steel castings are good for high-stress jobs that need to be able to be welded, and aluminium alloys are lighter options for jobs that need to be resistant to rust. To meet the needs of electrical conductivity or marine corrosion, copper alloys are used. Our metallurgical team helps match the properties of materials to the needs of applications.
How do lead times compare between sand casting and machining?
It usually takes 3 to 6 weeks to make a sand casting design, but you can start cutting right away. Finishing and casting take an extra 2 to 4 weeks, for a total of 5 to 10 weeks for final parts. It might be faster at first to machine complex big parts from solid wood, but each piece takes hundreds of machine hours to make. Break-even happens after 5–10 pieces, depending on the geometry. After that, casting's per-piece time advantage becomes more important.
What defects occur most frequently and how are they prevented?
The most common worry is porosity from trapped gas, which can be lessened by venting properly and filling slowly. Shrinkage holes happen when there isn't enough food during solidification. This problem can be fixed by designing a better riser, which has been proven by simulations. Surface flaws like sand particles become less noticeable when mould coating is used, and the qualities of the sand are managed. These safety measures are built into our quality systems and are used throughout production.
Partner with Fudebao Technology for Expert Sand Casting Solutions
Zhejiang Fudebao Technology is ready to make your needs for big parts a reality through careful manufacturing. Our combined foundry and machining operations include castings made of aluminium alloy, copper alloy, and stainless steel. We can help with everything from melting the metal to treating the surface. We directly serve global leaders in the car industry and makers of industrial equipment. Our advanced CNC machining centers and inspection processes keep the dimensions accurate to within 0.05 mm. Our engineering team works together to optimise designs that maximise sand casting advantages large parts, whether you need prototype development or production volumes. Email our sand casting advantages large parts provider team at hank.shen@fdbcasting.com to talk about the details of your project and find out how our all-encompassing method can help you get parts that meet the highest performance standards while also making your supply chain more efficient.
References
1. American Foundry Society. (2021). "Sand Casting Processes and Materials: Technical Reference Guide." Des Plaines: American Foundry Society Publications.
2. Campbell, J. (2015). "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design," 2nd Edition. Oxford: Butterworth-Heinemann.
3. Steel Founders' Society of America. (2019). "Steel Castings Handbook," 8th Edition. Crystal Lake: Steel Founders' Society Publications.
4. Brown, J.R. (2018). "Foseco Ferrous Foundryman's Handbook," 11th Edition. Oxford: Butterworth-Heinemann.
5. American Society for Testing and Materials. (2020). "ASTM A536: Standard Specification for Ductile Iron Castings." West Conshohocken: ASTM International.
6. Beeley, P.R. and Smart, R.F. (2017). "Investment Casting and Sand Casting: Comparative Process Analysis." Materials Science and Engineering Reports, Vol. 94, pp. 1-87.
