Understanding Porosity and Shrinkage in Copper Castings
Types of Porosity in Copper Castings
Porosity in copper castings manifests in various forms, each with distinct characteristics and causes. Gas porosity results from trapped gases during solidification, often appearing as small, rounded voids scattered throughout the casting. Shrinkage porosity, on the other hand, occurs due to inadequate feeding of molten metal during solidification, typically presenting as irregular, interconnected cavities. Interdendritic porosity forms between dendrites during solidification, creating a network of fine, elongated voids. Understanding these types helps in identifying root causes and implementing targeted prevention strategies.
Causes of Shrinkage in Copper Alloys
Shrinkage in copper alloys primarily stems from volumetric changes during solidification. As molten copper cools, it contracts, potentially creating voids if not adequately compensated. Factors influencing shrinkage include alloy composition, cooling rates, and casting geometry. Copper's high thermal conductivity can lead to rapid solidification, exacerbating shrinkage issues. Insufficient feeding paths or improper riser design can prevent molten metal from filling shrinkage cavities. Additionally, thermal gradients within the casting can cause localized shrinkage, particularly in thick sections or areas with varying cooling rates.
Impact on Casting Quality and Performance
Porosity and shrinkage significantly affect the quality and performance of copper castings. These defects compromise mechanical properties, reducing strength, ductility, and fatigue resistance. They can create leak paths in pressure-tight components, leading to functional failures. Surface porosity impairs aesthetics and can interfere with subsequent machining or finishing operations. In electrical applications, porosity can increase electrical resistance and reduce conductivity. Shrinkage defects may cause dimensional inaccuracies, potentially leading to rejection of parts. By addressing these issues, foundries can enhance the reliability, durability, and overall quality of copper castings, meeting stringent industry standards and customer expectations.
Prevention Techniques for Porosity in Copper Castings
Optimizing Melting and Pouring Practices
Effective melting and pouring practices play a pivotal role in minimizing porosity in copper castings. Precise temperature control during melting is essential, as overheating can lead to increased gas absorption. Utilize clean, dry raw materials to reduce potential contaminants. Implement proper flux usage to remove impurities and protect the melt from oxidation. During pouring, maintain a steady, controlled flow to prevent turbulence and air entrapment. Consider using bottom-gating systems to promote laminar flow and reduce oxide formation. Regularly monitor and maintain furnace atmospheres to prevent unwanted reactions with the molten copper.
Degassing and Melt Treatment Techniques
Degassing is crucial for removing dissolved gases, particularly hydrogen, from molten copper. Inert gas purging, using argon or nitrogen, effectively removes dissolved gases by diffusion. Vacuum degassing offers a more thorough approach for critical applications. Chemical degassing agents can also be employed, but care must be taken to avoid introducing new impurities. Melt treatments, such as the addition of grain refiners or modifiers, can improve solidification characteristics and reduce porosity. Implement proper holding times after degassing to allow for complete gas removal before pouring.
Gating and Risering System Design
Well-designed gating and risering systems are fundamental in preventing porosity in copper casting. Develop gating systems that promote smooth, laminar metal flow, minimizing turbulence and oxide formation. Use properly sized runners and gates to control flow velocity and maintain optimal filling rates. Implement efficient risering techniques to ensure adequate feeding during solidification. Consider directional solidification principles when designing risers, placing them strategically to feed shrinkage-prone areas. Utilize computer simulation software to optimize gating and risering designs, predicting potential defect locations and allowing for preemptive adjustments.
Strategies to Minimize Shrinkage in Copper Castings
Controlling Solidification Rates
Managing solidification rates is crucial in minimizing shrinkage defects in copper castings. Implement controlled cooling techniques to achieve uniform solidification across the casting. Use chill blocks or cooling channels in molds to promote directional solidification, guiding the solidification front towards risers. Consider the application of insulating sleeves or exothermic materials to maintain riser temperatures, enhancing their feeding efficiency. For complex geometries, employ computer-aided solidification modeling to identify potential hot spots and optimize cooling strategies. Adjust mold materials and coatings to fine-tune heat extraction rates, ensuring balanced solidification across varying section thicknesses.
Alloy Selection and Composition Control
Careful alloy selection and composition control significantly impact shrinkage behavior in copper castings. Choose alloys with favorable solidification characteristics, considering factors such as freezing range and fluidity. Maintain strict control over alloying elements, as minor variations can significantly affect shrinkage tendencies. Consider the use of grain refiners or modifiers to promote equiaxed grain structures, which can help distribute shrinkage more evenly. For critical applications, explore custom alloy formulations designed to minimize shrinkage while meeting performance requirements. Implement robust quality control measures to ensure consistent alloy composition across batches, maintaining predictable shrinkage behavior.
Mold Design and Material Considerations
Mold design and material selection play crucial roles in managing shrinkage in copper castings. Optimize mold geometry to promote uniform cooling and minimize hot spots. Incorporate adequate draft angles and fillets to facilitate smooth metal flow and reduce stress concentrations. Select mold materials with appropriate thermal properties to control heat extraction rates. For sand casting, consider using thermally conductive additives in mold coatings to enhance heat transfer. In permanent mold casting, implement temperature control systems to maintain consistent mold temperatures. Explore the use of cores made from materials with controlled permeability to aid in gas evacuation and reduce porosity-related shrinkage defects.
Conclusion
Preventing porosity and shrinkage in copper castings requires a multifaceted approach, combining metallurgical knowledge with advanced casting techniques. By optimizing melting and pouring practices, implementing effective degassing methods, and designing efficient gating and risering systems, foundries can significantly reduce porosity issues. Controlling solidification rates, carefully selecting alloys, and optimizing mold designs are key strategies for minimizing shrinkage defects. Consistent application of these techniques, coupled with ongoing process monitoring and quality control, enables the production of high-quality copper castings that meet stringent industry standards and customer requirements.
FAQs
What are the main causes of porosity in copper castings?
The main causes include trapped gases, inadequate feeding during solidification, and improper melting or pouring practices.
How does alloy composition affect shrinkage in copper castings?
Alloy composition influences solidification behavior, with some alloys being more prone to shrinkage than others.
Can computer simulation help in preventing casting defects?
Yes, simulation software can predict potential defect locations and optimize gating and risering designs.
What role does degassing play in improving casting quality?
Degassing removes dissolved gases from the melt, significantly reducing the risk of gas porosity in the final casting.

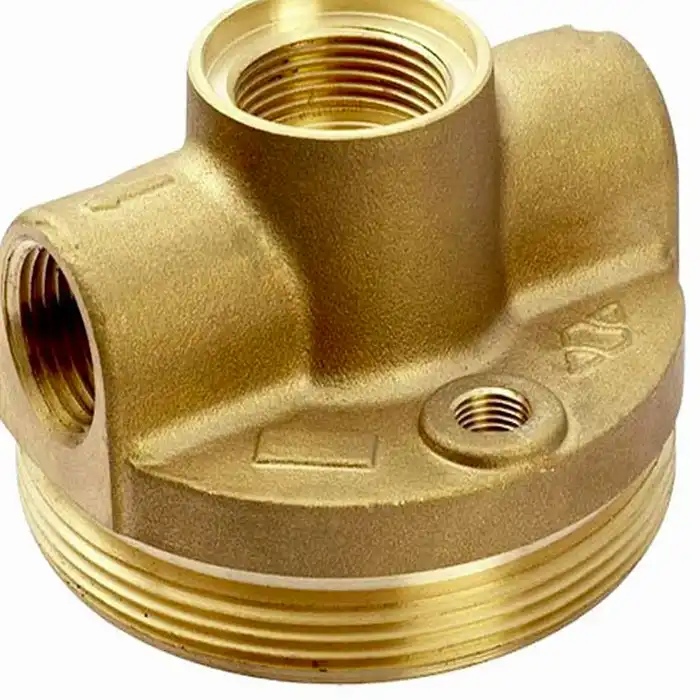

Expert Copper Casting Solutions | Fudebao Technology
At Fudebao Technology, we specialize in high-quality copper casting solutions, leveraging our expertise to minimize porosity and shrinkage defects. Our state-of-the-art facilities and skilled team ensure precision in every casting, meeting the most demanding industry standards. As a leading copper casting manufacturer, we offer comprehensive services from design to production. For expert advice and superior copper casting products, contact us at hank.shen@fdbcasting.com.
References
Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design. Butterworth-Heinemann.
Gruzleski, J. E., & Closset, B. M. (1990). The Treatment of Liquid Aluminum-Silicon Alloys. American Foundrymen's Society.
Stefanescu, D. M. (2015). Science and Engineering of Casting Solidification. Springer International Publishing.
ASM International. (2008). ASM Handbook, Volume 15: Casting. ASM International.
Beeley, P. (2001). Foundry Technology. Butterworth-Heinemann.
Kaufman, J. G., & Rooy, E. L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.
