Common Defects in Aluminum Die Casting and How to Prevent Them

One of the most important manufacturing methods today is aluminum die casting, which is used in many industries, including automotive, aerospace, electrical, and industrial. It is very accurate and costs very little. Understanding and avoiding typical flaws in aluminum die casting has a direct effect on the quality of the product, the efficiency of production, and the ability to keep suppliers for a long time. Manufacturing flaws can cause expensive rejections, late deliveries, and parts that don't work as well as they should. Procurement pros and engineering teams can cut down on waste, save money, and make sure that reliable supply chain partnerships meet strict quality standards by finding common casting flaws early and using tried-and-true prevention methods.

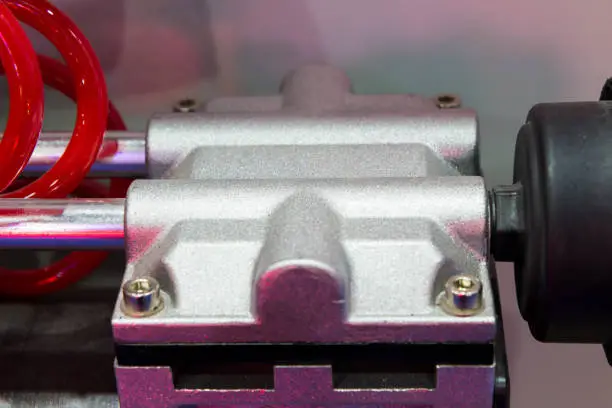

Understanding Common Defects in Aluminum Die Casting

In the aluminum casting process, molten metal is pushed through precisely machined dies under a lot of pressure. This makes complicated shapes with very accurate measurements. But this complex way of making things has some built-in problems that can lead to different kinds of flaws.

Process Flow and Defect Origins

Defects in metal casting usually come from three main places: problems with the quality of the material, changes in the process parameters, and external factors. Impurities that show up as casting flaws can be introduced by contaminated raw materials, incorrect melting temperatures, and insufficient degassing methods. Environmental factors like humidity, temperature, and how clean the die is also have a big effect on the quality of the end part.

Primary Defect Categories

The most common flaw in aluminum casts is porosity, which shows up as small holes or gas bubbles inside the metal. Because these flaws affect mechanical features, they can cause important parts to fail early in situations like car engines or spacecraft structures.

When two metal fronts meet but don't fuse properly, cold shuts happen. This leaves lines or weak spots in the final casting. This flaw is most noticeable in complicated shapes with many flow paths, which are widespread in electrical housings and parts of industrial equipment.

During solidification, hot tearing happens when thermal pressures are higher than the material's strength. This causes flaws that look like cracks. This effect usually happens in thin-walled parts and places where shrinkage is limited. This is especially important for lightweight car uses.

Shrinkage flaws show up as depressions on the surface or holes inside the material that happen because it wasn't fed enough during solidification. These problems have a direct effect on dimensional accuracy, which is very important for precision made parts that need to fit together tightly.

Material and Design Influences

Different aluminum die casting types are more or less likely to have certain flaws. Silicon-rich alloys like A380 are very fluid, but they may become more porous if the processing factors aren't just right. Knowing the features of a metal helps you predict flaws more accurately and come up with better ways to stop them that fit the needs of each application.

Systematic Approach to Preventing Aluminum Die Casting Defects

To use a structured defect prevention method, you need to look at the properties of the materials, the factors that affect the process, and the design issues. This methodical approach makes it possible to consistently improve quality and know what the end results of making will be.

Root Cause Analysis Framework

Finding the root cause of a problem at multiple stages of a process is the first step in preventing defects. Material analysis looks at things like the makeup of the alloy, how clean the melt is, and how well it removes gases. Evaluation of the process includes checking the injection settings, controlling the die temperature, and finding the best cooling rate. The design review looks at the uniformity of wall thickness, the gating strategy, and how well the building can breathe.

Material Quality Optimization

Melt quality has a direct effect on the integrity of the end casting. Using the right degassing methods will get rid of the released hydrogen, which will greatly reduce the formation of pores. Treatments that polish grains make them stronger and less likely to tear when heated. Using spectroscopic analysis makes sure that the makeup of the alloy stays the same throughout production runs.

Controlling the temperature is a very important part of keeping defects from happening. For most aluminum alloys, keeping the melt temperature between 650°C and 700°C is the best way to balance flexibility with less gas solubility. Precise temperature control stops both cold shuts from not having enough heat and too much shrinking from being too hot.

Process Parameter Tuning

The improvement of injection speed is a key part of avoiding defects. Controlled filling speeds reduce turbulence and make sure that all the holes are filled before solidification starts. Multi-stage injection profiles can handle complicated shapes by changing speed based on the needs of the flow path.

Managing the temperature of the die has an effect on both how the filling works and how fast it cools. Preheating dies to the right temperatures helps metal move smoothly and stops it from solidifying too soon. The shape of the cooling channels lets you control the patterns of solidification so that there are fewer problems with shrinkage.

Quality Control Implementation

Modern checking methods allow for early discovery of flaws and correction of the process. An X-ray shows internal porosity and shrinkage flaws without damaging the material. Dimensional measurement tools check that shapes are accurate within certain limits. Key factors are watched over by statistical process control to keep quality levels stable.

Comparing Aluminum Die Casting Defects with Other Casting Methods

Because of the way they are made, defects show up in different ways when using different casting methods. Knowing about these differences helps buying teams choose the best ways to make things for each application.

High-Pressure Die Casting vs Sand Casting

When high pressure is applied to aluminum die casting, porosity is greatly reduced compared to sand casting. Die casting's fast cooling rates stop grain growth, which leads to better surface finishes and more accurate measurements. However, high-pressure methods may bring new problems, like a higher chance of cold shuts in complicated geometries.

Sand casting lets you make bigger parts and makes it easier to make changes to the design, but the surfaces are usually rougher and have more holes in them. Slower cooling rates in sand molds can lower residual stresses, but they may not have as good of mechanical qualities as die cast options.

Comparison with Investment Casting

Investment casting produces surfaces with great quality and exact measurements, which is especially useful for aircraft uses that don't need a lot of post-processing. This method, on the other hand, usually costs more per unit and takes longer to make than aluminum die casting for large quantities.

The defect patterns from these two methods are very different from one another. Because it is poured, investment casting doesn't usually have cold shuts, but it can show different patterns of shrinking. When making a lot of something, die casting is the best way to get it done quickly and cheaply while still getting it done perfectly.

Material-Specific Considerations

Aluminum's heat conductivity and shrinkage make it different from zinc or magnesium casting in terms of the defects that need to be avoided. Because aluminum has a higher melting point, it needs stronger cooling systems and die materials. Because the material doesn't rust, it's great for electrical uses. However, it needs to be properly vented to avoid problems caused by gas.

Procurement Considerations: How to Choose Reliable Aluminum Die Casting Suppliers

To choose reliable suppliers, you need to look closely at their quality processes, technical skills, and how they handle problems. Product quality and shipping performance are directly affected by how well you work with your suppliers.

Quality Assurance Criteria

Certifications in an industry provide basic quality assurance signs. Getting ISO 9001 certification shows that you care about quality management systems, and IATF 16949 certification talks about the needs of the automotive business. For important uses, aerospace providers should keep their AS9100 certification.

The supplier's quality control skills must match the needs of the product. Coordinate measuring machines, X-ray systems, and metallurgical labs are examples of high-tech inspection tools that show a strong commitment to quality. Statistical process control charts, inspection reports, and traceability records should all be part of documentation methods.

Technical Capability Assessment

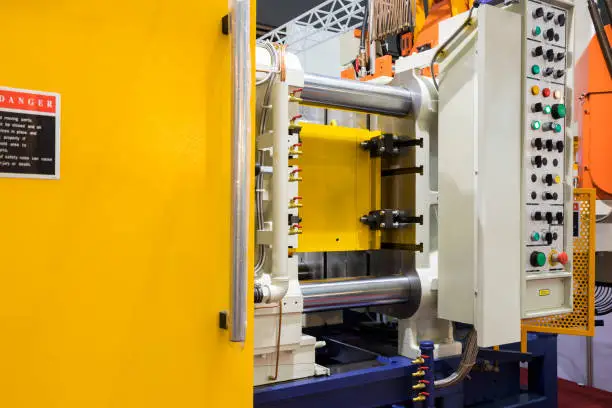

The level of complexity of the manufacturing equipment directly affects how well it can stop defects. Modern die casting machines with fine parameter control make it possible to get consistent results. Post-casting processes can be sure of accurate measurements thanks to CNC machining. Facilities for surface preparation meet all of your finishing needs.

Prototyping services show how flexible and technically skilled a seller is. The ability to make rapid prototypes lets you test your idea and find bugs early on. Long-term production quality and cost-effectiveness are affected by how well tools are designed and how well they are made.

Supplier Performance Evaluation

Consistency in lead times shows how efficient operations are generally and how reliable the supply chain is. Reliable suppliers stick to regular shipping times and can also accommodate reasonable requests to get things done faster. Minimum order number flexibility helps a range of business models, from making prototypes to producing large amounts of goods.

Communication styles have a big effect on the success of a project. Technical help makes it possible for people to work together to solve problems during the development process. Procedures for resolving quality issues show a dedication to ongoing growth and customer satisfaction.

At Fudebao Technology, we know how important these buying factors are and have built up a wide range of skills to meet all of your needs. Our building has cutting-edge aluminum die casting machines, precise CNC machining centers, and advanced checking systems that make sure the quality of the work is always the same. We keep our ISO 9001 certification and work with demanding clients in the aerospace, automobile, and industrial sectors. We have a history of avoiding defects and delivering on time.

Best Design and Process Guidelines to Minimize Aluminum Die Casting Defects

The most aggressive ways to stop defects are through effective design optimization and process control. Using design for manufacturability concepts from the start of a project cuts quality risks and production costs by a large amount.

Design for Manufacturability Principles

Wall thickness consistency is a key factor in avoiding flaws caused by shrinkage and making sure that cooling rates are always the same. Differential cooling pressures are kept to a minimum by keeping thickness differences within 2:1 ratios. Gradual changes in thickness keep stress from building up in places where it could cause cracks or distortion.

Draft angles make it easier to remove parts while keeping the surface from getting damaged. Minimum draft needs to be between 1 and 3 degrees, but this depends on the height of the wall and the surface material needs. The right draft angles also keep dies from wearing out and make tools last longer.

Gating and Venting Design

The placement of the gate has a direct effect on the filling patterns and possible defect sites. Multiple gate designs spread out flow lines, which lowers injection pressures and smooths out the flow. When figuring out the size of a gate, you have to combine the amount of time needed for filling with the limits on shear stress to keep the material from breaking down.

Venting systems let air that is held escape while a cavity is being filled. Porosity and incomplete filling happen in thin areas when there isn't enough venting. Putting vents in places where natural air traps are found keeps gases from getting trapped and keeps the seals tight during injection.

Process Parameter Optimization

To keep the melt temperature under control, you have to carefully watch it and make changes based on the alloy's properties and the difficulty of the casting. Higher temperatures make fluids flow better but also make them shrink and dissolve in gas more. Lower temperatures could lead to cold shuts or thin areas that aren't fully filled.

Injection pressure patterns can handle different filling stages, from the beginning of the cavity entry process to the end of packing. Multi-stage pressure control reduces turbulence during early filling and makes sure there is enough pressure for full hollow packing.

Changing the cooling rate has an effect on how the microstructure grows and how leftover stress forms. Controlled cooling keeps the mechanical qualities you want while stopping hot tearing. The cooling tube design makes it possible for the temperature to be spread evenly throughout the die structure.

Conclusion

Understanding and preventing common defects in aluminum die casting requires comprehensive knowledge of material properties, process variables, and design considerations. Effective defect prevention strategies encompass material quality optimization, process parameter control, and systematic quality management practices. Successful supplier partnerships depend on thorough capability assessment, quality system evaluation, and ongoing performance monitoring. By implementing these principles, procurement professionals can ensure reliable supply chains that deliver consistent quality outcomes while minimizing costs and production risks.

FAQ

What causes porosity in aluminum die castings?

Porosity in aluminum castings primarily results from dissolved gases, particularly hydrogen, that become trapped during solidification. Inadequate degassing procedures, contaminated raw materials, and excessive injection temperatures contribute to gas formation. Proper melt treatment, controlled injection parameters, and adequate venting systems effectively minimize porosity formation.

How can I evaluate supplier quality control measures?

Assess supplier certifications including ISO 9001 and industry-specific standards like IATF 16949 for automotive applications. Evaluate inspection equipment capabilities, documentation practices, and statistical process control implementation. Request quality manuals, inspection procedures, and defect tracking records to understand their quality management approach.

Which aluminum alloys minimize casting defects?

A380 aluminum alloy offers excellent fluidity and reduced hot tearing tendency, making it ideal for complex geometries. A383 provides superior pressure tightness for hydraulic components. A360 delivers excellent corrosion resistance for electrical applications. Alloy selection should balance mechanical property requirements with casting characteristics specific to your application needs.

Partner with Fudebao Technology for Superior Aluminum Die Casting Solutions

Discover how Fudebao Technology's advanced defect prevention capabilities can transform your supply chain reliability. Our comprehensive aluminum die casting expertise, combined with precision CNC machining and rigorous quality control systems, ensures defect-free components that meet your exact specifications. Contact our engineering team at hank.shen@fdbcasting.com to discuss your project requirements and experience the advantages of partnering with a leading aluminum die casting manufacturer committed to excellence in every component we produce.

References

Campbell, John. "Complete Casting Handbook: Metal Casting Processes, Techniques and Design." Butterworth-Heinemann, 2015.

Vinarcik, Edward J. "High Integrity Die Casting Processes." John Wiley & Sons, 2003.

Shivkumar, S., Ricci, S., Keller, C., and Apelian, D. "Effect of Solution Treatment Parameters on Tensile Properties of Cast Al-Si-Mg Alloys." Journal of Heat Treating, Vol. 8, No. 1, 1990.

Dispinar, Derya and Campbell, John. "Critical Assessment of Reduced Pressure Test. Part 1: Porosity Phenomena." International Journal of Cast Metals Research, Vol. 17, No. 5, 2004.

Monroe, Ravi and Beckermann, Christoph. "Development of a Method for Predicting Shrinkage Defects in Steel Castings." American Foundry Society Transactions, Vol. 113, 2005.

Weiss, Dieter. "Annual Book of ASTM Standards: Aluminum and Magnesium Alloys." American Society for Testing and Materials, 2018.
