What Kind of Defects can Occur in Low Pressure Cast Parts?

Defects in low-pressure casting can seriously hurt the quality and performance of a part. Porosity from trapped gas during mold filling, shrinkage cavities from not feeding enough during solidification, oxide inclusions from turbulent metal flow, cold shuts (where metal fronts don't fuse properly), and stress-induced cracks from thermal contraction are some of the most common flaws. By knowing about these types of defects, engineering teams can come up with focused ways to stop them, improve production factors, and make sure that high-quality castings are delivered that meet strict industry standards for use in automobile, aerospace, and industrial settings.

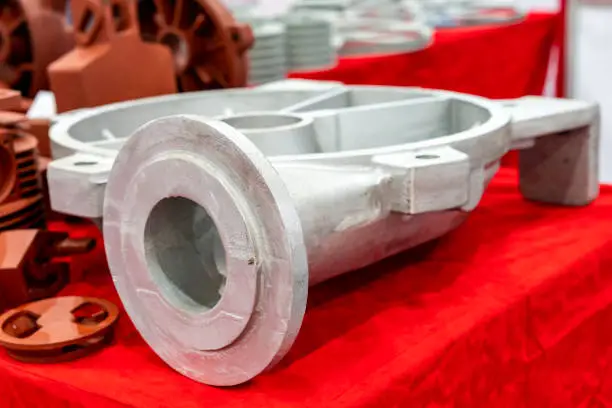

Common Types of Defects in Low Pressure Cast Parts

Knowing the different types of defects helps quality teams come up with good checking procedures and ways to stop problems before they happen. Because of how the metal is made, some types of defects are more common in low-pressure cast parts than others.

Porosity and Gas Entrapment

Porosity shows up as small holes spread out in the casting structure or grouped together in certain places. Gas porosity happens when hydrogen that was dissolved in melted aluminum comes out of solution as it cools. This creates tiny bubbles that get stuck in the metal matrix. This flaw lowers the mechanical strength and makes leak tracks in parts that hold air.

When the filling speed is higher than what is ideal, turbulence-induced porosity happens. This traps air at the metal front. One way to find things is to use radiography testing that meets ASTM E155 standards. This shows patterns of empty spaces inside things that can't be seen from the outside. Parts that are going to be heated to T6 are especially at risk because solution treatment makes gas pockets grow, which causes surface burns.

Shrinkage Cavities and Voids

Shrinkage flaws show up when areas that are contracting in volume during solidification don't get enough liquid metal. When aluminum alloys go from liquid to solid, they usually shrink by 6 to 7 percent. If the filling pressure isn't kept high enough throughout the solidification window, holes form in thick parts or areas that aren't heated up.

Along the geometric middleline of long sections, where solidification fronts meet, centerline shrinking shows up. Microshrinkage is spread out in the structure and shows up as tiny, linked holes that can only be seen under a microscope. These flaws have a big effect on the wear resistance of parts that are constantly moving, like suspension knuckles and control arms.

Oxide Inclusions and Slag Contamination

When liquid aluminum comes into contact with oxygen in the air, oxide films are formed. These are thin, brittle layers that get folded into the casting when the mold is filled. These non-metallic elements drive stress and create places where cracks can start. Controlled low-pressure casting filling has smooth flow, which makes oxide formation much less likely than unstable pouring methods.

Slag pollution in low pressure casting comes from furnace dross or not filtering metal well enough. These bigger flaws hurt the finish on the surface and might show up when the part is being machined. Spectroscopic study of returned faulty parts often shows high iron levels or other impurities that point to contaminated feedstock. These contaminants are kept to a minimum by ceramic foam filter and degassing systems that work right.

Cold Shuts and Flow Lines

Cold shuts happen when two or more different metal streams don't join together completely, leaving a seam or weak spot in the casting that can be seen. This happens when the temperature of the metal goes below the liquidus point before the space is fully filled, or when the rate of filling is too slow to keep the right temperature conditions at flow fronts that are coming together.

Flow lines show up as designs on the surface and show where solidification is happening or where temperature differences are happening during filling. Even though they don't look good, small flow lines might not be dangerous to the structure. Deep flow marks, on the other hand, show serious problems with heat control that need to be fixed right away. Parts with complicated shapes and long flow lines are more likely to fail.

Cracks and Hot Tears

Hot tears form in the last steps of solidification when thermal contraction forces are higher than the semi-solid metal's tensile strength. These flaws usually show up where there are sharp corners, geometric changes, or mold limits that stop the material from naturally contracting. The makeup of the alloy has a big effect on how easily it tears when heated, and some types of aluminum need different ways to handle solidification.

Cold cracks appear after the material has completely hardened, generally when the part is ejected or handled afterward. Mechanical shock and residual loads from uneven cooling work together to spread cracks. This risk is lessened by stress-relieving heat treatments and better release processes. In aerospace uses, surface-breaking cracks that can't be seen with the naked eye must be found using dye penetrant or fluorescent screening.

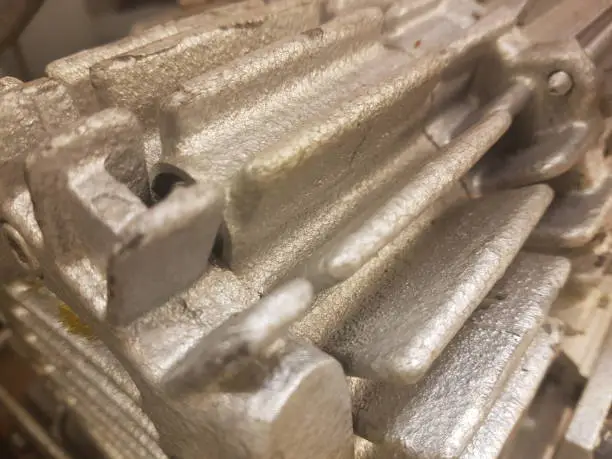

Causes and Root Analysis of Common Defects

Systematic root cause analysis shows that errors usually happen when the properties of the material, the factors of the process, and the design of the tool interact with each other. To deal with these issues, the whole production system needs to work together to pay attention to them.

Material and Metallurgical Factors

The chemistry of an alloy has a big effect on how it casts and how likely it is to have defects. A356 aluminum alloy, which has 7% silicon added to make it more fluid, is mostly used in cars because it is easy to cast and doesn't crack after being heated. When the iron content is kept below 0.15%, needle-like beta-phase formation is stopped, which lowers the flexibility and bending values.

Adding strontium to the eutectic silicon structure changes big, rigid plates into small, round particles, which makes the mechanical qualities much better. When you add titanium and boron to grain to improve it, you get smaller microstructures that are better for feeding. The rate of defects is directly related to how clean the metal is. For example, to avoid porosity, degassing processes must lower hydrogen levels below 0.15 ml per 100g of aluminum.

Process Parameter Optimization

During the pumping stage in low pressure casting, pressure application curves control how the filling works. Too much pressure at the start causes turbulence and gas trapping, and not enough pressure during solidification leads to flaws in shrinkage. Modern PID-controlled systems change the pressure in real time to keep the metal moving at the right speed at the gate opening, which is usually between 0.4 and 0.6 m/s.

Managing the mold's temperature affects both the finish of filling and the progress of solidification. By preheating the dies to 200–250°C, you can make sure that the metal flows smoothly into thin sections and solidifies in a way that faces the feeding channels. To keep feed paths from freezing too soon, temperature differences between thick and thin parts must be carefully handled. The ideal pouring temperature for aluminum alloys is between 680°C and 720°C, which strikes a balance between flexibility and gas absorption.

Tooling Design and Gating Configuration

The shape of the gates affects the flow patterns, filling speed, and temperature differences inside the casting. Bottom-fill setups naturally lower turbulence compared to top-pouring ways because they are part of the low-pressure casting process. The position and size of the gates directly affect the speed of the metal. Gates that are too small cause jetting and damage, while gates that are too big make feeding less efficient.

The placement of the risers makes sure that there is enough metal to reach the last areas that are solidifying. Thermal modeling tools can tell you where the hot spots are that need extra food. Placing chillers in certain areas speeds up the cooling process and directs solidification toward pipe connections. The choice of die finish affects how fast heat moves and how the metal reacts with the shape. Back-pressure that makes it hard to fill the whole space is avoided by using the right opening.

Effective Solutions and Best Practices for Defect Reduction

By optimizing processes, upgrading tools, and making quality systems better, structured improvement programs get rid of errors. To be excellent at manufacturing, everyone involved in planning, production, and checking must be dedicated.

Advanced Process Control Technologies

Real-time monitoring tools for low pressure casting keep an eye on important factors during the whole casting process and let you know right away if conditions change from what was expected. Using thermocouples, pressure sensors, and fill-time readings, full process signatures are made for each part. Statistical process control finds patterns before the number of defects goes up. This lets changes be made proactively instead of after the fact.

Automated dosing systems keep the alloy's chemistry and treatment amounts exact, so there is no variation caused by the user. Closed-loop furnace control keeps the melt temperature stable within ±3°C, which makes sure that the flexibility and gas solubility properties stay the same. Manufacturers of modern low-pressure casting tools have built-in touch screens and recipe management systems that make it easy to switch between recipes quickly while still following the process. Advanced foundries are different from regular ones because they have these technology features.

Design for Manufacturability Principles

Casting engineers and component designers work together to review the design and find flaws before investing in tools. A uniform wall thickness lowers the risk of hot spots and the shrinking that comes with them. Gradual changes between sections lower the risk of stress buildup and hot tears. Strategically placing parting lines keeps them away from important useful areas and makes trimming easier.

During the design phase, simulation software checks filling patterns, guesses solidification processes, and finds possible flaw locations. Computational fluid dynamics shows turbulence zones that need gates to be moved or flow control features to be added. Thermal research figures out the best size and placement of the risers. The development processes are shorter and the costs of making prototypes are lower with these digital tools.

Quality Assurance and Inspection Protocols

Non-destructive testing methods make sure that production parts are internally sound without breaking them. According to ASTM E155 standards, a radiographic check finds holes, shrinking, and inclusions in the whole casting volume. Criteria for acceptance depend on the use. For example, aircraft parts usually need Level 1 or 2 rates, while industrial parts may be able to handle Level 3.

Leak testing with air pressure decay methods makes sure that pressure-holding parts like valves and housings are solid. Most of the time, test pressures are higher than service conditions by safety gaps that are written into engineering standards. Coordinate measuring tools are used for dimensional inspection to make sure that geometric tolerances are met, which are usually kept to ISO 8062 CT6–CT7 grades. Before a product is released for production, first-article inspection records list all of its dimensions and metal properties.

Conclusion

To keep low pressure casting parts from having flaws, you need to know a lot about metallurgical principles, process factors, and quality standards. Porosity, shrinking, inclusions, cold shuts, and cracks are all caused by different issues that can be fixed with focused actions. Consistent quality is built on clean materials, process settings that work best, and strong equipment designs.

Manufacturers can get failure rates well below 1%, even for complicated, safety-critical parts, thanks to advanced process tracking, simulation-validated designs, and strict inspection procedures. It is better for procurement teams to compare providers based on how well they can stop defects than just comparing prices. Partnerships that work well combine scientific knowledge, the ability to use the right tools, and an attitude of constant improvement to make sure that reliable parts are made that meet the strict needs of the automotive, aerospace, and industrial sectors.

FAQ

What are the most critical defects affecting component performance?

The biggest threat to the structure's stability is shrinkage holes and porosity, especially in parts that are loaded and unloaded over and over or that are under a lot of pressure. These breaks inside the material cause stress cracks and lower the cross-sections that can hold weight. In the same way, oxide inclusions damage mechanical qualities by making stress accumulation points. Cold shuts mean that there is no fusion at all, which basically makes internal cracks that spread when the structure is loaded.

How can design modifications reduce casting defects?

Having walls that are all the same thickness stops hot spots that cause shrinking flaws. Large fillet radii at section changes lower the risk of hot tearing and load concentration. Putting gates in the right places makes sure that the flow is smooth and laminar, which reduces turbulence and oxide formation. Adding draft angles makes it easier to remove parts without putting too much mechanical stress on them, which could cause cold cracks to spread.

Which inspection methods provide the most reliable defect detection?

Radiographic testing is still the best way to find internal holes, shrinking, and inclusions in the whole casting volume. Leak testing makes sure that pressure-handling parts are working properly. Ultrasonic inspection can find breaks in the ground in thick layers where x-rays might not be able to. Dye penetrant shows cracks that go through the surface that can't be seen with the naked eye. Comprehensive quality programs use a number of different methods, which are chosen based on how important the parts are and what the application needs.
