Industry Standards for Quality Control in Low Pressure Casting

When it comes to low-pressure casting, quality control is based on widely accepted standards that make sure parts work well and are reliable in important industries. Low-pressure casting uses controlled air pressure between 0.02 and 0.1 MPa to fill molds with liquid metal, usually magnesium or aluminum alloys. This makes parts that are dense, can be heated, and have few holes. Industry standards like ISO 9001, ASTM B618, and ASTM E155, along with sector-specific certifications like IATF 16949 for automotive and NADCAP for aerospace, set the standards that engineers and procurement professionals use to check the skills of suppliers and the quality of products throughout the manufacturing process.

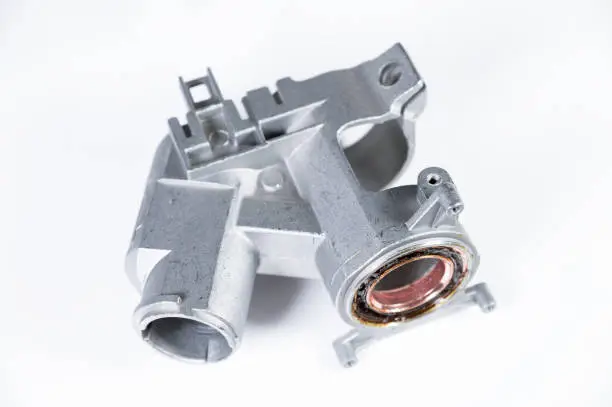

Understanding Quality Control Challenges in Low Pressure Casting

Common Defects and Their Impact on Product Integrity

Metal casting processes always have problems that make it hard to trust the parts they make. Porosity is still the most common flaw. It shows up as tiny holes that lower tensile strength and make it harder to use in pressure-tight situations like hydraulic lines and motor housings for electric vehicles. Cold shuts happen when two metal fronts meet without properly joining together. This makes the edges weak, and they break when the load is changed. Inclusions, which are oxides or foreign particles that get caught, act as stress concentrators and start cracks over time. These flaws in the way metal is made have terrible effects on support parts for cars and parts of spacecraft that hold things together. If they suddenly break, terrible things could happen.

Root Causes of Quality Issues in Manufacturing

Material differences are one of the most important problems. When the chemistry of an aluminum alloy doesn't match the specs—for example, if the iron content is higher than 0.15% or there isn't enough strontium modification—brittle intermetallic phases form in the casting that make it less flexible. Inaccurate temperature and pressure controls have a direct effect on how the fill behaves. If the melting point goes below the ideal ranges during transport, solidification happens too soon, which causes flow lines and errors. During the filling cycle, changes in pressure cause turbulence that traps air and oxides that would have stayed in the furnace tank otherwise.

These material and process factors are made worse by flaws in the mold design. When gating systems aren't working right, changes in velocity happen that mess up laminar flow, and when releasing isn't working right, gases get stuck in the hollow. Poor placement of cooling channels causes thermal differences that cause problems with directional solidification, making it impossible to feed thick parts that tend to shrink. Operator mistakes, like using the wrong die finish or letting go of the pressure too soon, add to the inconsistency that makes the process less consistent.

Compliance with International Quality Standards

Compliance with standards is the basis for quality assurance. ISO 9001 is the main standard for quality management. It requires processes to be written down, tools for correcting mistakes, and ways to keep improving. ASTM B618 talks about aluminum alloy permanent mold casts in detail, laying out the ranges of accepted mechanical properties and porosity levels. Radiographic inspection follows ASTM E155 guidelines and uses a sliding scale to rate the internal soundness of casts. This lets engineering teams decide whether to accept or reject them based on how important the application is.

To get IATF 16949 approval, auto providers of low pressure casting must show Production Part Approval Process (PPAP) paperwork like dimensional reports, material certifications, and process capability studies showing Cpk values above 1.33. Aerospace companies need NADCAP approval for non-destructive testing, heat treatment, and chemical processing. Each casting must be closely linked to its original melt groups and processing conditions. These standards set objective factors that people who work in buying use to judge the skills of foundries during the qualification process for suppliers.

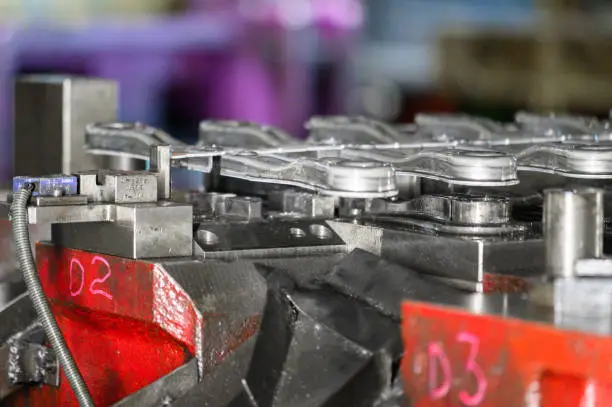

Core Quality Control Methods and Procedures for Low Pressure Casting

Dimensional Verification and Visual Inspection Protocols

Verification of the dimensions starts as soon as the casting is taken off and cooled. Coordinate measuring tools check important features at set rates, comparing the results to CAD nominal dimensions and the tolerance bands described in ISO 8062 CT6–CT7 classifications. When these automatic systems track measurement trends across production lots, they make statistical reports that can be used to find tool wear or thermal drift early, before parts go beyond what is allowed by specification.

Visual inspection is done in controlled lighting, with trained testers looking at the surface finish, parting line flash, and visual flaws against standards that have already been agreed upon. In its as-cast state, the surface roughness is usually between Ra 3.2 and 6.3 micrometers, making it perfect for uses that don't need a lot of post-machining. When refusal rates go above normal levels, defect maps show surface irregularities and feed that information into root cause analysis.

Real-Time Process Monitoring and Equipment Calibration

These days, foundries use monitors all the way through the casting process to make closed-loop control systems that react right away to changes. There are thermocouples in the holding furnace and at the mold entry point that check the melt temperature. If the numbers fall outside of the process windows, alarms go off. Pressure sensors follow the air fill curve and make sure that the controlled rise profile keeps the gate velocity steady between 0.3 and 0.5 meters per second. This is the best range for balancing the speed of mold filling with the risk of turbulence.

IoT-enabled devices send information about their performance to central dashboards where production workers can keep an eye on many tools at once. Predictive maintenance algorithms look at shaking patterns from electric motors and hydraulic systems to plan maintenance work that needs to be done before a part fails and stops production. Schedules for calibration are based on what the maker suggests and what the government requires. At set times, pressure gauges, load cells, and temperature instruments get certified calibration, which keeps the accuracy of the measuring system within ±1% of reading.

Statistical Process Control and Continuous Improvement

Statistical process control turns measurement data into information that can be used. Control charts show important features like tensile strength, physical features, and porosity grades next to upper and lower control limits that were found through process capability studies. When data points get close to warning limits or show trends that aren't random, quality teams start control actions and investigation processes right away, so that customers don't get faulty parts.

Six Sigma methods for low pressure casting give you an organized way to solve problems. DMAIC projects (Define, Measure, Analyze, Improve, and Control) deal with long-lasting quality problems by using statistics to find their root causes and putting permanent fixes in place. Failure Mode and Effects Analysis (FMEA) events bring together teams from different departments to look at possible failure mechanisms and rate risks based on how bad they are, how often they happen, and how easy they are to spot. Then, changes are made that get rid of high-risk scenarios before they happen in production.

Advanced Quality Assurance Technologies and Industry Innovations

Digital Simulation and Predictive Modeling

Process development used to be based on trial and error, but casting modeling software has changed that to science-based improvement. Before cutting tool steel, finite element analysis models can predict how the melt will move, how it will solidify, and how heat stress will build up. Engineers virtually try different gate designs by changing the size of the runners and where the vents are placed to get rid of known flaws. This shortens the development process from months to weeks.

Digital twins make virtual versions of real foundries, going beyond the initial planning phase of modeling. These models take in real-time sensor data and compare it to what they thought the behavior would be. When deviations happen, alerts are sent out right away so that problems like die coatings that are wearing off or temperature controls that are moving can be found before the failure rate goes up. Predictive analytics use production data from the past to find links between process factors and quality results that a person might miss.

Artificial Intelligence in Defect Detection

Machine learning systems can now find flaws in castings just as well as human testers. After being taught on thousands of x-ray images, convolutional neural networks can consistently classify the severity of porosity, so there is no need for biased analysis. These AI systems can process X-ray scans in seconds, marking troublesome areas for more inspection while automatically accepting parts that meet acceptance standards. This speeds up the inspection process without lowering the quality.

Computer vision systems for low pressure casting look at the surface's features from different lighting points and pick up on small changes in structure that the naked eye can't see. Pattern recognition finds flaw signs, like the difference between cold shuts and shrinkage cavities, and sends parts that look fishy to the right repair or scrap streams. These systems can get better at what they do as they process more samples because they can learn from them and adapt to the different types of defects that happen in different production settings.

Automation and Robotics in Quality Verification

Robotic sampling gets rid of the differences that people make in harmful testing methods. Automated sawing stations take test coupons from specific spots on castings. This makes sure that the samples are always prepared the same way, which changes the mechanical properties that are tested. Using robotics to move specimens through heat treatment cycles and testing tools keeps exact timing and handling routines that are hard to keep up across shifts and operators when doing things by hand.

Automated leak testing units put air pressure on sealed casting holes and measure how quickly the pressure drops. This is more accurate than using a bubble tester. Parts that pass set leak rates move forward automatically, while failures are sent to quarantine areas. This makes accept/reject choices that are objective and don't depend on the operator's opinion. This repeatability is very helpful when testing new tools or changes to the process because it gives engineers statistically significant data sets that help them make decisions.

Emerging Trends in Sustainability and Traceability

More and more, industry standards talk about how products affect the climate and how clear the production chain is. Carbon footprint tracking keeps track of how much energy is used for each casting, which leads to investments in electric melting ovens and systems that reuse waste heat. Closed-loop recycling programs cut down on the use of new metal. Scrap metal is returned and sorted by alloy family to keep chemistry under control and reduce the effects of extraction.

Blockchain-based traceability systems make permanent records that connect certified raw materials, process factors, and inspection results to final parts. This digital chain of custody meets the lifetime traceability needs of both the automobile and aircraft industries. It also allows for quick responses when failures in the field require root cause investigations across multiple production lots. The openness helps with following the rules about conflict minerals and making sure that suppliers are responsible, which is what buying policies require.

Conclusion

Standards for quality control in low-pressure casting are what make sure that parts work properly in automobile, industrial, electrical, and aircraft settings. Knowing about common flaws and what causes them lets you come up with creative ways to fix them, and following ISO, ASTM, and industry-specific certifications sets objective standards for acceptance. Tough inspection procedures, real-time process tracking, and statistical methods keep a close eye on the mechanical features and accuracy of the dimensions. Simulation, artificial intelligence, and automation are some of the new technologies that are improving quality assurance. These technologies help meet the strict needs of safety-critical components. When procurement professionals use these standards to choose suppliers, handle contracts, and create joint improvement programs, they build strong supply chains that produce consistent, high-quality castings that meet the needs of manufacturers around the world.

FAQ

What distinguishes low pressure casting quality standards from high pressure die casting?

When you use controlled filling in low-pressure casting, you get casts with a lot less porosity than when you use high pressure die casting. Die casting makes thin walls and quick cycles possible, but the very fast filling speeds trap gases that stop the next heat treatment from working. Counter-pressure methods fill molds at speeds of 0.3 to 0.5 m/s, which keeps the flow smooth and stops air from getting trapped. This makes parts that can be heated to T6 temperatures, which gives them mechanical qualities that can't be achieved with die casts. These differences are reflected in the quality standards. For example, ASTM E155 requires radiography inspection of low-pressure casting to make sure they are internally sound, while die castings focus on repeatability of dimensions and surface finish.

How do certification requirements differ across industries?

Automotive providers must show that they are in line with IATF 16949 by providing PPAP paperwork that shows they can do the process. Aerospace companies need NADCAP approval for certain processes that involve molds and can be fully traced back to the right material temperatures and processing conditions. Buyers of industrial tools usually accept ISO 9001 certification along with material test results that prove the chemical and mechanical properties of the material. Buyers in the electrical industry put a lot of weight on conductivity tests and corrosion protection validation that meets UL or IEC standards. These different needs come from the fact that different application areas have different levels of risk and different rules and regulations.

What inspection frequency should procurement specifications require?

Inspection plans find a mix between lowering risks and keeping costs low. Critical features that affect safety or function require a full review, which includes measuring the sealing surfaces, checking for leaks in areas that hold pressure, and looking for flaws on the surface. For x-ray tests, sampling plans like ISO 2859 acceptable quality levels are usually used. These plans look at average numbers based on lot sizes and past quality performance. In mechanical testing, destructive samples are taken from production molds or separately cast test bars at regular intervals set by the customer or industry standards. These intervals can be anywhere from one sample per heat to one sample per shift, based on how important the application is.

Partner with Fudebao Technology for Superior Low Pressure Casting Solutions

When it comes to making precision parts that meet the highest worldwide quality standards, Zhejiang Fudebao Technology is the standard for metal foundries. Our fully integrated manufacturing plant has low-pressure casting machines, high-speed CNC machining centers, and a wide range of testing tools. These tools support the whole production process, from controlling the melt to delivering the finished part. We work with car tier-1 suppliers, industrial equipment OEMs, and electrical sector users who need approved material traceability and process validation. Our measurements can be accurate to ±0.05mm, and we can provide full PPAP documentation.

Our quality management system is based on ISO 9001 standards and uses statistical process control and ongoing improvement to make sure that all of our production runs have the same level of quality. Coordinate measuring machines, radiography testing, and leak verification systems are some of the more advanced inspection tools that can be used. These check for internal health and pressure-tight integrity. Email our engineering team at hank.shen@fdbcasting.com to talk about the specifics of your program. We'd love the chance to show you how our experience as a low-pressure casting supplier and our manufacturing skills can help improve your supply chain while meeting your needs for quality, dependability, and competitive value.

References

American Society for Testing and Materials. (2021). "ASTM B618: Standard Specification for Aluminum-Alloy Permanent Mold Castings." ASTM International, West Conshohocken, PA.

International Organization for Standardization. (2020). "ISO 8062-3: Geometrical Product Specifications – Dimensional and Geometrical Tolerances for Moulded Parts – Part 3: General Dimensional and Geometrical Tolerances and Machining Allowances for Castings." ISO, Geneva, Switzerland.

American Society for Testing and Materials. (2019). "ASTM E155: Standard Reference Radiographs for Inspection of Aluminum and Magnesium Castings." ASTM International, West Conshohocken, PA.

International Automotive Task Force. (2016). "IATF 16949: Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations." IATF, Southfield, MI.

Performance Review Institute. (2022). "NADCAP Aerospace Quality System: AC7004 Accreditation Criteria for Non-Destructive Testing Facilities." PRI, Warrendale, PA.

Campbell, J. (2015). "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design." Butterworth-Heinemann, Oxford, United Kingdom.
