Precision Aluminum Die Cast Parts Achieve Complex Shapes with Consistent Quality

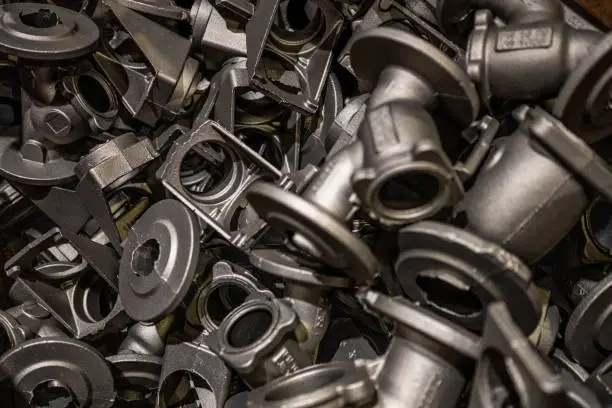

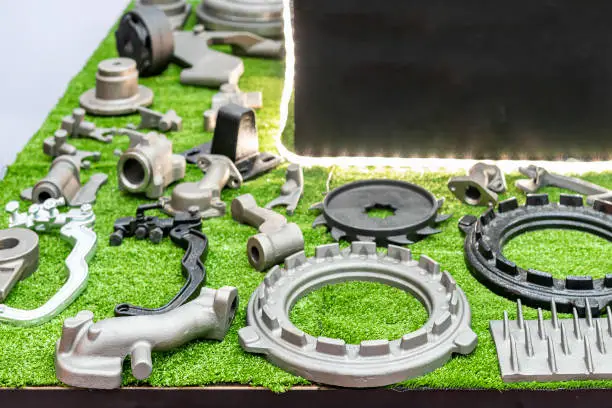

Aluminum die cast parts represent a transformative manufacturing solution that enables the creation of intricate geometries while maintaining exceptional dimensional stability across high-volume production runs. This high-pressure die casting process forces molten aluminum alloys into precision-engineered steel molds, producing components with tight tolerances typically within ±0.002 inches per inch according to NADCA standards. Industries ranging from automotive to aerospace rely on these components because they deliver superior strength-to-weight ratios, excellent thermal management properties, and consistent repeatability that alternative methods struggle to match.

Understanding Aluminum Die Cast Parts and Their Advantages

What Makes Die Casting Ideal for Complex Geometries

With injection forces of more than 30,000 psi, the high-pressure die casting method can fill even the most complicated mold cavities fully with molten metal. With this feature, engineers can combine several completed parts into a single casting, which gets rid of the need for extra fastening steps and shortens the total assembly time. Transmission housings for cars that used to be made up of fourteen different machined parts are now made as a single die-cast structure with mounting bosses, cooling lines, and reinforcement ribs built in.

Material Properties That Drive Performance

Different common aluminum alloys used in die casting are used for different things. The tensile strength of A380 metal is about 47 ksi, which makes it perfect for general-purpose housings and braces. It is also very good at flowing and die-filling. A383 has a slightly longer die life and less iron pickup during long production runs. When more mechanical strength is needed, A356 metal can give you more than 30 ksi of yield strength after being heated, but you have to be more careful with the process. These metals have a density of about 2.71 g/cm³, which is about a third of that of steel. This means that they can be used to reduce weight without affecting the strength of the structure.

Thermal and Electrical Benefits

Because aluminum naturally conducts heat at a rate of about 96 W/m-K, castings can be used as heat sinks. Inverter housings for electric vehicles are a good example of this benefit. The casting itself works as the main heatsink, moving heat away from sensitive power electronics through carefully planned fin patterns that are cast directly into the part. Because the material is electrically conductive, it also blocks electromagnetic interference well, keeping radio frequency noise from damaging sensitive electronics in telephones and industrial control systems.

Cost Efficiency Through Process Integration

Die casting combines steps in the production process that would normally need to be done separately. Surface features like mounting holes, snap fits, and labeling recesses come out of the mold already fully formed, which cuts down on or gets rid of the need for machining. Threaded inserts can be cast in place, and slides and lifters in the design of the tool make it possible to make complex undercuts. When production rates go over the initial investment threshold for tools, which is usually between 1,000 and 2,000 units, this combination cuts costs per unit by a huge amount.

Precision Achieved Through Advanced Design and Quality Control

Mold Design Strategies for Dimensional Stability

To get consistent quality, you need to start with highly advanced tooling engineering. When designing a mold, the makers must take into account that aluminum shrinks about 0.005 inches per inch when it cools from the pour temperature to room temperature. Before steel is machined, computer-aided engineering simulations are used to guess the fill patterns, find possible porosity zones, and find the best gate locations. Where the cooling channels are placed in the die has a direct effect on cycle time and the uniformity of the dimensions. Even cooling stops warping in thin-walled parts.

Preventing Common Casting Defects

In pressure-tight situations, like hydraulic valve bodies or sealed electrical enclosures, porosity is still the main issue. Vacuum-assist die casting methods remove air from mold holes before metal is injected, which makes it much less likely that gases will get trapped. Squeeze pins add extra pressure to thick parts while they harden, making up for shrinking and reducing the number of empty spaces inside. When complete hermeticity is needed, resin impregnation methods close up any remaining microporosity. This lets parts pass leak tests with leak rates as low as 0.1 cc/min.

Advanced Inspection Protocols

Real-time X-ray inspection systems look at important castings while they are being made and find flaws below the surface before the parts are finished. Coordinate measuring machines check complicated three-dimensional shapes against GD&T standards. They do this by making sure that hole patterns line up within the micron-level accuracy needed for automated assembly. Before each shift of production, optical emission spectroscopy checks the melt chemistry to make sure that the amounts of iron, copper, and zinc stay within the limits that keep the metal from becoming brittle or less resistant to rust.

Comparison With Alternative Manufacturing Methods

Sand casting produces larger components with lower tooling costs, but its surface finish and dimensional accuracy are generally not as high as those achieved through die casting. Permanent mold casting provides better mechanical properties than sand casting, but it cannot achieve the same level of geometric complexity and production efficiency as high-pressure casting. Investment casting can create extremely detailed features and complex shapes, but it is usually only economical for smaller production volumes. CNC machining from billet offers the highest dimensional precision, but it generates significant material waste and requires longer processing times. In comparison, aluminum die cast parts provide an excellent balance of precision, production speed, lightweight performance, and cost efficiency, making them suitable for automotive components, electronics housings, industrial equipment, and consumer products. Metal castings also offer advantages over injection-molded plastics, including better thermal conductivity, higher structural strength, improved durability, and stronger electromagnetic shielding capability. These benefits make aluminum die cast parts a preferred solution for applications requiring lightweight materials, corrosion resistance, high-volume manufacturing, complex geometries, and reliable long-term performance. By combining advanced high-pressure die casting technology, aluminum alloy materials, precision manufacturing, and efficient production processes, manufacturers can achieve high-quality components that meet demanding engineering requirements.

Selecting the Right Aluminum Alloy and Manufacturer for Your Project

Alloy Selection Criteria

The choice of material depends on the specific requirements of the final product and its operating environment. A380 is commonly selected for automotive structural components because it provides a balanced combination of mechanical strength, castability, and cost efficiency. These properties allow manufacturers to meet crash performance requirements while producing thin-wall designs that reduce vehicle weight. For aluminum die cast parts used in automotive applications, selecting the correct alloy helps achieve durability, dimensional stability, and lightweight performance. Electrical housings in renewable energy systems may require ADC12 aluminum alloy because it offers improved corrosion resistance in outdoor environments where salt spray, moisture, and temperature fluctuations occur. Heat-treated A356 is often used for aerospace applications because its higher strength and enhanced mechanical properties support demanding aircraft requirements, although it requires more complex processing steps and stricter quality standards. By choosing suitable aluminum die cast parts materials based on strength, corrosion resistance, thermal performance, weight reduction, and manufacturing requirements, engineers can develop reliable components for automotive systems, aerospace structures, industrial equipment, and advanced electronic applications. This material selection approach ensures better product performance, longer service life, and improved efficiency in high-pressure die casting, lightweight manufacturing, and precision aluminum component production.

Manufacturer Qualification Essentials

When evaluating possible providers, you need to look at a lot of different aspects of their abilities. ISO 9001 certification shows basic quality management systems, while IATF 16949 certification covers the needs of the car industry, such as PPAP documentation and ongoing process tracking. A production capacity assessment should check to see if the right-sized machines are available—for example, parts that need to be installed in large areas need presses that can hold more than 800 tons—and look at maintenance records to see how reliable the equipment is. Lead times and transportation costs are affected by geography, but modern supply chain management often makes up for this.

Technology and Equipment Capabilities

Major makers put money into technologies that work together and go beyond basic casting. Post-casting processes can be done precisely with high-speed CNC machining tools that can work on multiple axes. On important surfaces, tolerances can be as low as ±0.05mm. Parts that need better mechanical qualities or less porosity can be made with low-pressure casting tools. Surface treatment facilities, such as powder coating lines, e-coating systems, and chromate conversion processes, protect against corrosion and improve the look of parts all in one step, from melting the metal to delivering the finished product.

Verification Through Due Diligence

Client examples demonstrate how well a supplier performs in real-world applications, rather than simply showing the capabilities described in marketing materials. Requesting examples of similar projects helps confirm that the manufacturer has experience handling comparable levels of complexity, material requirements, production volumes, and quality standards. This is especially important when sourcing aluminum die cast parts, where precision, consistency, and reliability directly affect the performance of automotive components, industrial equipment, electronics housings, and other critical applications. Site visits provide the opportunity to evaluate actual factory operations, equipment maintenance practices, production processes, and workforce expertise. Reviewing sample parts allows engineering teams to verify true manufacturing capabilities by checking dimensional accuracy, surface finish quality, mechanical properties, and overall component performance through independent testing. These evaluations help ensure that suppliers can deliver high-quality aluminum die cast parts with advanced die casting technology, strict quality control, efficient production management, and reliable supply chain support. By assessing previous projects, manufacturing facilities, prototype samples, and technical expertise, companies can reduce production risks and select partners capable of providing precision aluminum components, lightweight metal solutions, and long-term manufacturing value.

Procurement Considerations for Aluminum Die Cast Parts

Understanding Pricing Structures

Die casting projects have two types of costs: one-time engineering costs and costs for making each unit. The highest upfront cost is the tooling, which depends on the size, complexity, and estimated output volume of the part. Tooling budgets for simple two-cavity molds for small parts may not be very high, but tooling budgets for multi-slide dies for complex housings with many undercuts are much higher at the start. As more units are made, the cost of each piece goes down because the tooling is amortised over more units. This means that correct volume projection is very important for total cost modeling.

Prototyping and Low-Volume Options

More and more, product development processes need real prototypes before they can move on to making production tools. Some companies offer soft manufacturing options that use aluminum or pre-hardened steel molds that can handle between a few hundred and a few thousand shots. These options let you test working parts at a lower cost per tool. Another option is to use CNC machines to make samples from billet stock. These don't have the exact material qualities and surface features of production castings, but they are better than nothing. With additive manufacturing, models are made for short-run sand casts. This closes the gap between testing the idea and starting full production.

Customization Through OEM Services

Original equipment maker agreements let designers work together to make parts that work better and are easier to make. During the development process, experienced suppliers offer design-for-manufacturing insights by suggesting changes to features that enhance casting quality or lower the complexity of tools without affecting performance. When people work together, they can often find ways to combine parts, add extra functions, or suggest cheaper alloy options that still meet requirements and keep costs down.

Setting clear communication rules about requirements, quality standards, and delivery dates is helpful for procurement teams. There are no misunderstandings when there are detailed models with full GD&T callouts. Material certificates, first-article inspection records, and ongoing statistical process control data make it clear how consistently the products are made. Putting these requirements for documentation into purchase agreements helps keep quality standards high throughout the lifecycle of a product.

Ensuring Long-Term Performance and Reliability of Aluminum Die Cast Parts

Design Features for Durability

Longevity in parts starts with careful engineering that considers how components will be used throughout their service life. Large fillet radii at internal corners reduce stress concentrations that can lead to fatigue cracks, while consistent wall thickness minimizes differences in cooling rates that create residual stresses. Ribs and gussets are strategically positioned through finite element analysis (FEA) to reinforce areas exposed to operational loads without adding unnecessary weight. These design principles are essential for aluminum die cast parts, helping improve durability, structural strength, and long-term reliability in demanding applications. When used in automotive components, industrial equipment, electronics housings, and lightweight mechanical systems, well-designed aluminum die cast parts can withstand repeated loading cycles, vibration, thermal changes, and harsh operating environments. By combining optimized geometry, high-quality aluminum alloys, precision die casting processes, advanced simulation technology, and strict quality control, manufacturers can produce components with improved fatigue resistance, dimensional stability, and extended service life. These advantages make aluminum die casting a preferred solution for durable, cost-effective, and high-performance metal components across multiple industries.

Surface Protection Systems

Raw aluminum casts form natural oxide layers that guard against corrosion to a certain extent, but harsh conditions require designed surface treatments. Powder coating makes long-lasting organic barriers in bright colors that work for visible parts. It can withstand salt spray tests for more than 1,000 hours, which is what ASTM B117 standards say should happen. E-coating covers everything evenly, even gaps and holes inside, so it meets the requirements of car corrosion guarantees. Chromate conversion coatings provide thin protective layers that keep the accuracy of measurements while improving paint adhesion. The choice of treatment relies on how the person wants it to look, how much contact it gets, and how it works.

Monitoring Performance in Service

Field data gathering helps design and production methods for castings keep getting better. When parts don't last as long as they're supposed to, warranty returns and failure analysis help find out why. Metallurgical examination can tell the difference between manufacturing flaws and design limitations or incorrect use. This feedback process leads to iterative improvements that make the product more reliable, lower the cost of warranties, and boost customer trust in future versions of the product.

Emerging Technology Trends

The industry is still making progress on a number of fronts that point to better skills. Real-time process monitoring with cavity sensors gives you a new level of information about fill patterns and how solidification works, so you can make changes right away that keep the quality high. As vacuum-assist technology becomes more common, it lowers the porosity level and makes walls thinner. With each generation, simulation software gets more accurate, which cuts down on prototype changes and speeds up time-to-market. Aluminum recycling rates are getting close to 90% thanks to programs that promote sustainability. This is good for customers who care about the environment because controlled remelting methods keep the material's qualities.

Conclusion

Precision aluminum die cast parts have the unique mix of physical complexity, mechanical performance, and consistent output that modern industry needs. The process turns molten metal into final parts with surface qualities and tolerances on dimensions that were previously only possible with a lot of machining. It also combines heat management, structural strength, and electromagnetic protection into a single design. To be successful, you need to choose the right alloys for the job, work with makers that have both expert know-how and quality systems, and know the buying factors that affect the project's cost. We've seen these parts change from simple housings to complex structures with multiple uses that allow new products to be made in the energy, aerospace, industrial, and automotive sectors.

FAQ

Why does aluminum die casting excel at producing complex parts compared to other methods?

Up to 30,000 psi of high injection pressure pushes molten aluminum into every part of the mold, making features that can't be made with gravity-fed methods. This pressure makes it possible to have walls as thin as 1.5 mm, complex textures, and very close margins of ±0.002 inch per inch. With steel tools that can be used again and again, the process stays the same over hundreds of thousands of cycles, making sure that every casting is the same as the last.

What strategies ensure consistent quality in high-volume production runs?

Statistical process control keeps an eye on important factors like melt temperature, injection rate, and cooling time, and sends out alerts when they change. Internal weakness is found by automated X-ray analysis before parts move on to finishing. Coordinate measuring machines check the accuracy of measurements at sample intervals set by control plans. These stacked verification methods find differences quickly, so customers don't get faulty parts.

What lead times should procurement teams expect for custom die-cast projects?

Designing and making a tool usually takes eight to fourteen weeks, depending on how complicated it is. Multi-slide tooling for complicated parts takes longer. It takes an extra two to three weeks for production samples and first-article approval. Once the design is approved, production runs increase or decrease in size depending on what is needed. Cycle times range from thirty seconds for small parts to several minutes for large, complicated castings.

Partner With Fudebao Technology for Your Die Casting Needs

Zhejiang Fudebao Technology has full die casting and machining capabilities and is ready to turn your component needs into precisely made reality. Our facility has high-pressure die casting machines, CNC machining centers, and full surface treatment lines. This means that we can deliver everything from the initial melt to the finished assembly from a single source. We know the exacting standards your projects need because we've supplied precision parts to automakers and international brands, such as HAAS automation equipment. Email our engineering team at hank.shen@fdbcasting.com to talk about your needs and get thorough technical offers. We are a reliable company that makes aluminum die cast parts that promise accurate measurements to within ±0.05mm and full PPAP documentation. Your reputation depends on it.
