Aluminium Die Castings for Lightweight Automotive Components

Aluminium die castings represent a transformative manufacturing approach for automotive lightweighting, utilizing high-pressure injection of molten aluminium alloys into precision steel molds to create complex, dimensionally accurate components. This process delivers exceptional strength-to-weight ratios essential for reducing vehicle mass while maintaining structural integrity—a critical requirement for modern automotive engineering. As global emission standards tighten and electric vehicle adoption accelerates, aluminium die cast parts have become indispensable in producing housings, brackets, engine blocks, and transmission cases that meet both performance and regulatory demands.

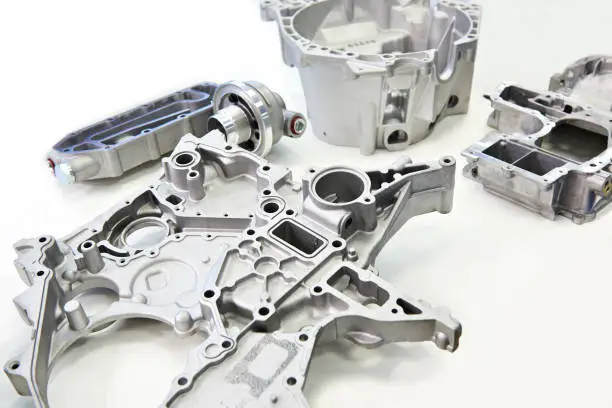

Understanding Aluminium Die Casting in Automotive Applications

More and more pressure is being put on automakers to make vehicles lighter without sacrificing safety or durability. This problem is solved by the die casting process, which presses liquid metal into steel dies that can be used again and again. This makes parts with wall thicknesses as low as 1.5 mm and dimensional accuracy of up to ±0.05 mm. This level of accuracy gets rid of the need for too much post-machining and lets multiple features be built into a single component, which cuts down on assembly time and possible failure points.

Common Aluminium Alloys in Automotive Die Casting

Most of the time, A380, A383, and ADC12 alloys are used in the car industry because they have good fluidity during casting and good mechanical qualities after they harden. The tensile strength of A380 metal is about 315 MPa, and it resists corrosion very well. This makes it a good choice for gearbox housings that are subject to changes in temperature. A383, on the other hand, is better at die-filling complicated shapes, like engine clamps with built-in cooling ducts. It is more common to sand-cast heat-treatable alloys like A356-T6, but more and more they are being die-cast using vacuum-assisted processes to get tensile strengths of more than 280 MPa for structural suspension parts.

Production Workflow and Quality Considerations

The process of die casting is carefully planned. First, the metal is melted at temperatures between 660°C and 720°C. Next, exact injection is done through computer-controlled systems that keep an eye on the fill rate and cavity pressure. To keep flaws from happening, mould cooling systems that use conformal cooling channels are needed for rapid solidification, which usually ends within seconds. Porosity is still a big problem with quality because gas getting trapped during turbulent filling makes weak spots that hurt mechanical performance. Advanced makers use vacuum die casting technologies that lower the hole pressure to less than 50 mbar before injection. This gets rid of gas gaps and lets parts go through T6 heat treatment to make them stronger. Real-time X-ray inspection and CT scanning make sure that parts are internally sound before they are used in safety-critical applications.

Comparing Aluminium Die Casting with Other Manufacturing Methods

When procurement teams evaluate different manufacturing options, they must consider a wide range of technical, operational, and financial factors. While sand casting can produce larger components with lower tooling costs, its surface roughness is typically between 6.3 and 12.5 μm, whereas die casting can achieve smoother finishes around 1.6 to 3.2 μm, reducing the need for additional finishing operations. This difference can significantly affect the total production cost and may reduce the initial cost advantages of sand casting. Gravity die casting provides a middle option, offering better mechanical properties than sand casting due to more controlled cooling, but it does not provide the same level of high-pressure metal consolidation that improves density, consistency, and dimensional accuracy in pressure die casting. These factors are especially important when selecting aluminium die castings for automotive components, industrial equipment, and lightweight structural applications.

When comparing zinc and magnesium die casting materials, manufacturers must evaluate the advantages and limitations of each alloy system. Zinc alloys such as ZA-8 can achieve tighter dimensional tolerances, often around ±0.025 mm, and require lower injection temperatures, which helps extend die life and reduce tooling wear. However, zinc’s higher density of 6.7 g/cm³ compared with aluminum’s 2.7 g/cm³ makes it less suitable for applications where weight reduction is critical, such as electric vehicles and aerospace systems. Magnesium offers an even lower density of 1.8 g/cm³, providing excellent lightweight performance, but its higher material cost and machining safety concerns limit its use mainly to premium automotive and specialized applications. In contrast, aluminium die castings provide a balanced combination of low weight, strength, corrosion resistance, thermal conductivity, and cost efficiency.

Plastic injection molding is mainly used for non-structural components such as sensor housings, interior trims, and lightweight covers. Although plastics can achieve complex geometries and fast cycle times, they generally cannot withstand continuous temperatures above 150°C, making them unsuitable for many under-hood automotive environments where metal components may operate above 200°C. The comparison with CNC machining shows that these processes are complementary rather than competitive. While CNC milling from billet can achieve superior surface finishes and extreme precision, it is often unsuitable for high-volume production because more than 70% of the original material may become waste. Aluminium die castings are widely used in modern automotive supply chains to create near-net-shape components, while CNC machining is reserved for critical areas such as joining surfaces, sealing locations, and threaded features. By combining high-pressure die casting, aluminum alloy optimization, precision machining, lightweight design, and efficient manufacturing processes, companies can achieve cost-effective and reliable solutions for automotive parts, aerospace components, electronics housings, and industrial applications.

Procurement Insights: Choosing and Sourcing Aluminium Die Castings

To find a good die-making partner, you need to look at more than just the piece prices. ISO 9001 certification sets the bar for quality management systems, but standards that are special to cars are more important. Getting IATF 16949 certification shows that you know how to make control plans, analyse risks using FMEA, and follow the rules for PPAP documentation. These are all skills that are needed to easily fit into OEM supply chains. Environmental certifications like ISO 14001 are being asked for more and more by Tier-1 suppliers. This is because companies are making sustainability commitments that affect supplier scorecards.

Geographic factors include more than just labour costs; they also include technical ecosystem access. Asian suppliers, especially those in Zhejiang and Guangdong provinces in China, offer a wide range of integrated services, including making tools, casting them, and finishing them all under one management. With their own low-pressure casting machines, high-speed CNC machining centers, and full surface treatment lines, facilities like Zhejiang Fudebao Technology show how this combination works. These facilities can deliver everything from molten metal to finished parts all in one place. This vertical merger cuts down on the complexity of transportation and quality risks that come with having a supply chain that is split up.

For projects that need to make a lot of design changes or just-in-time deliveries to assembly plants, North American and European suppliers are closer. When teams are looking at bids, they should ask for specific capability statements that include the largest part sizes that can be made, the range of available tonnage (usually 280 to 4,000 tonnes for car work), and the skills needed for mould development, such as the ability to use simulation software. Lead times depend a lot on how complicated the die is. Two-cavity tools that are easy can be finished in 8–10 weeks, but multi-cavity dies with complicated slides need 14–18 weeks before the first item inspection.

Small-Batch and Prototype Considerations

New platforms for electric vehicles need fast prototyping, which is hard for standard die casting to do on a budget. Modern suppliers fill this gap by using quick-tooling methods with dies made of aluminium or soft steel that can handle 500 to 2,000 shots before they need to be retired. This is enough for validation builds and pre-production runs. Using a mix of 3D-printed sand cores and solid metal dies speeds up the development process by 40 to 50 percent compared to traditional tool paths and makes it possible to make complex internal shapes without having to use a lot of slide mechanisms.

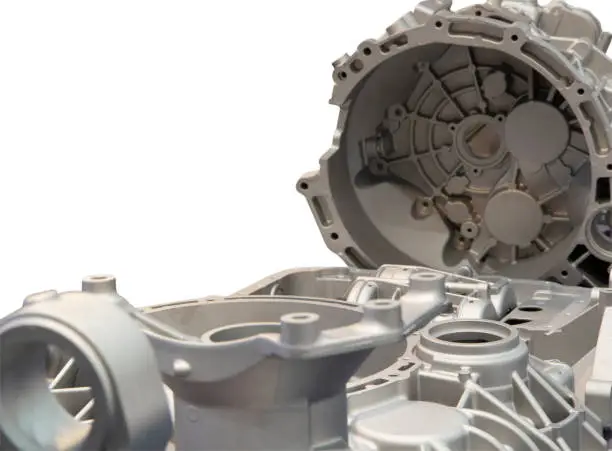

Design Guidelines and Surface Treatment Options for Automotive Aluminium Die Castings

When engineers optimize designs for cast components, they must balance manufacturing limitations with performance requirements. Wall thickness guidelines typically recommend maintaining sections between 2.0 and 4.0 mm because areas below 1.5 mm may experience incomplete filling, while sections above 6.0 mm can develop shrinkage porosity caused by uneven cooling rates. These design principles are especially important for aluminium die castings, where dimensional accuracy, structural reliability, and production efficiency are critical. Draft angles between 1–3 degrees allow components to be removed from molds smoothly without damaging surface quality. Although this appears to be a small design detail, it has a significant impact on tool life, mold durability, and cycle-time consistency during high-volume production.

Ribbing techniques improve structural stiffness under bending loads without adding excessive weight. However, rib thickness should generally remain below 60% of the surrounding wall thickness to prevent sink marks and surface defects. Increasingly, mold manufacturers are adopting conformal cooling channels, which follow the geometry of the component instead of using traditional straight-drilled cooling holes. These advanced cooling systems can reduce cycle times by 15–25% and improve dimensional stability by providing more uniform heat removal. H13 tool steel remains the preferred material for die manufacturing because it provides an excellent balance of hardness, toughness, and thermal fatigue resistance during production runs exceeding 100,000 cycles. These technologies help improve the quality and consistency of aluminium die castings used in automotive components, industrial equipment, and precision engineering applications.

Surface finishing options strongly influence both appearance and functional performance. Powder coating provides excellent protection for chassis components exposed to road debris and environmental conditions. With coating thicknesses between 60 and 120 μm, it can provide corrosion protection exceeding 1,000 hours in salt spray testing according to ASTM B117 standards. Anodizing uses electrochemical oxidation to create harder surface layers, making it suitable for wear-resistant components such as throttle body housings. Type II anodizing typically produces coatings between 5–25 μm, while Type III hard anodizing can create 25–100 μm layers with surface hardness approaching 500 HV. These finishing technologies enhance the corrosion resistance, wear resistance, and visual quality of aluminium die castings.

Through controlled heating and cooling processes, heat treatment improves the mechanical properties of aluminium alloys. Solution heat treatment at 540°C, followed by water quenching and artificial aging at 155°C, creates a T6 temper condition. This process increases the tensile strength of A356 alloy from approximately 160 MPa in the as-cast condition to more than 280 MPa while maintaining 6–8% elongation. For advanced aluminium die castings, heat treatment selection, alloy optimization, and process control are essential for achieving the required strength and durability. As hexavalent chromium conversion coatings become more restricted under REACH regulations, environmental considerations are increasingly influencing finishing choices. Trivalent chromium alternatives and chromium-free treatments, including zirconium-based coatings, are becoming widely adopted in European automotive standards while maintaining strong corrosion resistance. By combining optimized design, advanced tooling, surface treatments, heat treatment processes, and sustainable manufacturing methods, manufacturers can produce high-performance aluminium die castings with improved reliability and long-term value.

Future Trends and Sustainability in Aluminium Die Casting for Automotive Industry

Material selection objectives are changing because of changes in regulations in major car markets. The European Union's CO2 pollution goals require fleet-average reductions to 95g/km, which forces automakers to look for every way to make their cars lighter. Aluminium can be recycled in an infinite number of loops without losing any of its mechanical properties. This is perfect for circular economy ideas because it only needs 5% of the energy used to make aluminium from bauxite ore in the first place.

Electric vehicle architectures bring both new casting opportunities and new challenges. Aluminium die castings are used in high-value uses like battery enclosure structures to protect against electromagnetic fields, control temperature, and protect the structure itself all in one combined part. Tesla was one of the first companies to use giga-casting technology to make whole rear underbody sections as single die-cast pieces. This shows that the process can be scaled up, but it costs a lot of money to buy 6,000-9,000 tonne casting machines to do it again.

The goal of sustainable alloy creation is to increase the amount of recovered material without lowering the performance. Traditional automotive die casting alloys can handle 30 to 40 percent recycled input. Newer formulations made for secondary aluminium sources can handle 80% or more recycled material while still meeting mechanical requirements by controlling the grain structure more precisely. Energy-efficient melting technologies, like regenerative burners and oxy-fuel systems, cut the carbon impact of casting operations by 20–30% compared to traditional furnaces. This makes a real difference in sustainability, which OEMs that care about the environment like.

When suppliers show they care about the environment by sharing their carbon footprint and using green energy, which is checked by a third party, they get an edge in the bidding process. Sustainability metrics are becoming more important on automotive buying scorecards, along with standard performance metrics like quality and delivery. This is because brands have promised to reduce emissions across their supply chains in scope 3.

Conclusion

Aluminium die castings have changed from ways to cut costs to technologies that make next-generation automotive platforms possible. The process offers unmatched combinations of making things lighter, more precise in terms of size, and able to be made on a larger scale. These are all important for meeting the needs of regulatory compliance, performance improvement, and making the business profitable all at the same time. Die cast aluminium parts will play more and more important roles in structure integration, thermal management, and sensor mounting as electric power and self-driving technologies change the way vehicles are built. Procurement professionals and engineering teams that build strong relationships with casting suppliers that use cutting-edge technology put their companies in a good position to take advantage of these new opportunities while navigating the complicated global automotive supply chains.

FAQ

What are typical lead times for automotive aluminium die casting projects?

Lead times are split between the stages of making tools and making things. Depending on the complexity of the part and the number of cavities, die fabrication usually takes 10 to 16 weeks. However, this time frame can be shortened to 6 to 8 weeks using rapid tooling techniques. After the tool is approved, production lead times for first runs are between 3 and 5 weeks. For subsequent orders, the lead times drop to 2 to 3 weeks once manufacturing factors are stable. For projects that need PPAP paperwork, an extra two to three weeks should be set aside for verifying measurements and gathering material certifications.

How does die casting cost-effectiveness compare to alternative processes?

When the annual number is above 5,000 units, die casting is more cost-effective because the costs of the tools are spread out over time and only a small amount of cutting is needed for each piece. Break-even analysis compared to sand casting usually happens at around 3,000 units, but this number can change depending on how complicated the part is. Because it doesn't lose material and takes less time, die casting is cheaper than CNC machining from billet at amounts as low as 500 pieces for complex shapes.

Which aluminium alloys are most widely used in automotive die casting?

In North America, A380 is used mostly in automotive applications because it is easy to cast and doesn't rust. In Asian markets, ADC12 is used for similar purposes but with slightly different silicon content. A383 has better die-filling for thin-wall sections and complicated shapes. For uses that need more strength, A356 or the newer Aural-2 alloy are recommended. However, these heat-treatable materials need to be poured in a vacuum or squeezed to get rid of any holes before they are heated.

Partner with Fudebao Technology for Precision Aluminium Die Casting Solutions

Automotive engineering needs sources that can be counted on and who understand both the science of metals and the realities of production. Zhejiang Fudebao Technology has built a good name for itself by consistently sending high-quality metal die castings to global automakers and Tier-1 providers. Our streamlined production method combines low- and high-pressure die casting machines with cutting-edge CNC machining centers and full finishing services, allowing a single source to be responsible for everything from the initial melt to the final review. As an experienced aluminium die castings manufacturer serving brands like HAAS and ESS, we keep our measurements accurate to within 0.05 mm and follow the strict PPAP documentation rules. Get in touch with our technical team at hank.shen@fdbcasting.com to talk about how our experience in lightweighting can help you with the creation of your next automotive platform.
