How Aerospace Aluminium Die Castings Meet High-Precision Aviation Industry Requirements

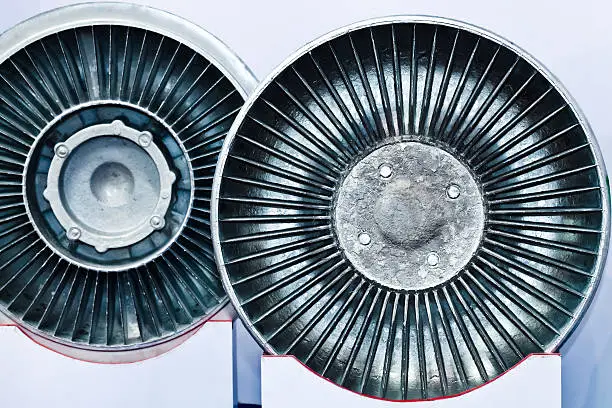

Aerospace aluminium die castings represent a cornerstone technology for aviation manufacturing, utilizing high-pressure injection processes to produce lightweight yet exceptionally strong components from aerospace-grade alloys like A356 and A380. These precision-engineered parts solve the aviation industry's most critical challenge: delivering components that withstand extreme operational stresses while minimizing aircraft weight. Through advanced metallurgical control and rigorous quality systems, die-cast aluminium parts achieve the dimensional accuracy, structural integrity, and material consistency demanded by modern aviation applications, from engine housings to structural brackets.

Understanding Aerospace Aluminium Die Casting and Its Industry Fit

The aviation industry has to deal with problems that not many other businesses do. Every gram of extra weight immediately leads to more fuel use, a shorter range, and higher costs to run the business. Because of this, aircraft experts are always looking for materials and ways to make things that are strong while also being light.

The Metallurgical Foundation of Aviation-Grade Alloys

To get the qualities needed for flight-critical uses, aerospace-grade aluminium alloys are put through strict compositional control. A356 alloy, which is made up of silicon and magnesium, has great casting properties and even better mechanical properties after being heated. The silicon content makes the casting process smoother, which lets you make complex shapes, and the magnesium content makes the metal stronger through a process called precipitation hardening. The A380 alloy has different properties that make it useful for different aviation uses. It has a higher silicon content, which makes it more resistant to wear and more stable at high temperatures. Both metals show wear resistance, which is important for parts that will be subjected to repeated changes in temperature and mechanical stress during flight operations.

Why Die Casting Dominates Aerospace Component Manufacturing

Die casting is one of the most effective methods for achieving excellent repeatability across production runs, which is essential for manufacturing aircraft components with strict performance requirements. This consistency makes aerospace aluminium die castings highly valuable in aviation applications where precision, reliability, and dimensional stability are critical. The process allows functional features to be integrated directly into cast components, eliminating additional assembly steps that may introduce potential failure points. Cooling channels, mounting bosses, and structural reinforcements can be formed as part of the component itself, reducing the number of individual parts and simplifying the overall assembly process. Well-designed aerospace aluminium die castings can replace complex assemblies that previously required multiple machined components, fasteners, and manual installation processes. This improves manufacturing efficiency, reduces production costs, and enhances component reliability. Precision die casting also provides consistent dimensions, minimizing secondary machining requirements, shortening lead times, and improving overall supply chain performance.

Aviation procurement teams recognize that these advantages create measurable improvements throughout the supply chain. Fewer components simplify inventory management, logistics planning, and quality tracking. Integrated design features reduce the need for fasteners that require regular inspection and maintenance. The natural corrosion resistance of aerospace aluminum alloys provides additional benefits compared with ferrous materials, reducing maintenance frequency and lowering lifecycle costs. By combining lightweight design, high strength-to-weight ratio, corrosion resistance, precision manufacturing, and advanced aluminium alloy technology, aerospace aluminium die castings provide reliable solutions for aircraft systems, aerospace structures, aviation components, and next-generation lightweight engineering applications.

Meeting High-Precision Requirements: The Aerospace Aluminium Die Casting Process Explained

When making precision aviation parts, the manufacturing process needs to keep an eye on and control every parameter all the time. There are several checkpoints and validation steps in the die-casting process for aerospace uses that make sure every part meets the strict requirements.

Mold Engineering and Preparation Protocols

Precision mold design is the basis for making sure that finished castings are the right size. Tool steel molds are carefully machined to within microns of accuracy, and their surfaces are finished in a way that reduces friction and makes it easier for parts to come out. Mold temperature control systems keep the temperature stable during production runs, which stops the changes in size that happen because of thermal expansion. We use cooling channel designs that help the solidification go evenly, getting rid of hot spots that cause holes or stress concentrations inside the material. Draft angles and wall thickness changes must follow set rules that balance how the material flows with the needs of the structure. This makes sure that the mold is completely filled without any turbulence that could trap gases or cause defects.

Metal Injection Dynamics and Solidification Control

Molten aluminium flows into the die hole at exactly controlled speeds and pressures, which have been set after a lot of process evaluation. Injection speed curves find a balance between the need to fill the whole space and the risks of turbulence and air getting stuck. During solidification, pressure is still being applied, which makes up for volumetric shrinkage and keeps the dimensions accurate. Temperature tracking systems keep an eye on the metal and mold conditions in real time and make changes when parameters move out of the process windows that have been set. This active control makes sure that all production units have the same metallurgical structure and mechanical properties.

Post-Casting Enhancement and Quality Validation

Through controlled solution treatment and aging processes, heat treatment cycles transform as-cast aluminum alloys into high-strength aircraft components. During solution treatment, alloying elements dissolve into solid solutions, while aging promotes the formation of strengthening phases that improve tensile performance, fatigue resistance, and structural durability. These processes are especially important for aerospace aluminium die castings, where lightweight design, mechanical reliability, and strict performance requirements are essential. Mechanical properties are verified through standardized testing methods that measure tensile strength, yield strength, and elongation according to AMS and ISO standards. Surface finishing operations remove casting imperfections, improve surface quality, and achieve the required roughness levels, preparing components for further assembly, coating, or aerospace integration.

Quality assurance systems that meet NADCAP certification requirements include advanced nondestructive testing methods that detect internal defects without damaging the components. X-ray inspection identifies porosity, inclusions, and incomplete filling areas, while coordinate measuring machines (CMM) verify dimensional accuracy and ensure compliance with geometric tolerances. Statistical process control (SPC) continuously monitors manufacturing trends and detects process variations before they result in nonconforming parts. For aerospace aluminium die castings, this comprehensive quality framework provides aerospace manufacturers with essential documentation, material traceability, and production confidence. By combining heat treatment, precision inspection, surface finishing, and strict aerospace quality management, suppliers can deliver reliable aluminium components for aircraft structures, aviation systems, and advanced aerospace applications.

Comparative Analysis: Aerospace Aluminium Die Casting vs Alternative Materials and Manufacturing Methods

Choosing the right materials and manufacturing processes has a significant impact on part performance, production costs, and supply chain efficiency. When selecting materials and production methods, aerospace engineers evaluate multiple factors, including strength-to-weight ratio, corrosion resistance, thermal performance, manufacturing complexity, and lifecycle costs. For critical aircraft applications, aerospace aluminium die castings provide an excellent balance of lightweight design, mechanical strength, dimensional accuracy, and cost efficiency. The selection of suitable aluminum alloys and advanced die casting processes helps manufacturers produce reliable aerospace components while meeting strict industry standards. Factors such as material properties, casting capability, heat treatment requirements, surface finishing, and quality inspection procedures must all be considered to ensure long-term performance. By combining aerospace-grade aluminum materials, precision die casting technology, lightweight structures, advanced manufacturing processes, and strict quality control systems, engineers can develop components that improve aircraft efficiency, reduce weight, and enhance overall reliability. These considerations make aerospace aluminium die castings an important solution for modern aviation systems, aircraft structures, and next-generation aerospace manufacturing.

Material Performance Under Aviation Operating Conditions

Aluminium alloys are very resistant to corrosion in normal air conditions. This is a big plus for parts that have to deal with moisture, temperature changes, and chemical contaminants that come up during flight operations. Unlike magnesium metals, which need protective coatings to keep them from breaking down, aircraft aluminium stays structurally sound for long periods of time with little upkeep. While titanium has a better strength-to-weight ratio, it comes with higher costs and more production difficulties. Titanium is expensive and hard to work with because it doesn't conduct heat well and gets hard over time. It's only used when its properties are required for performance reasons.

Because of its thermal properties, aluminium is a great material for parts that will be exposed to heat. The material's high thermal conductivity helps heat escape, keeping nearby systems and buildings safe. When thermal cycling happens, stress builds up at interfaces, but thermal expansion factors that are compatible with other aircraft materials keep this from happening. We have shown that aluminium works reliably in a wide range of temperatures, from very cold at high altitude to very hot inside engine compartments. This shows that aluminium is reliable in aviation's toughest environments.

Manufacturing Economics and Production Efficiency

Die casting enables almost net-shape production, which significantly reduces material waste and provides major advantages when manufacturing aerospace-grade components. This efficiency is especially valuable for aerospace aluminium die castings, where aluminium materials are expensive and strict weight requirements must be achieved. Compared with traditional machining from billet stock, which produces large amounts of chips and scrap, die casting uses material more efficiently and reduces disposal costs. For die-cast components, the buy-to-fly ratio can often exceed 90%, while heavily machined parts may achieve ratios below 20%. This material efficiency directly lowers component costs while also reducing environmental impact through improved resource utilization and less manufacturing waste.

Different manufacturing methods have different production volume capabilities and cost structures. Die casting is most suitable for medium- to high-volume production because tooling expenses can be distributed across thousands of units. For aerospace aluminium die castings, this scalability helps manufacturers achieve consistent quality, lightweight designs, and competitive production costs. Forging provides excellent mechanical properties for certain applications but often requires extensive machining to achieve final dimensions, increasing material waste and processing time. Investment casting offers superior surface finishes and complex geometries but generally has slower production rates. Aerospace procurement teams must carefully evaluate these factors, including production volume, delivery schedules, material performance, certification requirements, and budget constraints, to select the most effective manufacturing solution for aircraft components, aerospace structures, and advanced lightweight applications.

Procurement Insights: Selecting Trusted Aerospace Aluminium Die Casting Partners

When looking for aircraft parts, you have to do a lot more than just compare prices when you evaluate suppliers. Aerospace procurement teams look at partners' manufacturing skills, quality systems, and organizational development to find ones that can meet program needs throughout the lifecycles of products.

Certification Requirements and Quality System Maturity

Aerospace providers must keep up-to-date certifications that show they meet quality standards in the business. NADCAP accreditation confirms that a special process can be used by conducting independent checks by trained technology experts. The ISO 9001 certification sets the basic standards for quality management systems, and the AS9100 certification adds requirements that are specific to aerospace manufacturing. Suppliers with these certifications show that their companies are dedicated to quality and constant improvement.

In addition to certifications, experienced providers set up strong systems for engineering change management, configuration control, and tracking. These organizational skills make sure that parts stay in line with specifications during years of production runs. We keep track of all of the materials, from the raw aluminium ingot to the finished part, by writing down the heat numbers, process factors, and check results for each production unit.

Technical Capabilities and Engineering Support

Complex aircraft parts need engineering teams from both design and manufacturing to work together. Suppliers that offer design for manufacturability analysis can help you get the best shape for your parts, which lowers production costs and raises quality and reliability at the same time. Mold flow simulations can find possible casting flaws during the design process, when it's least expensive to make changes. With prototyping services, you can test your ideas physically before you buy the tools for production.

Suppliers' ability to meet delivery dates and adapt to changes in the program depends on their production capacity and flexibility. When output goes up, having enough equipment capacity keeps things from getting backed up. When engineering changes, flexible manufacturing systems can adapt without having to take a lot of time off. When you buy from a reputable provider, you can be sure that your deliveries will still be on time even if some of the machines need repairs.

Strategic Sourcing Considerations for Aviation Programs

The prices of die-cast parts include both fixed tooling costs and variable production expenses. Tooling amortization spreads the initial mold development cost across the expected production volume, creating stronger economies of scale for high-volume manufacturing programs. This cost structure is especially important for aerospace aluminium die castings, where precision tooling, strict quality requirements, and long-term production reliability are critical factors. Material costs fluctuate with global aluminum market prices, but long-term supply agreements can help maintain price stability. Production expenses include labor, energy consumption, equipment maintenance, and operational overhead, which may vary depending on supplier location, automation level, and manufacturing efficiency. Selecting suitable aluminum alloys, optimizing casting processes, and maintaining strict quality control help manufacturers produce reliable aerospace components while managing overall costs.

Lead time management begins with tooling development, which can require several months for complex aerospace molds and advanced die casting systems. The total manufacturing timeline depends on production capacity, inspection requirements, heat treatment processes, machining operations, and surface finishing needs. For aerospace aluminium die castings, experienced suppliers provide realistic project schedules that include engineering reviews, qualification testing, and quality approval procedures. This approach prevents unrealistic delivery promises and reduces the risk of program delays. By combining advanced die casting technology, aerospace-grade aluminum materials, precision manufacturing, and effective supply chain planning, suppliers can deliver high-performance aerospace components with consistent quality, cost control, and dependable delivery performance.

Ensuring Excellence: Technical Specifications and Standards in Aerospace Aluminium Die Casting

The rules that are used to judge aircraft parts are called technical standards. When procurement teams and manufacturing partners understand these specifications, they can have more productive conversations.

Material Standards and Mechanical Property Requirements

For aerospace materials, AMS specifications set ranges for chemical composition, minimum requirements for mechanical properties, and testing methods. AMS 4291 talks about A356 castings and gives ranges for silicon and magnesium content as well as limits on impurities that could damage properties. After heat treatment, the tensile strength needs to be higher than 220 MPa, the yield strength needs to be at least 160 MPa, and the stretch needs to be high enough to make sure the material is flexible enough. These standards make sure that the material performs the same way no matter where it is made or who supplies it.

Mechanical testing proves that production casts have the right qualities. Standardized tests are used to measure ultimate strength, yield strength, and extension to failure in tensile pieces that are taken from production parts or separately cast test bars. Testing for hardness is a quick way to see if heat treatment worked. Impact testing checks how tough a material is when it is loaded and unloaded quickly. We do these validations according to set sample plans that take into account the need for risk management and the cost of tests.

Quality Verification Methodologies and Defect Management

Nondestructive testing methods find internal breaks that can't be seen with the naked eye. During a radiographic examination, X-ray sources and film are placed to take pictures of the inside of the object, showing any holes, inclusions, or shrinking spaces. Through capillary action that pulls bright or colored dyes into cracks, penetrant analysis shows up flaws that break through the surface. Coordinate measuring machines are used for dimensional inspection, which checks that the shapes are correct by comparing important features to CAD models with micron-level accuracy.

Statistical process control uses control charts to keep an eye on key parameters and make sure that the manufacturing process is stable. When measurements get close to the limits set by the standard, process changes stop the production of parts that don't meet the requirements. Capability indices measure how well a process works and show aerospace customers that the manufacturing process is consistent. This proactive quality management gives flight applications the dependability they need while lowering inspection costs by focusing on strategies for prevention instead of discovery.

Conclusion

Manufacturing in the aviation industry keeps moving toward lighter, more efficient planes that are better for the environment and cost less to run. Through tried-and-true mixtures of material properties, production accuracy, and affordability, aerospace aluminium die castings significantly advance these goals. The technology makes parts that meet strict aviation standards and can handle the large production volumes needed for current aircraft projects. When procurement professionals work with qualified suppliers, they can access production skills that are backed by strict quality systems, technical know-how, and a history of working in aircraft. These partnerships help flight programs meet strict weight goals, stick to supply schedules, and keep costs down without sacrificing the safety and dependability that aviation needs.

FAQ

What advantages do aluminium die castings offer compared to machined aerospace components?

Die casts produce nearly net-shape geometry, which cuts down on waste and cutting time. When something is cast, complex internal features can form without the need for multi-axis machining. The process makes sure that the mechanical properties and dimensions stay the same across all production quantities. This lowers the cost per unit while keeping the quality high.

How do aerospace quality standards affect manufacturing processes and timelines?

Documented process controls, qualified operators, and thorough inspection protocols are all required by NADCAP and AS9100. While these standards add extra steps for approval during production, they also make sure that quality is always the same and that everything can be tracked. Lead times are used to check the quality of an item, and production schedules usually last between a few weeks for standard parts and several months for first production units that need to be inspected as a whole.

What factors influence pricing for aerospace aluminium die-cast components?

The costs of a component are mostly determined by how complicated the tools are and how much is made. For complex shapes, you need complex molds, which cost a lot of money up front. The prices of materials include the market price for aluminium plus alloying elements. Casting, heat treatment, finishing, and testing are all part of the production prices. When you buy more, your fixed costs are spread out over more units, which lowers the price per piece.

Partner with Fudebao Technology for Your Aerospace Aluminium Die Casting Needs

With full production skills that range from casting to precise finishing, Zhejiang Fudebao Technology is ready to meet your needs for aerospace parts. Our factory has high-speed machining centers, CNC machines, and advanced aerospace aluminium die casting systems that can produce parts with tolerances as tight as ±0.05mm, which is exactly what aircraft use needs. We serve as a reliable company that makes aircraft components. Our quality systems are in line with international aerospace standards, and we support programs in all areas of aviation. Our engineering team works with your design experts to make sure that the parts can be made in the best way possible while still meeting performance standards. Contact Hank Shen at hank.shen@fdbcasting.com to talk about the details of your project, look over our achievements in aerospace manufacturing, and find out how our proven skills can help your program's success.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design. Butterworth-Heinemann.

2. ASM International Handbook Committee. (2008). ASM Handbook Volume 15: Casting. ASM International.

3. Kaufman, J.G., & Rooy, E.L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.

4. Aerospace Industries Association. (2019). Aerospace Casting Quality Standards and Certification Requirements. AIA Publications.

5. Davis, J.R. (1993). Aluminum and Aluminum Alloys. ASM International Specialty Handbook.

6. Society of Automotive Engineers. (2021). Aerospace Material Specifications: Heat Treatment of Aluminum Alloy Castings. SAE International Standards.
