How Can Aerospace Aluminium Die Castings Reduce Weight in Aerospace Applications?

Aerospace aluminium die castings deliver weight reduction through a unique combination of advanced alloy chemistry and precision manufacturing. By utilizing aerospace-grade aluminium alloys with superior strength-to-weight ratios and leveraging the die casting process to create complex, thin-walled geometries, manufacturers can eliminate unnecessary material mass while preserving structural integrity. This approach typically achieves weight reductions of 20-40% compared to steel alternatives and 10-15% compared to conventional wrought aluminium parts, directly translating to enhanced fuel efficiency and increased payload capacity in aircraft systems.

Understanding Weight Challenges in Aerospace Manufacturing

In aircraft engineering, weight is still one of the most important factors that affects efficiency. For every pound that is taken off of an airplane's frame, its fuel efficiency, working range, and cargo hold all get better. According to recent industry figures, a commercial aeroplane that loses one kilogram of airframe weight saves about 200 kilograms of carbon emissions each year over its working lifetime.

Material Trade-offs in Traditional Aerospace Manufacturing

Steel has historically been very cheap and had great tensile strength, but its density of about 7.85 g/cm³ makes it too heavy for applications that need to be light. Although titanium metals are very strong and don't rust, they are very expensive to make and are hard to machine because they harden when they are worked. At about 1.74 g/cm³, magnesium castings are the lightest metal option. However, their use in critical aerospace systems is limited by concerns about their ability to catch fire and rust.

Regulatory Pressures Driving Lightweight Innovation

Aviation officials around the world are continuing to make rules about emissions and fuel economy stricter. The International Civil Aviation Organization's Carbon Offsetting and Reduction Scheme requires gradual cuts in emissions, which forces aircraft companies to use aggressive tactics to reduce weight. Because of these rules, there is an immediate need for tested, lightweight materials that maintain safety margins without sacrificing certification compliance.

Why Aerospace Aluminium Die Castings Are Ideal for Weight Reduction

Aluminium metals made for aerospace use the best combination of mechanical strength and light weight. Aluminium's density is about 2.7 g/cm³, which is about one-third that of steel. This means that aluminium saves a lot of weight while still meeting the engineering requirements of flight-critical uses.

Material Properties Enabling Weight Optimization

In real life, aircraft aluminium alloys are stronger than most other materials because they are lighter while still being strong. Alloys that are made to be used in die casting have tensile strengths between 240 and 320 MPa and are very resistant to wear when loaded and unloaded many times. Their naturally occurring oxide layer protects against rust without the need for extra coats. This saves weight that comes with applying surface treatments to steel or magnesium parts.

Manufacturing Precision Minimizing Excess Material

Under high pressure, usually between 10,000 and 25,000 psi, liquid metal is poured into precise steel moulds during the die casting process. This way of making things has a few weight-saving benefits that set it apart from other ways of making things:

When compared to subtractive manufacturing from billets or plates, die casting makes net-shape or nearly net-shape parts with few machining allowances. This means that less material is needed. Complex internal tunnels, integral ribs, and varying wall thicknesses can be built right into the shape of the casting. This improves the spread of strength and gets rid of extra mass. Dimensional accuracy within ±0.1 mm tolerances makes sure that the wall thickness stays the same, so there is no need for the extra technical gaps that are often added to make up for variations in production when sand castings or other methods are used.

With these manufacturing options, engineers can make parts that put material exactly where structural analysis says it's needed, taking weight off of areas with low stress without affecting safety.

Comparative Performance Against Alternative Casting Methods

Compared to titanium castings, aerospace aluminium die castings have a similar specific strength, but they require much less complicated post-casting heat treatment and cost a lot less. Aerospace aluminium die castings can reduce the weight of parts made of investment-cast steel by more than 60% while still having good enough mechanical qualities for most aircraft uses that don't need to be load-critical. Magnesium die casts save a little more weight, but they make it harder to handle the material and cause compatibility issues that aluminium parts don't have at all.

Aerospace Aluminium Die Casting Process and Materials

Aerospace-quality aerospace aluminium die castings are made according to strict rules that make sure they are reliable under tough operating conditions and don't add too much weight. To meet the strict needs of aerospace applications, we use systematic process controls at every stage of the manufacturing process.

Quality Standards Governing Aerospace Castings

Following the rules set by ISO 9001 quality management systems is the basis for aerospace casting operations. Many aerospace users also need AS9100 certification, which adds standards for configuration management, traceability, and risk assessment that are specific to aerospace to ISO 9001. These certificates are kept up to date at our site through regular audits and written process validation.

Alloy Selection for Optimal Weight-Strength Balance

The most common die-casting material for secondary structures in aerospace is A380 aluminium alloy. It is made up of about 8.5% silicon, copper, and other trace elements. It is very fluid when it is being cast, and it has a tensile strength of about 315 MPa when it is first formed. The silicon presence lowers solidification shrinkage, which lets wall parts be smaller without holes.

At about 240 MPa, A360 metal isn't as strong as some other alloys, but it's better at resisting corrosion in marine or coastal aircraft installations. Its lower copper content reduces galvanic reactions when it is put together with metals that are not the same, which increases the service life of the parts without adding extra weight to protective finishes.

Design Strategies Maximizing Weight Reduction

Engineers use deliberate design techniques that are specific to the die casting process to get the best weight efficiency. Aluminium alloys can successfully make thin wall sections between 1.5 and 2.5 mm. This means that heavier designs that used to be made with walls between 4 and 6 mm can be replaced. Strategic ribbing designs add local stiffness with little extra material, which keeps the total weight of the component low and stops areas from breaking when they are compressed.

To avoid over-engineering, you need to do a good job of analysing stress and have faith in the properties of the material. We work together with flight experts to make sure that finite element models match up with physical tests. This helps us set the right safety factors without adding too much weight to the materials.

Real-World Applications and Case Studies Showing Weight Reduction

Aerospace companies use metal die casts for a wide range of parts because they are lightweight and improve system performance. These uses show measurable benefits that support choices about which materials and processes to use.

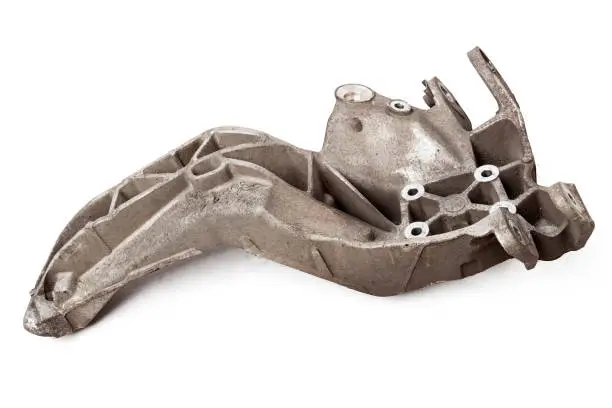

Structural Brackets and Mounting Hardware

Aerospace aluminium die-cast brackets hold cabin equipment, overhead bins, and galley structures in place in aircraft interior systems. One regional aeroplane maker switched from steel brackets to redesigned aerospace aluminium die castings, which cut the weight of all 240 brackets on each plane by 38%. This 22-kilogram weight loss per airframe helped the aeroplane use 0.3% less fuel during its working profile.

Engine Bay Components and Housings

The ability of metal die casting to incorporate complex forms is very useful for peripheral engine parts like sensor housings, mounting flanges, and protective covers. A turboprop engine accessory box was changed from a machined aluminium plate to an optimised die casting. This reduced the weight of the part from 3.8 kg to 2.4 kg, which is a 37% gain. It also improved heat absorption by adding cooling fins that could not be machined cheaply.

Actuation System Enclosures

Flight control actuators need secure housings that keep delicate parts from being exposed to the environment while keeping the weight as low as possible. Aerospace aluminium die-cast actuator housings have mounting bosses, cable routing features, and inspection access panels built in as a single piece, so they don't need any hardware for assembly. When compared to older welded sheet metal designs, a major aerospace controls supplier found that each actuator box lost 1.2 kg of weight. This added up to hundreds of actuators per aeroplane.

Quantified Performance Improvements

Systematic weight loss through aerospace aluminium die castings has clear operating benefits that can be measured. A commercial narrow-body plane with about 450 optimised aerospace aluminium die-cast parts had a total airframe weight decrease of 68 kilograms compared to the old version that was made using traditional methods. This weight loss saved more than $85,000 a year on fuel for each plane, based on normal usage rates and fuel prices. The corresponding drop in emissions helped meet environmental compliance goals.

Procurement Considerations for Aerospace Aluminium Die Castings

To find high-quality aerospace aluminium die castings, you have to carefully evaluate suppliers to make sure their technical skills, quality systems, and ability to meet the needs of difficult aerospace programs.

Certification and Compliance Verification

Teams that buy things for the aerospace industry should check that any possible casting providers are up-to-date on their AS9100 certification and any special process approvals that are needed. Accreditation by Nadcap for nondestructive testing gives even more confidence in the ability to check. Looking at a supplier's customer list to see who they already work with in the aerospace industry shows that they know the specific requirements for paperwork, traceability, and configuration control that are very different from those in the commercial or car sectors.

Quality System Assessment

A good source review looks at more than just certifications. It also looks at how quality controls are put in place throughout the whole production process. Process stability can be seen in statistical process control data for important factors such as casting temperature, injection pressure, and cooling rates. For important features, capability studies (Cpk values) for dimensional characteristics should be higher than 1.67. This will ensure consistent output within the limits of the specifications. There is trust in ongoing quality assurance when there are written processes for inspecting the first article, checking while the product is being made, and inspecting it at the end.

Commercial Terms and Lead Time Planning

Die casting programs for aluminium require a lot of money to be spent on tools. The most expensive part of these programs is the precise steel moulds. Tooling costs are usually spread out over the expected output volumes. This means that suppliers place a lot of stock on volume promises and the accuracy of their forecasts. After the mould is finished, it usually takes 12 to 16 weeks to make aerospace castings. This is because of the time needed for casting, heat treatment, machining, testing, and paperwork that are specific to aerospace uses.

Customization and Technical Collaboration

Suppliers should be involved early on in the planning process for aerospace casting projects to be successful. Experienced casting suppliers can help you make the most of wall thickness, draft angles, parting line location, and other geometric factors that affect both how easy it is to make and how much weight it saves. This collaborative approach often finds more ways to reduce weight than were thought of in the original design concepts.

Conclusion

Aerospace aluminium die castings are a tried-and-true, low-cost method of significantly reducing the weight of aircraft systems without sacrificing safety or structural performance. By carefully choosing the alloys, designing the parts in the best way possible, and using precise manufacturing methods, these castings regularly save 20 to 40 percent of weight compared to traditional materials while still meeting strict aerospace quality standards. When lightweight aerospace aluminium die castings are used in various airframe systems, they improve fuel economy, loading capacity, and environmental performance in a way that can be measured. These changes directly help operators' bottom lines. Aerospace aluminium die castings will become more important in next-generation aeroplane development projects that want to gain a competitive edge by carefully reducing weight. This is because regulations are continuing to put pressure on companies to cut down on emissions and improve working efficiency.

FAQ

How much weight can aerospace aluminium die castings save compared to steel or titanium?

Die casting in aluminium can cut the weight of a part by 60–65% compared to the same part made of steel and 40–45% compared to the same part made of titanium. The exact savings rely on the shape and alloy chosen, but flight engineers always get big weight savings when they switch from denser materials to optimised aluminium castings. This directly makes the plane use less fuel and carry more cargo because it loses weight.

Do aluminium die castings compromise durability or safety in aerospace applications?

Die castings made from aerospace-grade aluminium alloys have great mechanical qualities that make them ideal for harsh flight conditions. When heat-treated correctly and made under controlled conditions with quality checks, aluminium die castings have the same level of fatigue resistance and structural stability as wrought metal goods. Each casting has to pass strict safety standards before it can be installed. These standards include X-ray inspection, measurement verification, and mechanical property validation.

What certifications should aerospace buyers expect from casting suppliers?

Aircraft casting companies with a good reputation use AS9100 certification as the basic quality management standard. This standard adds requirements for aircraft to ISO 9001. Getting more Nadcap certification for nondestructive testing gives inspection capabilities independent confirmation. OEM-specific approvals from major aeroplane makers show that a company has met its own standards in the past. Buyers should ask for copies of up-to-date certificates and read scope statements to make sure that certifications cover the processes and products that are important to them.

Partner with Fudebao Technology for Aerospace-Grade Lightweight Solutions

Zhejiang Fudebao Technology Co., Ltd. is an expert in making high-precision aerospace aluminium die castings that are perfect for aircraft use. Our wide range of skills covers the whole manufacturing process, from melting the alloy to finishing and treating the surface. This means that we can deliver flight-ready parts all in one place. We use cutting-edge high-speed machining centers, CNC lathes, and die casting machines to keep our measurements accurate to within 0.05 mm and follow strict quality controls that meet aerospace standards. As a reliable provider of aerospace aluminium die castings, we work with defence contractors and aircraft makers around the world who need certified lightweight parts with full traceability paperwork. Get in touch with our aerospace team at hank.shen@fdbcasting.com to talk about your unique component needs and get thorough technical proposals that show how our precision casting solutions can help you cut weight while still meeting the structural requirements of your applications.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design. Butterworth-Heinemann.

2. Mouritz, A.P. (2012). Introduction to Aerospace Materials. Woodhead Publishing.

3. ASM International Handbook Committee (2008). ASM Handbook Volume 15: Casting. ASM International.

4. Kaufman, J.G. & Rooy, E.L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.

5. Starke, E.A. & Staley, J.T. (1996). Application of modern aluminum alloys to aircraft. Progress in Aerospace Sciences, 32(2-3), 131-172.

6. SAE International (2017). Aerospace Casting Quality Standard AMS2175: Quality Assurance Requirements for Aerospace Hardware. SAE International Standards.
