Common Defects in Aluminum Die Casting and Their Solutions

Aluminum die casting flaws are a major problem in all areas of manufacturing because they affect both the speed of production and the dependability of parts. High-pressure die casting (HPDC) is the process of pouring liquid aluminum alloys into precise steel molds at pressures higher than 10,000 psi. This makes complex shapes with a smooth surface. Even though technology has come a long way, flaws like porosity, cold shuts, and shrinking can still make parts less reliable. Procurement teams and engineering managers can build strong supply lines, lower the number of rejected items, and stay ahead of the competition in tough markets by understanding these problems and putting systematic answers into place.

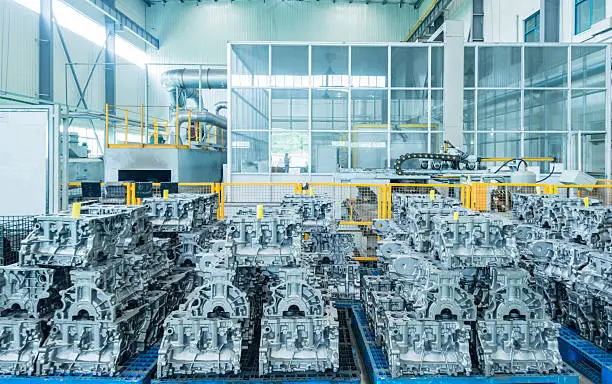

Understanding Common Defects in Aluminum Die Casting

Overview of Defect Types

Aluminum die casting flaws like porosity, cold shuts, hot tears, misruns, shrinkage, and surface marks are very bad for the quality and performance of the product. Porosity shows up as tiny spots of gas stuck inside the metal structure. This weakens the mechanical properties and makes leak paths in parts that hold pressure. Two metal flow fronts meet but don't bond properly, leaving obvious seams that weaken the tensile strength. This is called a cold shut. Hot tears are cracks that form inside or on the outside of a solid during solidification because of thermal stress. They are especially bad in complex shapes where the wall widths change.

Impact on Performance and Procurement

Most of the time, these flaws are caused by inconsistent materials, bad process settings, limited tooling, or factors in the surroundings. Their appearance can lower the mechanical strength of parts by 30 to 40 percent compared to parts that don't have any flaws, make the dimensions less accurate than what is accepted (within 0.05 mm), or cause surface finish problems that need a lot of extra work to fix. In the end, this makes customers less happy because orders are late, warranty claims go up, and there are worries about the stability of the supply chain.

Engineers and procurement workers can take steps to fix problems early in the production cycle if they have a good idea of the types of defects and where they come from. During the first source checks, X-ray or CT scanning of sample parts shows secret porosity patterns, and tensile testing confirms the parts' mechanical integrity. Actively managing defects to protect quality cuts down on repair costs, which can be as high as 15 to 20 percent of the total cost of production, and stops material waste that cuts into profit margins in high-volume contracts.

Root Cause Analysis of Aluminum Die Casting Defects

Material and Process Variables

Finding the reasons of flaws is important for stopping them from happening again and making manufacturing more efficient in aluminum die casting operations. Choosing the right material has a big effect on the quality of the end result. For example, aluminum alloys like A380 and ADC12 have silicon levels that range from 7.5 to 9.5%, which changes how they flow and solidify. Porosity is directly related to the cleanliness of the melt. When aluminum changes from a liquid to a solid, hydrogen from water or dirty tools causes gas porosity.

Melt temperature (usually 620–680°C for aluminum alloys), injection speed (0.5 to 6 m/s based on part complexity), and cavity fill pressure are some of the most important process factors. Misruns happen when the metal doesn't make it to thin parts or the edges before forming because the injection pressure isn't high enough. On the other hand, too much speed traps air inside the mold hole, which causes turbulence and gas trapping.

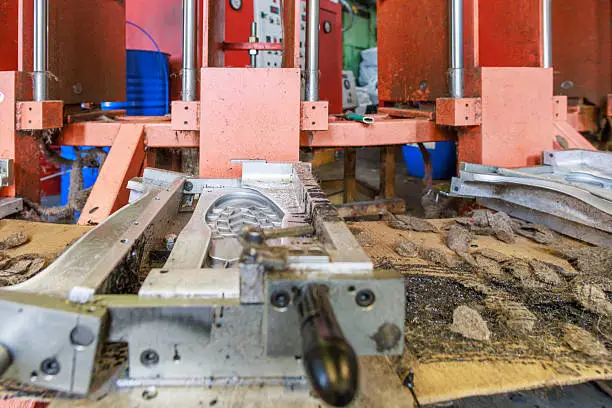

Tooling and Environmental Factors

Design aspects of the tool and mold, such as gating systems and vents, have a big impact on how defects form. Not properly placed gates cause too much turbulence or solidification too soon, and not enough venting stops air from escaping during high-speed metal input. Conditions like humidity levels above 60% make it easier for hydrogen to pick up in liquid aluminum. Rejection rates are directly affected by how well operators keep cycle times uniform and keep an eye on process stability.

In a complex production environment, all of the factors work together. Vendors and customers can work together to solve problems by using a methodical approach that often includes real-time data from temperature sensors, pressure transducers, and shot tracking systems, along with planned repair plans. This organized method makes sure that the quality of the parts stays the same across production runs and cuts down on hidden costs in supply partnerships, like the fees that come up for fast sending new parts or making last-minute engineering changes.

Proven Solutions and Best Practices to Mitigate Common Defects

Alloy Selection and Melt Management

A multi-pronged approach that addresses material integrity, process efficiency, and quality checking is needed to effectively reduce defects. To choose the right aluminum alloys, you need to make sure that their heat conductivity, hardness, and resistance to corrosion meet the needs of the application. A380 is often used for transmission housings in cars because it is easy to cast and has a middling strength (about 320 MPa tensile). On the other hand, A356 may be used for aerospace parts because it has better mechanical qualities after being heated to T6.

Strict rules for handling melts get rid of many flaws caused by the material. When rotating nitrogen lances or linear degassing units are used for degassing, the amount of dissolved hydrogen drops from 0.4 ml/100 g to less than 0.15 ml/100 g, which almost completely eliminates gas porosity. Putting melt through ceramic foam screens (20 to 30 pores per inch) gets rid of oxide specks and dross particles that would otherwise cause cracks to form.

Process Monitoring and Tooling Design

Better process tracking systems with temperature and injection parameter monitors allow for dynamic adjustments to keep the best conditions for casting. Real-time shot analysis checks real velocity curves against known baselines and sends alerts when differences are bigger than ±5%. Statistical process control (SPC) charts keep track of the time it takes for cavities to fill, the highest pressure to be reached, and the time it takes for the parts to cool down between production batches. This lets people fix problems before they get worse.

Modern tooling designs have better gate systems that help metal flow smoothly and laminarly, and overflow wells that are placed in just the right places to catch the first cold metal and air that gets caught. With vacuum-assisted die casting, the air pressure inside the cavity is lowered to 50–100 mbar before the injection process. This makes it much less likely that important structure parts will have gas holes. Cleaning up lubricant buildup and looking for thermal fatigue cracks every 50,000 to 80,000 shots as part of regular mold care lowers the chance of defects even more.

Quality Assurance Integration

Using nondestructive testing (NDT) procedures in aluminum die casting makes sure that bugs are found quickly without slowing down production. X-rays show where the internal holes are located, and ultrasound testing confirms that the wall thickness is always the same in complicated shapes. Coordinate measuring tools (CMMs) check the accuracy of measurements to within ±0.02mm, which helps meet the PPAP documentation needs of car supply lines. Real-time checking and automatic sorting systems work together to keep quality high and deliveries on time for global B2B buyers, with rejection rates staying below 0.5% in the best operations.

Case Studies: Successful Defect Reduction in Aluminum Die Casting

Automotive Powertrain Components

Systematic defect prevention has been shown to improve quality in real-world uses. A tier-1 car source that made transmission valve bodies had problems with microporosity that kept showing up and led to 12% of the valve bodies being rejected during pressure testing. By changing to automatic degassing systems and using argon purging along with lowering the pouring temperatures from 710°C to 660°C and improving the melt treatment methods, the number of holes in the material dropped by 78%. This led to fewer pieces being scrapped, better mechanical strength above the 340 MPa tensile standards, and yearly savings of more than $280,000 in labor and material costs for rework.

Electrical Infrastructure Applications

When making 5G base station heat sinks, companies that make electrical components ran into cold shut flaws along the fin arrays. These made thermal dissipation less effective by putting air holes in the heat transfer path. To fix this, engineering teams changed the pumping speeds from 1.2 m/s to 2.8 m/s and moved the gates so they were next to the largest parts. Before making changes to the tools, computational fluid dynamics (CFD) models were used to confirm the metal flow patterns. After the changes were made, tests showed that the cold shut was gone, the thermal conductivity performance improved by 23%, and customer happiness scores went from 7.2 to 9.1 on quality evaluations.

Aerospace Structural Parts

Safety-critical parts used in aerospace must have zero-defect limits. A company that makes landing gear brackets fixed hot tear formations at rib junctions by carefully controlling the temperature of the mold. They did this by adding conformal cooling channels that kept the die surface temperatures within ±8°C throughout the casting cycle and redesigning gating systems that made sure the solidification timing was the same for walls of different thicknesses. Destructive testing confirmation proved that the cracks were gone, showing big improvements in product dependability with 99.7% acceptance rates during receiving inspection and full tracking documents meeting the standards for AS9100 certification.

Design Tips to Prevent Aluminum Die Casting Defects Early

Geometric Optimization Strategies

Preventative design steps greatly lower the chances of casting flaws while also improving the ease of production in aluminum die casting from the idea stage to the finished product. Different cooling rates that cause internal stresses and hot tears can be avoided by keeping wall thicknesses constant between 2.5 and 4 mm. When parts need to be stronger, they should use ribbing designs instead of being too thick, so that structural needs are balanced with the need for regular solidification. Using the right draft angles (at least 1–3 degrees, based on the depth) makes it easier to remove parts without leaving surface marks or ejector pin marks.

Adding fillets with curves greater than 0.5 mm to internal corners makes it easier for metal to flow while cavities are being filled and lowers stress levels that cause cracks to spread during service loads. Sharp changes make turbulence zones where gas gets trapped and act as crack-starting sites when the load is applied in cycles.

Material and Process Alignment

Choosing die casting methods and metals that meet practical needs improves the quality of the results. High-pressure die casting is great for making parts for electronics and cars because it can handle complicated shapes with thin walls and close tolerances (±0.1mm is possible). Low-pressure casting works best for bigger structural parts like engine blocks that need better mechanical qualities and fewer holes. This is because the cycle times are longer. The choice of alloy must strike a mix between how easy it is to cast and how well it performs. For example, A380 is great for making intricate details, while A356-T6 has 50% higher yield strength for uses that need to hold weight.

Iterative development and quick feedback loops are made possible by encouraging early teamwork between the design and manufacturing teams. Sharing CAD models with casting engineers during early design reviews helps find possible flaws, like hot spots or inadequate airflow paths, before the production of tools starts. Prototype tools or 3D-printed sand models can be used to test design ideas for 15 to 20 percent of the cost of production tools. This lets changes be made that avoid expensive mistakes and protect the supply chain by showing that the product can be made.

Conclusion

To fix flaws in aluminum die casting, you need to know a lot about material science, process control, and working together as an expert. Imperfections like porosity, cold shuts, hot tears, and others are caused by factors that are connected to the alloy's makeup, how it handles heat, and the design of the tool. When purchasing managers and engineering professionals use systematic root cause analysis, advanced quality monitoring, and proactive design optimization, they can see measurable improvements. For example, rejection rates drop from the average of 3–5% in the industry to below 1%, time-to-market speeds up by getting rid of redesign cycles, and relationships with suppliers get stronger through clear quality metrics. Successfully reducing defects leads to more reliable parts that meet strict car PPAP requirements and aerospace traceability standards, all while keeping costs low, which is important for global B2B buying strategies.

FAQ

What are the most common aluminum die casting defects?

Porosity is the most common flaw, showing up in 40–50% of aluminum die casting quality problems. It is followed by cold shuts, surface flaws like solder marks and flow lines, shrinking holes in thick sections, and hot tears at geometric stress points. Usually, flaws are found during a dimensional check within 24 to 48 hours of production. However, for internal defects, an X-ray study may be needed before shipping.

How does alloy selection affect defect susceptibility?

A silicon percentage of 8 to 10 percent in metals like A380 makes them very fluid, which lowers the risk of misrunning but could also make them more porous if hydrogen control isn't good enough. For higher-strength alloys like A356, it's important to keep the temperature under tight control—melt superheating to 680–700°C—so that the alloys can still flow and have mechanical qualities above 240 MPa yield strength. Adding copper makes the metal easier to work with, but it may make it less resistant to corrosion in coastal settings.

What lead times and MOQs should I expect?

Usually, prototype casting takes 4 to 6 weeks, and for proof runs, you need to order at least 100 to 500 pieces. Production casting takes 8–12 weeks, based on how complicated it is, and for car uses, cost-effective production runs start at 5,000–10,000 units per year. Suppliers that offer customizable batch production can take orders for as few as 1,000 pieces and still charge the same amount because the setup costs are spread out over a smaller number.

Partner with Fudebao Technology for Defect-Free Aluminum Die Casting Solutions

To get parts that are always the same and don't have any flaws, you need to work with an experienced aluminum die casting maker that has advanced process controls and full quality systems. Zhejiang Fudebao Technology Co., Ltd. is a leading aluminum foundry that makes precise parts with ±0.05mm tolerances for global automakers, industrial equipment makers, and aircraft providers. Our building has high-speed CNC machining centers, low-pressure casting machines, and high-pressure die casting tools that work together to support full "melting-casting-finishing-surface treatment" workflows. This means that we can take care of everything from the blank to the finished product all in one place. We provide precise housings for American HAAS automatic machine tools and structure components for ESS energy storage systems, showing that we can handle a wide range of difficult tasks. You can talk to our tech team about your needs by emailing hank.shen@fdbcasting.com or visiting fdbcasting.com. As a reliable supplier of aluminum die castings, we offer full PPAP documentation, prototype development, and scalable production that is suited to your needs. We turn quality problems into competitive benefits.
