Aluminum Die Cast Parts Deliver Lightweight and Durable Solutions for Industrial OEMs

Aluminum die cast parts represent a cornerstone technology for industrial OEMs pursuing lightweight, durable, and cost-efficient manufacturing solutions. Engineered from specialized aluminum alloys through high-pressure die casting (HPDC), these components deliver superior strength-to-weight ratios and exceptional corrosion resistance across automotive, industrial machinery, electrical equipment, and aerospace applications. This manufacturing method transforms molten aluminum into precision-engineered components that meet the rigorous demands of modern industrial production, offering dimensional accuracy within ±0.002 inch/inch according to NADCA standards while maintaining structural integrity in challenging operational environments.

Understanding Aluminum Die Cast Parts: Composition, Process, and Benefits

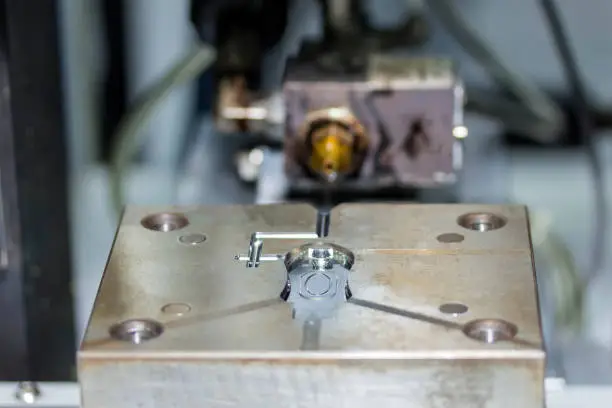

The High-Pressure Die Casting Process Explained

30,000 psi of pressure is used to force liquid aluminum alloys (usually A380, A383, or ADC12) into hardened steel molds during high-pressure die casting, which is a complex way to make things. This method makes net-shaped parts with complicated geometries, built-in features like bosses and ribs, and smooth surfaces that usually don't need any extra machining. Because HPDC solidifies quickly, it creates fine-grain microstructures that improve mechanical qualities while keeping production processes that last seconds instead of minutes. At Zhejiang Fudebao Technology, we use advanced die casting machines and real-time X-ray inspection systems to make sure that the parts stay solid during the casting process and that there are no porosity problems before they leave the production floor.

Material Properties That Drive Industrial Performance

An amazing set of physical properties describes common die-cast aluminum alloys that directly meet OEM needs. Many people in the industry use A380 alloy, which has a tensile strength of about 47 ksi and a yield strength of about 23 ksi. It also has a density of about 2.71 g/cm³, which means it is about one-third the weight of steel equivalents. When thermal conductivity hits 96 W/m-K, housings stop being inactive enclosures and become active heat dissipation elements. It turns out that the electrical conductivity is good enough for EMI/RFI shielding and grounding in electronic assemblies. These features of the material meet the chemical makeup standards of ASTM B85 and, when combined with the right surface treatments, achieve ASTM B117 corrosion resistance standards of more than 1,000 hours in salt spray tests.

Core Advantages for Industrial Applications

Aluminum die cast parts solve several technical problems at the same time. Cutting down on weight directly improves fuel efficiency in cars and makes installation easier in industrial equipment that hangs from the ceiling. Dimensional stability helps automatic assembly processes that need tight standards to make sure that parts always fit correctly across production runs. Combining several manufactured parts into a single cast part cuts down on assembly time and gets rid of failure spots caused by fasteners. Recyclability of materials is in line with efforts to be more environmentally friendly, and performance standards are kept across all recovered content amounts. Because of these benefits, more and more industries, from the auto industry to renewable energy, choose die-cast aluminum for important tasks.

Comparing Aluminum Die Cast Parts with Other Metal Part Manufacturing Methods

Die Casting Versus Machining Economics

Choosing the right manufacturing method has a big effect on the total cost and time of the job. CNC machining is good for prototypes and small batches because it is very accurate and can change the shape of parts without spending a lot of money on tools. Material waste is usually between 40 and 60% because solid stock is cut away, and cycle times get much longer for shapes that aren't simple. When you first start die casting, you have to spend a lot of money on tools—H13 steel dies are a big capital expense—but once you reach 1,000 to 2,000 pieces, the unit costs drop greatly. When more than 5,000 units are made each year, die casting usually saves 30 to 50 percent of the cost of machined options while keeping the same dimensions throughout production runs.

Sand Casting and Low-Pressure Casting Alternatives

Sand casting allows for more flexible tooling and larger component sizes with a lower initial investment. This makes it a good choice for pump housings and heavy equipment parts that need to be strong and resistant to heat. Surface finish quality and dimensional accuracy are not as good as with die casting, so important areas usually need more work. Low-pressure casting fills in the gaps in performance by providing better material density and mechanical qualities than sand casting while still being cheaper for medium-volume production. Fudebao Technology has a wide range of skills, including die casting, low-pressure casting, and precision machining. This means that procurement teams can choose the best manufacturing methods based on volume needs, tolerance requirements, and budget constraints, rather than settling for solutions that work for everyone.

Zinc Die Casting Material Comparison

Zinc alloys offer different die casting options, each with their own advantages and limitations. Zinc provides excellent surface finish, good dimensional stability, and strong casting flexibility, allowing smaller components to achieve thinner walls and finer details. However, with a material density of approximately 6.6 g/cm³, zinc is more than twice as heavy as aluminum, making it less suitable for lightweight design requirements. Compared with aluminum, zinc generally has lower strength-to-weight performance and reduced thermal conductivity, limiting its use in applications where structural loads, heat dissipation, and weight reduction are critical. These factors make aluminum die cast parts a preferred choice for industries requiring lightweight performance, durability, and efficient thermal management. Zinc remains valuable for consumer products, decorative hardware, and small precision components because of its lower material costs, excellent surface appearance, and ease of casting. In contrast, aluminum continues to be the dominant material for industrial equipment, automotive components, electric vehicle systems, and energy applications where long-term performance is more important than initial material expenses. Aluminum die cast parts provide a strong combination of lightweight design, corrosion resistance, mechanical strength, recyclability, and high-volume production efficiency. By selecting the right material according to application requirements, manufacturers can optimize component performance, production costs, supply chain reliability, and lifecycle value across industries such as automotive manufacturing, electronics systems, aerospace applications, and precision engineering.

Designing and Procuring Aluminum Die Cast Parts for Industrial OEMs

Design Optimization for Casting Success

The quality of the casting and the efficiency of production are directly affected by how well the parts are designed. Different cooling rates can cause internal pressures and warping, but consistent wall thickness stops that. For best results, keep the standard thickness at 2.5 mm with localised changes to 1.5 mm where structural ribs provide support. Draft angles of 1-3 degrees make it easier to eject parts and keep the die working for longer than 50,000 shots. Fillet curves at internal corners lower stress concentrations and improve metal flow while the hollow is being filled. By designing cooling fins, mounting bosses, and connector passages into single-cast components, the need for assembly is eliminated, and the number of parts used is decreased. During the development phase, when design engineers and casting experts work together, common flaws like holes in thick sections and missing fills in thin features can be avoided.

Defect Prevention Through Process Control

The most common problem in aluminum die casting is porosity, which is caused by gas getting trapped during high-speed metal filling. We use vacuum-assist technology to remove air from the die hole before metal is injected. This cuts down on interior gaps that make the product less strong and less pressure-tight. During solidification, squeeze pins are used on thick parts to reduce the amount of shrinkage porosity. During production runs, process factors such as injection speed, metal temperature, and die temperature are constantly monitored. Parts that need to be hermetically sealed go through resin impregnation, a process that is done after casting and fills in any microporosities that are still there. Real-time X-ray inspection finds flaws below the surface before the finishing steps are applied. This saves money on repairs and makes sure that only parts that meet our specifications move through our production process, from melting to surface treatment.

Strategic Sourcing and Supplier Evaluation

The procurement plan has a huge effect on the success of a program, and not just because of unit price. To evaluate potential suppliers, you need to look at their technical skills, such as their ability to design tools in-house, make alloys, and offer integrated finishing services. You should also look at their quality certifications, which should be relevant to the industries you're looking for. Manufacturing lead times usually last between 4 and 8 weeks for initial tooling development and 2 to 4 weeks for production runs. This means that order management needs to be proactive and in line with when products are released. The economics of amortising tools mean that minimum order quantities are usually between 500 and 1,000 pieces for first orders and lower minimums for repeat production. Optimising production schedules and buying materials can lead to bulk order benefits, which lower costs without lowering quality standards. Forming partnerships with manufacturers that can do everything from blank casting to precision machining and surface finishing speeds up supply chains and makes quality control easier for teams seeking aluminum die cast parts.

Why Choose Aluminum Die Cast Parts from Fudebao Technology

For advanced manufacturing solutions to work, they need partners who know both the technology needs and the business needs. Our facility blends decades of experience making aluminum alloys with precise CNC machining, so we can deliver parts from raw materials all the way through finished pieces. We work with global original equipment manufacturers (OEMs) in the auto, industrial equipment, and aerospace industries that need reliable quality and quick technical support.

Our die casting processes are complemented by high-speed machining centers and CNC lathes, which allow us to achieve tolerances of ±0.05mm for precision parts for cars and medical equipment housings, where size accuracy has a direct effect on safety and usefulness. Our integrated approach gets rid of the coordination problems that come with getting supplies from more than one source. It also makes logistics simpler and reduces the range of lead times that can be needed. Temperature-controlled melting ovens make sure that the alloy's chemistry stays the same, which meets the requirements for aerospace tracking. Optical emission spectroscopy checks the iron, copper, and zinc content to make sure it stays within the limits set by specifications.

Surface treatment options improve the performance of a part beyond the properties of the base material. E-coating and powder coating systems protect against corrosion, which has been proven by salt spray tests. Also, the fact that die-cast aluminum alloys don't react to normal anodising means that design mistakes that happen a lot when suppliers don't know much about materials are avoided. For structural uses, heat treatment processes improve mechanical properties, and pressure decay leak testing checks that IP-rated sealing works properly before it is shipped. Coordinate measuring machines with high-tech probe systems check that GD&T specifications are met during production, creating records that can be used for PPAP submissions and ongoing quality control.

Our dedication goes beyond making great products to building partnerships. Technical advice during the planning phase keeps expensive changes to the tools from having to be made, and flexible batch production can adapt to changing demand without affecting the inventory. Being able to meet strict standards while staying competitive is shown by our direct supply ties with foreign leaders in automation and energy storage. When expertise, investment, and accountability come together in these relationships, they show that Chinese manufacturing excellence delivers world-class quality.

Conclusion

Aluminum die cast parts give real performance benefits to industrial OEMs that need to balance weight reduction, structural integrity, thermal management, and cost-effective production. Knowing the features of materials, the limits of manufacturing processes, and the rules for design optimisation helps procurement workers choose the best solutions for use in cars, factories, electrical equipment, and spacecraft. By comparing different ways of making things, you can see when die casting is the best option compared to machining, sand casting, or other materials. Choosing suppliers strategically based on their technical skills, quality systems, and combined services speeds up time-to-market and lowers supply chain risk. When you work with makers that offer a wide range of skills, you can change the way you buy parts from a transactional buying process to a collaborative engineering process that improves product performance and competitive placement.

FAQ

What advantages do aluminum die cast parts offer over machined or fabricated alternatives?

When compared to steel fabrications, aluminum die cast parts have better strength-to-weight ratios. They also eliminate the need for assembly by combining multiple features into single-cast shapes. Thermal conductivity turns housings into systems that get rid of heat, and corrosion resistance is better than that of steel that hasn't been coated. When it comes to production numbers, die casting is better than machined alternatives for large quantities because the starting cost of the tools is spread out over many units at much lower costs.

Can surface treatments enhance aluminum die-cast component performance?

Standardised salt spray tests have shown that e-coating and powder coating systems protect against corrosion for more than 1,000 hours without breaking down. These processes make the castings look more consistent and last longer in harsh environments than casts that aren't coated. Die-cast aluminum alloys can't be anodised normally because they contain silicon. This makes coating technologies the best way to protect them because they meet both functional and aesthetic needs in many industrial settings.

How do lead times compare between die casting and alternative manufacturing methods?

Initial die casting programs need 4–8 weeks to make the tools, and then production runs take 2–4 weeks. Machining, on the other hand, gets rid of the need for equipment delays but makes per-unit cycle times longer. Sand casting has average wait times and costs less to make the tools. The choice of method is based on the number of units needed and how flexible the production schedule needs to be. For established programs that make more than 1,000 units a year, die casting has the fastest output.

Partner with Fudebao Technology for Your Aluminum Die Cast Parts Requirements

Fudebao Technology has all the answers that purchasing managers and engineering teams need when they are looking for trusted providers of aluminum die cast parts. Our Zhejiang province integrated manufacturing campus blends die casting expertise with precision machining and surface treatment skills. This allows for one-stop delivery from melting the material to inspecting the final part. We are experts at making precise parts for cars, housings for industrial equipment, and electrical cases that need to be dimensionally accurate to within 0.05 mm and have quality systems that can back up PPAP entries.

Technical consulting services help make designs more workable before investing in tools, which keeps expensive changes from having to be made during production. Our range of equipment, which includes high-speed machining centers, CNC lathes, low-pressure casting machines, and automated die casting cells, lets us respond quickly to changing production needs, from testing prototypes to making a lot of them. We have direct experience supplying American companies that make automation equipment and international companies that store energy. This shows that we can meet strict quality standards while keeping costs low.

Get in touch with our technical team at hank.shen@fdbcasting.com to talk about your unique application needs and get detailed quotes that fit your expected volume and time frame. Visit fdbcasting.com to see all of our services and learn how working with an experienced aluminum die cast parts manufacturer can help you save time and money while also improving the performance and dependability of your production.

References

1. North American Die Casting Association. "Product Specification Standards for Die Castings Produced by the Semi-Solid and Squeeze Casting Processes." NADCA Technical Publication, 2021.

2. American Society for Testing and Materials. "Standard Specification for Aluminum-Alloy Die Castings." ASTM B85-19, 2019.

3. Campbell, John. "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design." Butterworth-Heinemann, 2015.

4. Kaufman, J. Gilbert and Elwin L. Rooy. "Aluminum Alloy Castings: Properties, Processes, and Applications." ASM International, 2004.

5. Sully, Anthony H. and Ernest A. Brandes. "Metallurgy of Light Alloys." Journal of the Institute of Metals Monograph and Report Series No. 24, 1967.

6. Verran, Guilherme Ourique, Ricardo Pereira Mendes, and Lirio Schaeffer. "Study of Porosity Formation in High Pressure Die Casting." Materials Research Journal, Volume 9, Issue 4, 2006.
