How to Select Low Pressure Die Castings for Complex Components?
2026-08-18
Selecting the right low pressure die castings for complex components requires careful attention to process capabilities, material properties, dimensional tolerances, and supplier expertise. Complex geometries demand controlled metal flow, consistent wall thickness, and minimal porosity—attributes where LPDC excels. Engineering managers and procurement teams should evaluate suppliers based on equipment sophistication, mold development experience, quality certifications, and proven track records in handling intricate designs. Material selection, particularly aluminum alloys like A356 and A380, directly influences strength, thermal performance, and machinability. Balancing these technical factors with cost efficiency and production flexibility ensures your components meet performance requirements while supporting long-term reliability and manufacturability.
Understanding Low Pressure Die Casting for Complex Components
A controlled metalworking method called low pressure die casting is used to pour molten metal into a fixed mold. The pressure is kept low, usually between 0.3 and 1.0 bar. This precise method is different from others because it fills the mold slowly, which reduces turbulence and air entrapment—important things to keep in mind when making complicated parts with lots of small holes and thin walls.
How LPDC Achieves Superior Mold Filling
At the start of the process, molten aluminum or magnesium alloy is kept in a sealed furnace. The furnace is linked to the mold cavity above by a riser tube. When low pressure is slowly applied to the furnace, liquid metal rises through the riser tube and fills the mold from the bottom to the top. This directed solidification pattern cuts down on flaws like shrinkage porosity and gas trapping that often happen with high-velocity injection methods. Controlled pressure keeps the metal feed steady while it hardens, making up for volumetric contraction and making sure that the dimensions stay the same even when the geometry is complicated.
Material Selection and Performance Impact
Because they are strong for their weight and conduct heat well, aluminum alloys are used most often in LPDC applications. After being heated, A356 alloy has tensile strength greater than 280 MPa, which makes it perfect for use in automotive structural parts and aerospace brackets. The A380 alloy is better at flowing in complex thin-wall shapes, but it has slightly worse mechanical performance. Aluminum has a density of 2.7 g/cm³, but magnesium alloys like AZ91D have an even lower density of 1.81 g/cm³. This makes them appealing for aerospace and defense uses where weight reduction directly affects fuel economy and payload capacity.

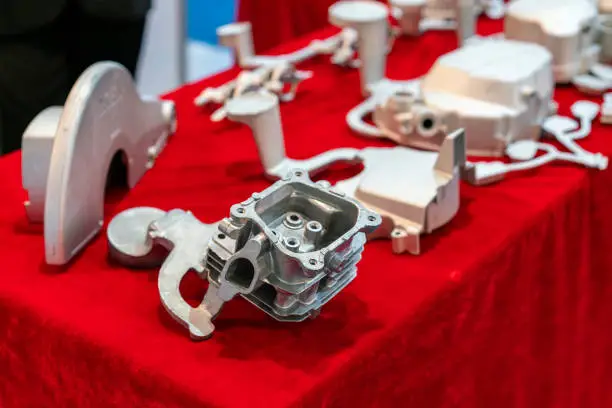

Process Advantages for Complex Geometries
Using traditional casting methods can be hard because complex parts often have different wall thicknesses, internal channels, and undercuts. This is a problem that LPDC solves by having a special mix of constant cast accuracy and controlled filling dynamics. With this method, the wall thickness can range from 2.5 mm to 15 mm within a single casting, and the dimensions can be accurate to within 0.1 mm. The surface finish quality is usually between Ra 3.2 and Ra 6.3 micrometers right out of the mold, which means that less secondary machining is needed. Because it can be shaped in different ways and has a smooth surface, LPDC is very useful for parts like electrical housings, pump bodies, and transmissions that need to meet exact specs for mounting interfaces and internal paths.
Critical Criteria for Selecting LPDC Processes and Suppliers
Defining Component Requirements and Tolerances
To start, make clear rules for the allowed variations in size, which are usually grouped into IT grades. IT8 to IT10 ranges (±0.15mm to ±0.30mm) are common for structural parts in cars, while IT7 ranges (±0.08mm to ±0.15mm) may be needed for aircraft use. Uniform wall thickness has a big effect on mechanical properties; differences of more than 20% between neighboring parts can cause weak spots and uneven cooling rates. The minimum yield strength, ultimate tensile strength, and elongation percentages should be stated in the mechanical property requirements based on the load conditions. Engine brackets and other parts that are sensitive to cyclic wear can benefit from fine-grained microstructures that can be achieved by optimizing LPDC cooling rates.
Evaluating Process Parameters and Equipment
For modern LPDC operations to work, the casting temperature, mold pressure profiles, and cycle timing must all be carefully managed. Casting temperatures for aluminum alloys are usually between 680°C and 740°C, but there are smaller ranges for complicated shapes to keep thin parts from solidifying too quickly. Applying and holding pressures directly affect the formation of defects. Too fast a rise in pressure leads to turbulence and oxide entrapment, while not enough holding pressure creates shrinkage holes. Cycle times for complicated parts range from 3 to 8 minutes, based on the type of metal and section thickness.
The technical complexity of a supplier can be seen in the tools they offer. Modern LPDC machines have programmable pressure curves and multi-stage control, which lets them fill different parts in a way that works best for them. For repeatable dimensions, it is important that automated mold temperature management systems keep the temperature stable across production runs. Suppliers who have spectrum analyzers for real-time alloy composition verification show that they care about material consistency, which has a direct effect on the dependability of mechanical properties.
Assessing Supplier Expertise and Turnkey Capabilities
Technical knowledge shows up in the form of skill in mold creation and the ability to solve math problems. Suppliers with a lot of experience should be able to show that they can use computational fluid dynamics software to simulate metal flow patterns and predict where defects might happen before they are made in real life. As part of their mold development process, they should look at Design for Manufacturing to find geometric features that make the mold less castable and suggest changes that won't cost anything extra.
Turnkey solutions make it easier to complete projects because they combine mold design, casting production, heat treatment, and precision machining into one project management system. This unified method cuts down on communication delays, makes sure that the casting and machining processes can work together in terms of size, and gives responsibility to a single source. Turnkey service providers usually have machining centers with ±0.02mm accuracy, which is needed to finish-machine important contacts and mount surfaces straight onto cast blanks.
Comparing Low Pressure Die Casting to Other Casting Methods for Complex Parts
By knowing how LPDC stacks up against other casting technologies, you can choose the best method for your needs based on production numbers, cost, and the type of part you need to make.
LPDC versus High Pressure Die Casting
In high pressure die casting, molten metal is injected at speeds of more than 50 m/s and pressures of up to 150 MPa. This makes cycle times very short, only 30 to 90 seconds. Because it is faster, HPDC is a good choice for businesses that make more than 50,000 units a year. The rough injection process traps air and causes turbulence, which leads to higher porosity levels that weaken the material's mechanical properties. The better mechanical qualities of low-pressure die castings—with elongation values 40% to 60% higher than HPDC equivalents—make them a better choice for parts that need to stay structurally sound under dynamic loads, like automobile suspension components.
LPDC can be used with heat treatment methods such as T6 aging, which increases the strength of an aluminum alloy by 25% to 35% through controlled precipitation hardening. Most of the time, HPDC parts can't go through solution heat treatment because of the risk of internal porosity growth. LPDC's directed solidification works better for complex shapes with thick sections, while HPDC's fast cooling causes internal stresses and dimensional distortion in designs with uneven wall thickness.
LPDC versus Gravity Die Casting and Sand Casting
Filling pressures below 0.1 bar are possible with gravity die casting because it only uses gravitational force to fill permanent molds. This gentle method makes parts with great mechanical properties, but it has trouble with parts with thin walls (less than 4 mm) and complicated interior spaces where the metal speed drops too quickly to fill the whole space. LPDC's active pressure aid lets designers use wall thicknesses as low as 2.5 mm while still making sure that complex shapes are fully filled in the mold.
Sand casting lets you be creative with shapes because the models can be thrown away after use. However, the surface is rough (Ra 12.5 to 25 micrometers), and the limits for size are limited to IT12 to IT14 (±0.5mm to ±1.2mm). A lot of secondary machining is needed for complex parts that need precise interfaces and mounting surfaces. This adds to the cost and the time it takes to make the part. With LPDC's permanent mold precision and better surface finish, 60% to 75% less stock is removed during machining. This means that more work gets done faster and less material is wasted.
Specialized Alternatives for Ultra-Precision Requirements
Specialized options for needs that need to be very precise include investment casting, which uses ceramic shell molds and vacuum-assisted metal delivery to get a surface finish that is very close to Ra 1.6 micrometers and measurement accuracy within the IT6–IT7 range. The process works well for small to medium production runs of up to 10,000 units per year, where the complexity of the parts justifies higher costs per unit. When near-net-shape accuracy keeps machining on hard-to-cut alloys to a minimum, aerospace parts with internal cooling channels and thin-walled structural elements often justify the higher cost of investment casting.
In vacuum die casting, the mold cavities are emptied, which lowers the amount of gas in the air and lets the metal be heated later. This mixed method blends the fast production speed of HPDC with mechanical qualities that are closer to those of LPDC. Vacuum die casting is best for parts that need to be made in large quantities and have better mechanical performance. For example, electric car motor housings are great examples of this. However, the equipment costs are 35% to 50% higher than standard LPDC setups.

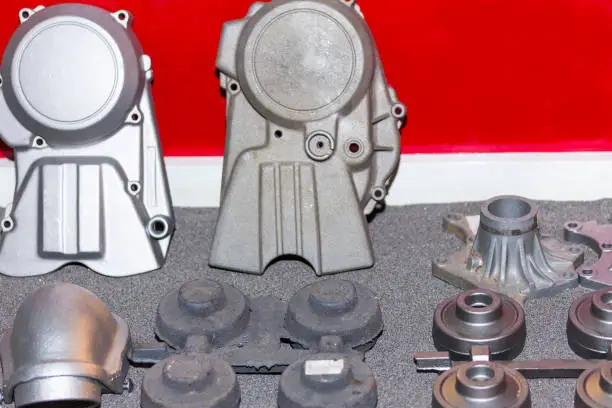

Avoiding Common Challenges and Defects in LPDC for Complex Components
Process improvement and design refinement that stop defects have a direct effect on production yield rates, the dependability of parts, and the total cost of making things. Understanding the root causes lets you come up with effective ways to fix the problems.
Identifying and Mitigating Common Casting Defects
Design Best Practices for Enhanced Castability
The basic idea behind optimizing LPDC designs is that walls should all be the same thickness. Keeping the differences in thickness below 15% between parts that are linked to each other helps keep cooling rates even and solidification patterns predictable. To keep stress from building up and flow from being slowed down, the changes between thicknesses should be smooth and gradual, with minimum angles of 3:1. Draft angles help the mold come loose and keep the surface from getting damaged when the part is ejected. For complex outside surfaces, draft angles of at least 1° to 2° are needed. Adding the right radii to the inside corners lowers stress and improves metal flow while the mold is being filled.
Quality Control and Inspection Protocols
Protocols for quality control and inspection involve non-destructive testing, which checks that an internal structure is sound without damaging the part. Using an X-ray or computed tomography to look at the radiograph shows internal porosity, shrinkage cavities, and inclusion content. Most of the time, acceptance criteria say that porosity must be Grade 2 or higher according to ASTM E155 standards. This means that individual holes must be no bigger than 1 mm in diameter, and the total porosity must be less than 1.5% by area. Coordinate measuring tools with a precision of 0.005 mm are used for dimensional checking to make sure that the product meets the tolerance requirements. Parts that need to be pressure-tight are tested for helium leaks with maximum allowed leak rates below 1×10⁻⁵ mbar·l/s.
Optimizing Procurement Strategy for Low-Pressure Die Cast Components
Strategic buying strikes a balance between scientific needs and business concerns, making sure that the quality of the parts fits within the budget and meets the delivery dates.
Understanding Cost Drivers and Obtaining Competitive Quotes
Understanding how to get competitive quotes and what causes costs is essential. Material costs make up 35% to 50% of the total cost of a component. This number changes depending on the alloy chosen and price changes in the market. Special magnesium alloys can cost up to $5.50 to $7.00 per kilogram, while A356 aluminum alloy costs around $2.80 to $3.40 per kilogram. The complexity of the part affects both the cost of the cast and the cost of making each piece. Tooling costs range from $15,000 to $30,000 for simple shapes, but mold costs over $80,000 for complex parts. To buy low pressure die castings parts, providing a lot of technical information, including 3D CAD models, specs for dimensional tolerances, surface finish needs, mechanical property goals, and annual volume forecasts, is necessary.
Evaluating Global Supplier Capabilities and Certifications
Looking at the skills and certifications of global suppliers reveals that Precision Components Corporation has both aerospace AS9100 certification and automotive IATF 16949 compliance. This shows that their quality system is strict enough for demanding uses. Their LPDC facilities have Ryobi LPD series machines with automated ladling systems and real-time pressure monitoring. These machines help make complex parts while giving them better control over the process. Magna International uses vertical integration to combine casting operations with a wide range of machining capabilities across its North American facilities. KITZ Corporation has decades of experience in thin-wall LPDC technology and pressure-tight casting production, which they use to make complicated valve bodies and fluid control parts.
Leveraging Small Batch and Custom LPDC Services
Suppliers with flexible minimum order quantities are good for making prototypes and small batches of products. Custom low pressure die casting services can handle as few as 50 units and as many as 200 units. They do this by using modular mold bases and simpler core designs to make the best tools. This method lowers the initial cost of the tools by 40% to 60% compared to full production molds, but the accuracy of the dimensions is still high enough for functional testing and early production needs. Engineering support, mold development, casting production, finishing operations, and quality documentation are all coordinated by turnkey project management. This combined method is shown by Zhejiang Fudebao Technology, which uses low-pressure die casting machines, high-speed machining centers, and CNC lathes to make parts from molten metal all the way through to finished pieces.
Conclusion
FAQ
What factors most significantly influence LPDC component quality?
The main things that determine quality are the process control factors, such as the pressure application rates, the casting temperature management, and the thermal stability of the mold. The purity of the material affects its mechanical qualities. To make sure uniform performance, alloy compositions must be controlled within ±0.5% error ranges, and hydrogen content must be less than 0.15 ml/100g. Quality of the mold design affects both the accuracy of the dimensions and the number of defects that appear. For example, better gating systems and progressive solidification processes can cut down on porosity and cold shuts. First-pass yield rates and dimensional conformance are directly related to how well a supplier handles complex geometries.
How does LPDC cost efficiency compare across different industries?
Comparing the cost-effectiveness of low-pressure die castings in different fields reveals that for more than 10,000 units per year, automotive applications benefit from striking a good balance between mechanical properties and production rates. It also has 15% to 25% lower costs than investment casting and better properties than HPDC. For aerospace parts, the higher cost per unit of LPDC is worth it because forgings take a lot of cutting, while near-net-shape casting cuts material waste by 60% to 75%. LPDC is used in industrial machinery for pump housings and gearbox parts because it is durable and doesn't melt in hot temperatures.
What typical lead times apply for small batch LPDC orders?
How long does it usually take to get a small batch of low pressure die castings? From the time the design is approved until the first item is made, prototype tooling development takes between 6 and 10 weeks, depending on how complicated the parts are and what the core requirements are. After the approval of the tools, the first production runs of 100 to 500 units are usually delivered within 3 to 5 weeks. Lead times are longer with full production molds (12 to 16 weeks), but they allow for bigger batches to be made with faster cycle times and better physical stability for ongoing supply needs.
Partner with Fudebao Technology for Expert Low Pressure Die Casting Solutions
Zhejiang Fudebao Technology is the company to work with for expert low pressure die casting solutions. We have specialized knowledge in casting aluminum alloys, copper alloys, and stainless steel, and we can also provide precise machining services for aerospace, automotive, and industrial equipment applications worldwide. Our integrated manufacturing approach covers the complete process flow, from melting and casting to finishing and surface treatment. This allows us to deliver parts from blanks to finished components in one place, with dimensional accuracy up to ±0.05mm.
Equipped with advanced low pressure die casting tools, high-speed machining centers, and CNC lathes, we are capable of producing complex part geometries while meeting strict quality standards for automotive precision components and specialized equipment housings. As a reputable low pressure die castings company recognized for technical expertise and reliable manufacturing capabilities, we invite engineering managers, sourcing directors, and procurement teams to explore customized solutions tailored to their exact component requirements. For more information or to discuss your project needs, please contact our team at hank.shen@fdbcasting.com.
