Advantages and Disadvantages of Aluminum Die Casting

When it comes to industrial procurement, aluminum die casting is a revolutionary way to make things that offers both great possibilities and specific limits. This high-pressure metal making process makes parts that are very accurate in size and structure, but it needs careful thought about the costs of the tools, the number of parts that need to be made, and the materials that should be used. When engineering teams and sourcing workers understand these trade-offs, they can make strategic choices that meet project requirements, budget limits, and long-term supply chain goals in industries like automotive, aerospace, electrical, and industrial machinery.

Understanding Aluminum Die Casting

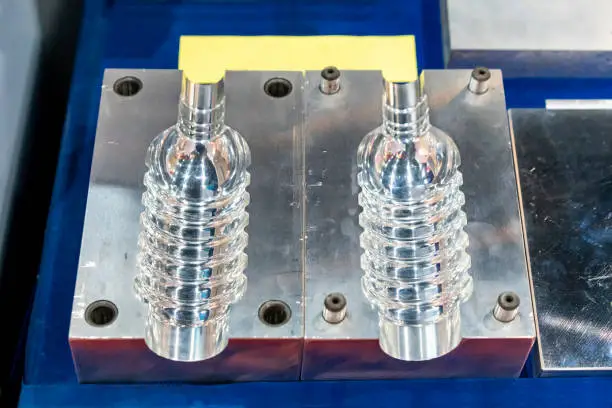

When you use high pressure—usually between 1,500 and over 30,000 psi—to push molten metal into hardened steel molds, you can make complicated parts that are exactly the right size. This High-Pressure Die Casting (HPDC) method makes features that are very clear and surfaces that are smooth, so you usually don't need to do any extra finishing. The first step in the process is mold preparation, which involves heating precision-machined dies to the right temperature. The die hole is then filled with a fast flow of molten aluminum metal that has been heated to about 1,200°F (650°C). Within seconds, rapid cooling hardens the metal, and then ejector pins pull the final part out of the mold.

Aluminum's unique qualities give it many benefits. Its density of about 2.7 g/cm³ makes it very strong for its weight, and its thermal conductivity of 96 to 120 W/m·K makes it very good at getting rid of heat. The oxide layer that forms naturally on metal surfaces makes them resistant to corrosion. Anodizing or powder coating processes can make these properties even better. A380, ADC12, and AlSi9Cu3 are common alloys used in production. Each one is designed to perform in a certain way, such as being flexible during casting, having high mechanical strength after solidification, or not melting when heated and cooled again and again.

This method has better tolerances for size than sand casting; it can often reach ±0.05mm precision without any extra cutting. aluminum die casting is better than magnesium die casting because it is less likely to rust and stays stable at high temperatures. Aluminum parts are much more hard and resistant to temperature changes when compared to plastic injection molding parts. These mechanical traits are very important for B2B buyers who want to make decisions based on quality stability, scalability, and cost control over long production runs. The process follows strict rules set by the North American Die Casting Association (NADCA) and ISO 9001 quality management guidelines. This makes sure that the process can be repeated millions of times.

Advantages of Aluminum Die Casting

High Dimensional Accuracy and Superior Surface Finish

The high-pressure injection method makes parts that are very stable in terms of their dimensions and have a very smooth surface. Every part comes from the die with limits of ±0.05mm to ±0.1mm and a surface roughness number of between 1.6 and 3.2 micrometers Ra. This level of accuracy cuts down on or gets rid of the need for extra machining, which speeds up production runs and lowers the cost of making each unit. Die-cast parts are liked by engineering teams because they stay the same size across production runs. This makes assembly easier and lowers the number of parts that are rejected by quality control.

Exceptional Strength-to-Weight Ratio

Aluminum alloys have mechanical qualities that make them perfect for making industrial parts that are light but strong. Because aluminum has a specific gravity about one-third that of steel or zinc, aluminum die casting parts make the whole system much lighter without losing strength. In the automotive industry, this property is very important because every kilogram that is taken makes cars use less gas and electric cars have longer ranges. This benefit is also used by aerospace engineers to stick to strict weight limits while keeping the load-bearing capacity needed for flight-critical parts.

Cost-Effectiveness Through Economies of Scale

When a lot of things need to be made, production efficiency becomes clear. Compared to CNC cutting or forging, the high output is made possible by the short cycle times (30 to 90 seconds per part). Investing in tools is spread out over tens of thousands or millions of parts, which greatly lowers the cost per unit in big production runs. The near-net-shape feature cuts down on material waste and machining time, which is very good for car tier-1 suppliers who handle yearly amounts of more than 100,000 units.

Excellent Thermal and Electrical Conductivity

Because of the way aluminum is naturally made, die-cast parts are very useful in situations where heat needs to be removed or where electrical performance is needed. Thermal conductivity values between 96 and 120 W/m·K make it possible to handle heat well in 5G communications infrastructure, where base station heat sinks need to get rid of the heat that high-speed electronics produce. In green energy systems, where efficient current flow and electromagnetic shielding are important performance factors, electrical conductivity also helps power equipment housings and motor parts.

Support for Complex Geometries and Integrated Features

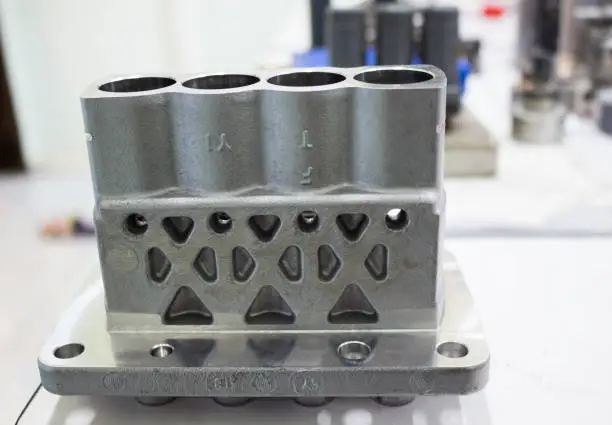

Designers can add complex features, thin walls (down to 1.5 mm), internal pathways, mounting bosses, and fastening points directly to cast parts using the high-pressure injection method. This feature gets rid of the need for welding or mechanical fastening on multi-part systems, which cuts down on assembly time and possible failure spots. Engineers can make parts that are made as a single unit but have ribs built in to strengthen the structure, cooling fins built in to move heat around, or complex interior cavities built in to route fluids.

Disadvantages of Aluminum Die Casting

High Initial Tooling Costs

Die making requires a big investment up front. The cost can be anywhere from tens of thousands to hundreds of thousands of dollars, based on how complicated the parts are and how long the die needs to last. The equipment made of sharpened steel has to be able to handle high pressures and changes in temperature over production runs that could last more than a million shots. This need for cash makes it hard to do small-batch production or rapid prototyping, since the prices of the tools can't be spread out over a large enough amount. Even though they cost more per unit, engineering teams that look at low-volume projects (usually less than 1,000 to 5,000 units) often decide that sand casting or CNC cutting is the better option.

Quality Control Challenges

The high-velocity filling process can make mistakes that need very careful process management and checking rules. Porosity happens when gases get stuck in metal as it hardens, leaving holes inside that weaken its strength and ability to keep pressure out. If you don't handle cooling properly, you can get shrinkage flaws like uneven dimensions or depressions on the surface. Cold shuts happen when different metal lines don't join together properly, leaving weak spots in the casting. For these problems to be solved consistently, the injection speed, die temperature, opening design, and cooling rates need to be carefully controlled. To do this, you need skilled process engineers and strong quality systems.

Part Size and Thickness Limitations

Material flow limits put real-world limits on the sizes of parts and the changes in wall thickness. Die casting tools can only clamp and pour a certain amount of material, so the largest part they can make is limited. Most high-pressure aluminum die casting machines can work with parts that are less than 2,500 square centimeters and weigh less than 10 kilograms, but some machines are designed to work with bigger parts. Thin-wall parts use materials more efficiently but are harder to fill, and thick sections can have holes and take longer to cool down. Because of these limitations, the process isn't as good for making very big structural parts or heavy industrial casts, where sand casting or forging are better options.

Alloy Limitations and Material Constraints

When it comes to high-pressure aluminum die casting, not all aluminum metals work the same way. For this process to work, the metals need to be very fluid when they are molten so they can fill complex die holes before they harden. High-strength metals that have a lot of copper or magnesium in them may be harder to make or more likely to crack when heated. Heat-treatable metals, like A356, are often used in low-pressure permanent mold casting. However, they are hard to use in high-pressure situations because they take longer to solidify and have a higher risk of porosity. Choosing the right material is an important engineering task that requires weighing factors like cost, castability, rust resistance, and mechanical qualities.

Energy Consumption and Environmental Impact

To melt metal, keep die temperatures stable, and run hydraulic systems that create high pumping pressures, a lot of energy is needed. When thinking about the environment, you should think about how much energy production uses and how to handle die oils, coolants, and metal waste streams. Teams that buy things that are good for the environment are looking at providers more and more based on how well they use energy, recycle metal, and follow environmental management standards like ISO 14001. In addition to standard quality and shipping performance measures, these factors make it harder to choose a supplier.

Making the Right Choice for Your Business

Evaluating Production Volume and Design Complexity

Choosing the right manufacturing process requires carefully matching a number of factors that affect each other. Production rate is the most important thing to think about. High-pressure aluminum die casting is a great option when you need more than 5,000 to 10,000 units a year because you can amortize the cost of the tools to get low costs per unit. In the same way, design complexity affects process choice. The accuracy and near-net-shape ability of die casting makes it good for parts with complicated shapes, thin walls, integrated features, or tight tolerances. For projects that need to make quick prototypes or small batches, sand casting, CNC machining, or 3D printing may be more cost-effective because they don't require large investments in tools.

Comparing Alternative Manufacturing Methods

A close look at rival methods makes sure that the best cost and lead time performance is achieved. Magnesium die casting has an even lower density than aluminum, but it costs more to make and is more likely to rust. Zinc die casting is better at flexibility and has tighter standards, but it is a lot heavier. Plastic injection molding makes parts lighter and cheaper, but they aren't as strong or resistant to high temperatures as metal. Forging has great mechanical qualities because the grains are aligned, but it can't be shaped in different ways like casting can. CNC cutting lets you make any shape you want and doesn't cost anything for the tools you use. However, it gets too expensive for high-volume production because of wasted materials and longer cycle times.

Supplier Selection Criteria and Quality Assurance

Picking the right process is just as important as picking the right production partner. Suppliers must keep their quality control systems in line with industry standards by getting certifications like ISO 9001, IATF 16949 for cars, and AS9100 for aerospace. Teams in charge of buying things should look at a company's production skills, such as its machine tonnage capacity, in-house finishing operations, testing equipment, and engineering support services. Inventory management and production schedules are both affected by minimum order amounts, lead times, and the dependability of deliveries. References from customers and a stable financial situation can help you figure out if a partnership will work in the long term.

When you work with a dependable provider like Zhejiang Fudebao Technology, you lower your buying risks because they can do everything in-house, including melting, casting, CNC machining, and surface treatment. We have high-speed machining centers, CNC lathes, low-pressure casting machines, and die casting machines that weigh between 280 and 1,250 tons. This means that we can deliver anything from a blank to a finished part all in one place. Maintaining tolerances of ±0.05mm meets the strict needs of precise parts for cars, medical device housings, and aircraft structural elements. This complete set of skills makes managing the supply chain easier, lowers the variation in quality between steps in the process, and cuts down on total wait times.

Conclusion

Precision, production efficiency, and the unique properties of the material used in aluminum die casting make it an essential tool in the automotive, aircraft, industrial, and electrical fields. When there are enough parts to justify buying tools and the plans use the process's geometric freedom and accuracy, it works very well. By knowing what can be done and what can't be done, engineering teams can make decisions that improve quality, cost, and delivery performance. These benefits are amplified by strategic supplier relationships, which offer unified manufacturing knowledge, quality control procedures, and quick customer service throughout the lifecycle of a product.

FAQ

How does the cost and accuracy of aluminum die casting compare to sand casting?

The tolerances for high-pressure aluminum die casting are usually ±0.05mm to ±0.1mm, while the tolerances for sand casting are ±0.5mm to ±1.5mm. The surface finish quality is much better, and cutting processes that are needed for sand-cast parts are often not needed at all. When you make a lot of dies, the upfront cost of the tools is high, but the cost per unit is low. On the other hand, when you make a lot of sand castings, the upfront cost of the tools is low, but the cost per piece is higher because the cycle times are longer and more finishing needs to be done. Depending on how complicated the parts are and how many secondary processes are needed, the break-even number is usually between 1,000 and 5,000 units.

What are typical production lead times from order to delivery?

Lead times are different for each job, but they tend to follow regular trends. It takes eight to twelve weeks to create, machine, and test new production dies for new tools. For measurement inspection, material tests, and process capability studies, the first samples and PPAP paperwork add another two to four weeks. Once the tools are approved and production starts, the lead time for making something can be anywhere from two to six weeks, based on the number of orders, the level of finishing needed, and the current production plans. Lead times are cut down by a lot when repeat orders use current tools. From order confirmation to shipment, it only takes two to four weeks.

Why is it important to choose an aluminum die casting provider that has certifications like ISO 9001?

Quality management system certifications are proof that sellers keep processes written down, inspection tools calibrated, staff trained, and methods for ongoing growth. ISO 9001 sets basic quality standards that can be used in any industry. IATF 16949, on the other hand, adds requirements for the approval of production parts, their traceability, and risk management that are special to the car industry. Aerospace requirements for design control and handling of non-conforming materials are built into AS9100. These certifications lower the risk of procurement by making sure that sellers can regularly deliver parts that meet specs, keep good records, and handle quality problems in the right way. They also make it easier to do checks of the supply chain and follow the rules in safety-critical uses.

Partner with Fudebao Technology for Precision Aluminum Die Cast Components

Zhejiang Fudebao Technology offers a wide range of metal casting and precision cutting services for uses in aircraft, industrial equipment, and cars. As a reliable aluminum die casting company, we use cutting-edge tools and strict quality control systems to make parts that meet PPAP documentation, IATF 16949 standards, and the engineering needs of each individual customer. Our combined center does melting, casting, CNC machining, and surface finishing all under one roof. This makes sure that the dimensions are accurate to within 0.05 mm and gets rid of the problems that come up when you have to work with different vendors. Email our engineering team at hank.shen@fdbcasting.com to talk about the details of the parts you need, get expert advice on how to make your designs better, and get full quotes that help you reach your procurement goals.

References

North American Die Casting Association. (2021). Product Specification Standards for Die Castings Produced by the Semi-Solid and Squeeze Casting Processes. NADCA Technical Publications.

Kaufman, J. G., & Rooy, E. L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.

Beeley, P. R., & Smart, R. F. (1995). Investment Casting. The Institute of Materials, London.

Davis, J. R. (Ed.). (1993). Aluminum and Aluminum Alloys. ASM Specialty Handbook, ASM International.

Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design (2nd ed.). Butterworth-Heinemann.

Jorstad, J. L., & Apelian, D. (2009). Pressure-Assisted Processes for High-Integrity Aluminum Castings. International Journal of Metalcasting, 3(2), 19-38.
